Model: ALRU50D4LED3535RW
Diameter: 50x50mm
Height: 7.52mm
Angle: 16.5x21.1°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Railway Lighting
1. it delivers uniform light distribution.
2.It effectively eliminates dark spots and ensuring comprehensive illumination of railway tracks and surrounding areas.
3. This enhances safety for nighttime operations and train travel.

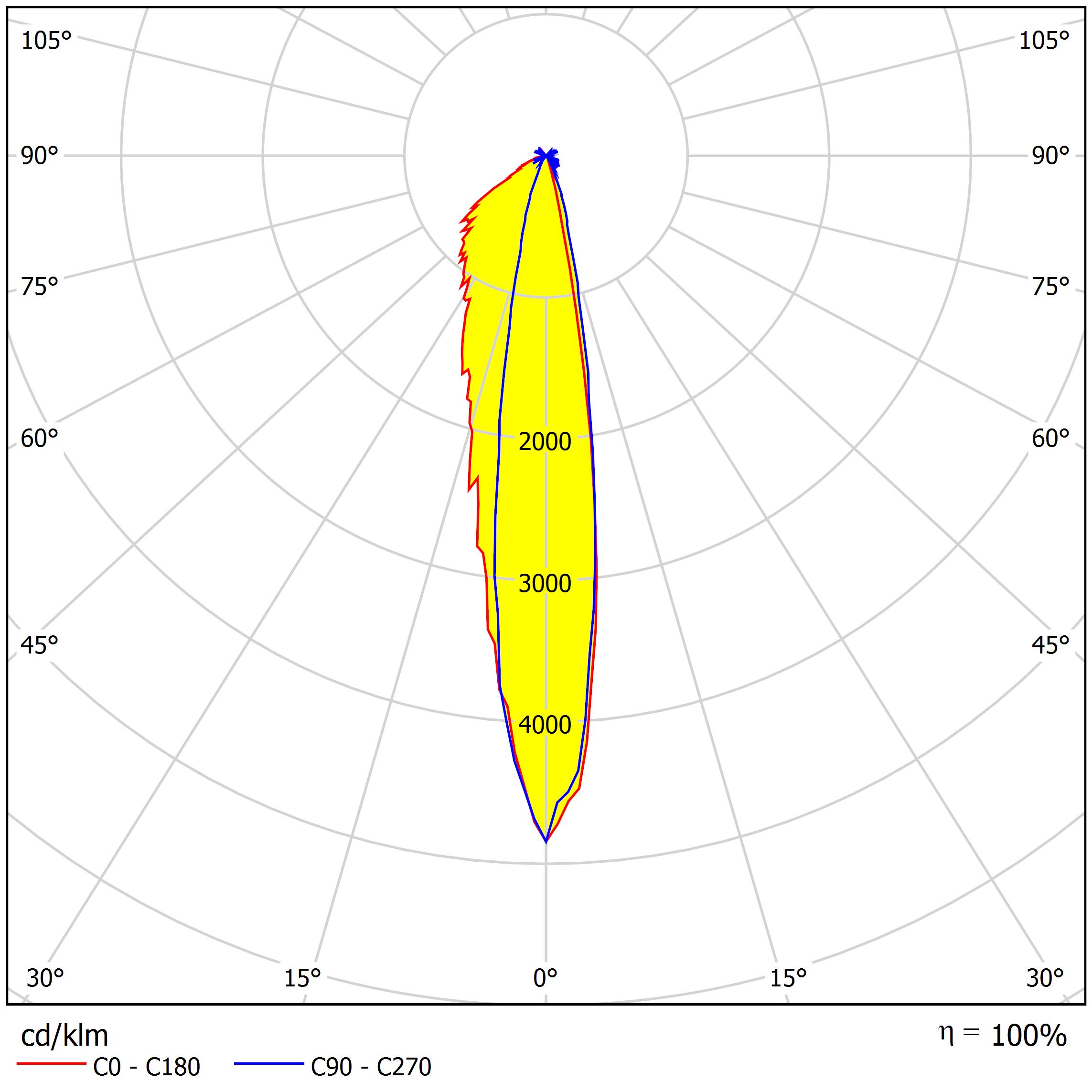

Distribution
Specifications
| Model: | ALRU50D4LED3535RW |
| Diameter: | 50x50mm |
| Height: | 7.52mm |
| Angle: | 16.5x21.1° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 3535 LED |
| Lighting applications | Railway Lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. it delivers uniform light distribution.
2.It effectively eliminates dark spots and ensuring comprehensive illumination of railway tracks and surrounding areas.
3. This enhances safety for nighttime operations and train travel.
