Model: ALHB241D72LED60G,90G
Diameter: 241mm
Height: 10.8mm
Angle: 60°,90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3535/ 5050LED

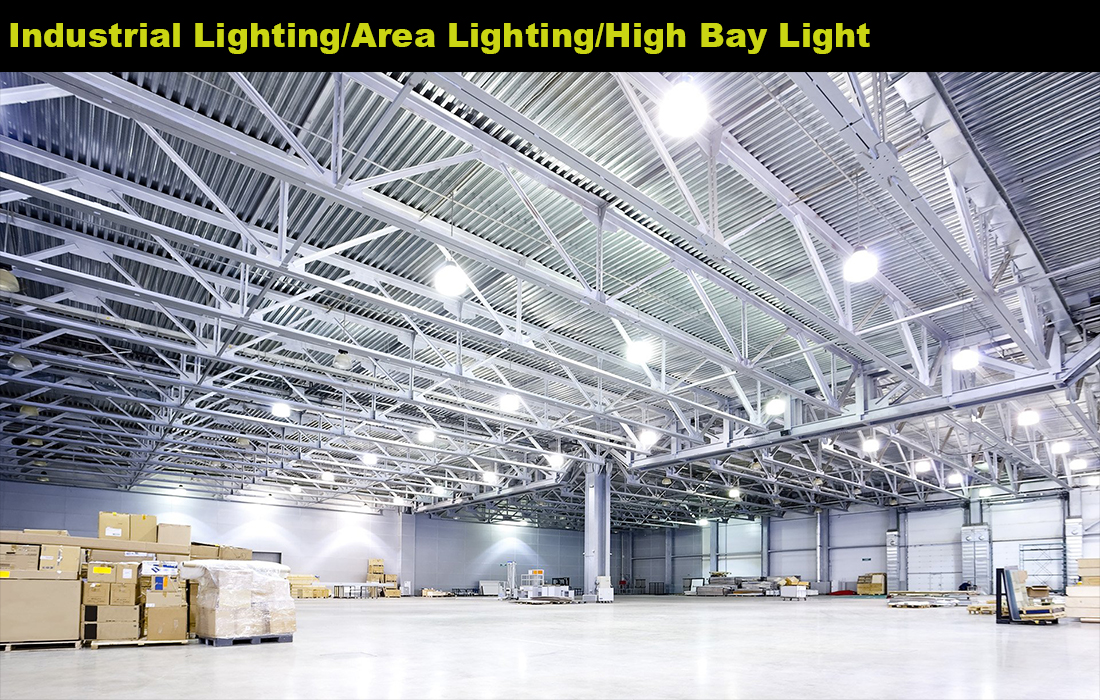

Lighting Applications: High Bay Lighting, Area Lighting
1.The 72LEDs UFO lens is designed to work specifically with 150W mid-power, which is a popular choice for high bay lighting due to its balance between efficiency and cost-effectiveness.
2.Mid-power LEDs offer a good balance between light output and energy consumption, making them suitable for a wide range of applications.

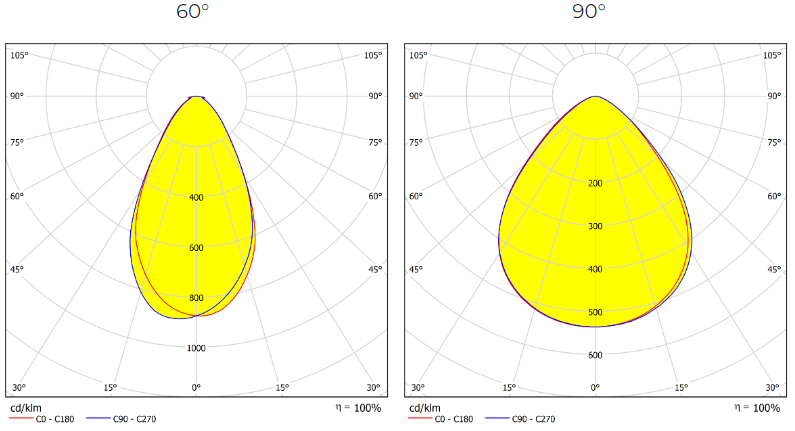

Distribution
Specifications
| Model: | ALHB241D72LED60G,90G |
| Diameter: | 241mm |
| Height: | 10.8mm |
| Angle: | 60°,90° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3535/ 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB241D72LED60G,90G lens 3D drawing.STP

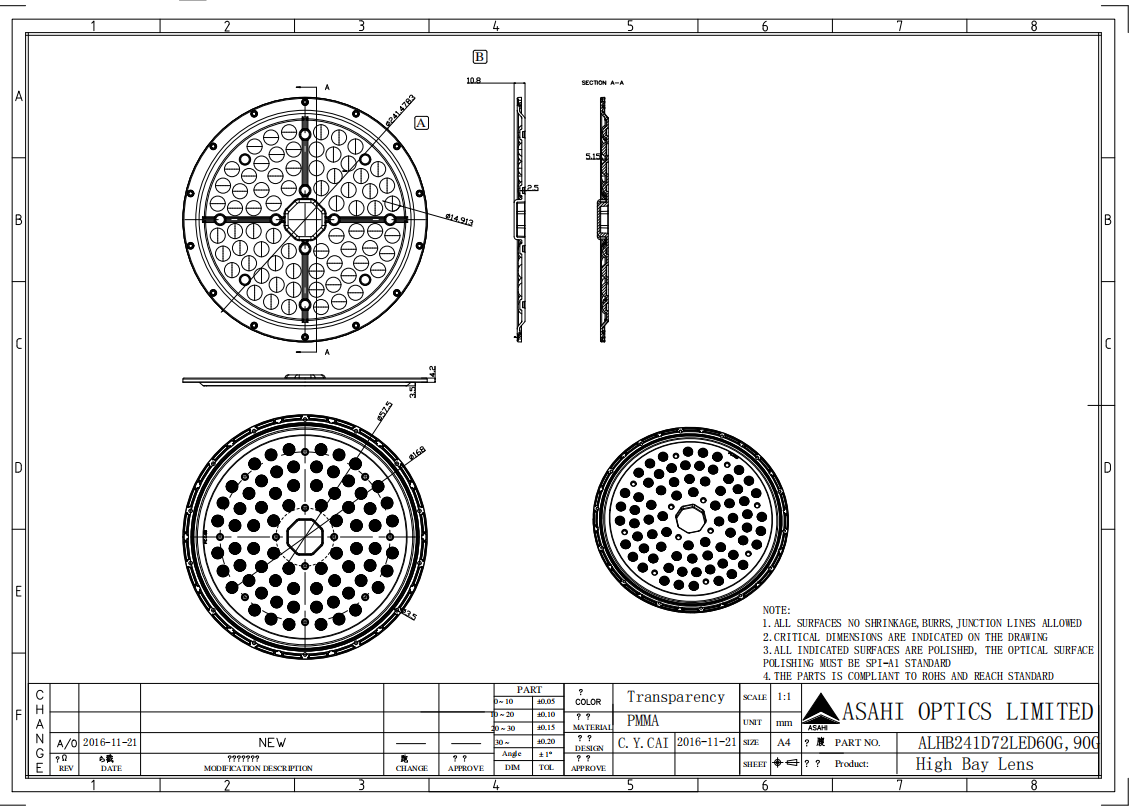

ASAHI OPTICS ALHB241D72LED60G,90G.dwg Drawing
ASAHI OPTICS ALHB241D72LED60G,90G.pdf Drawing
ASAHI OPTICS ALHB241D72LED60G lens IES.ies
ASAHI OPTICS ALHB241D72LED90G lens IES.ies
