Model: ALST173D12LED5050T3M

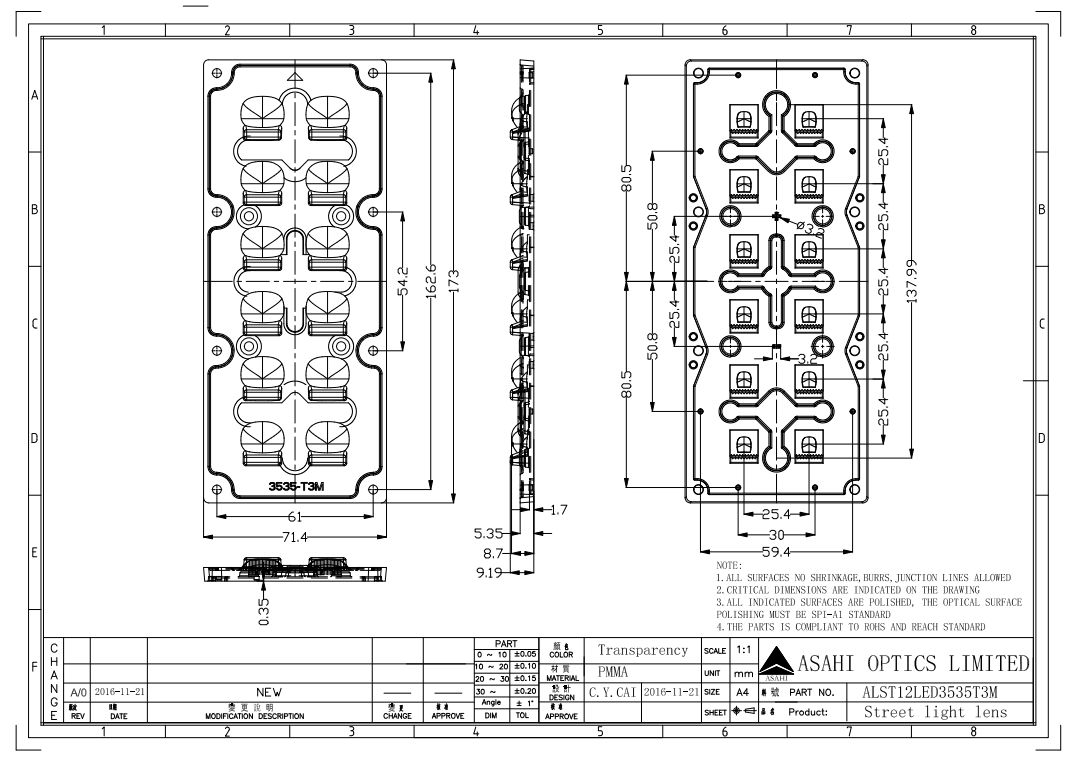

Diameter: 173.0mm+71.4mm
Height: 9.38mm

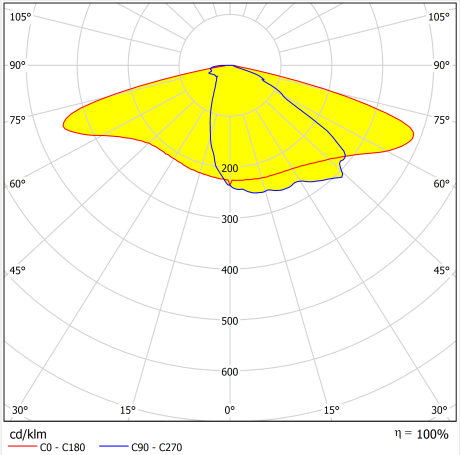

Angle: T3M Asymmetric
Material: PMMA
Transmittance: >93%
LED Type: "5050" LED

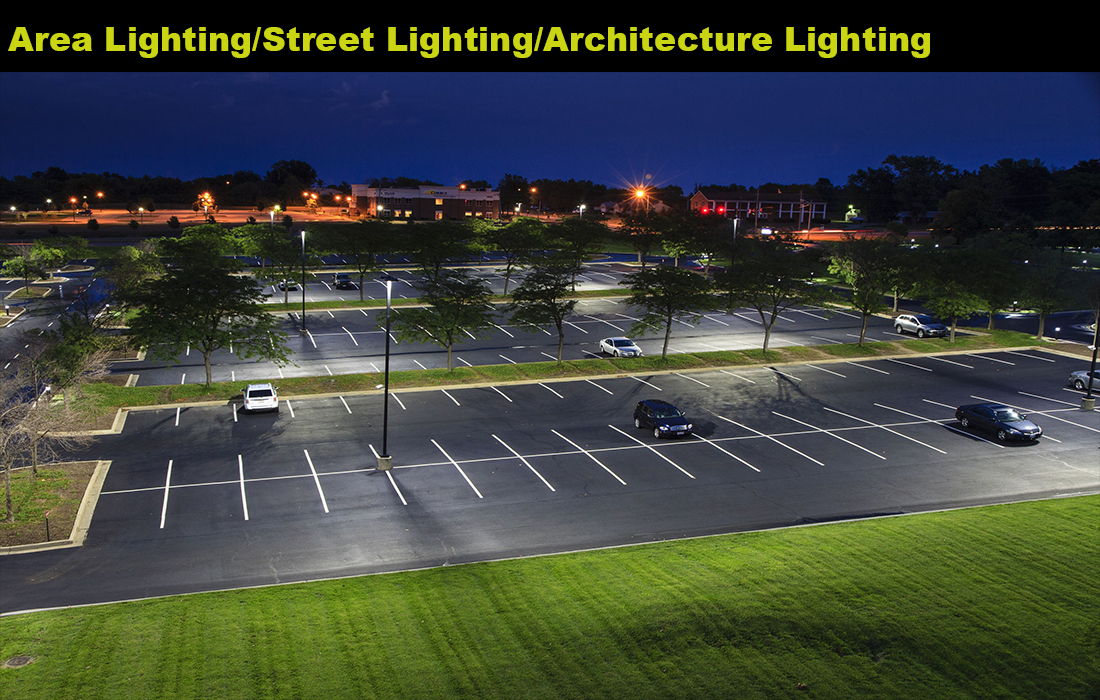

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 2x6 TypeIII-Medium beam angle provides uniform coverage on roadways and public spaces, enhancing visibility and safety.
2. This lens is made of high quality PMMA material,excels in light transmission efficiency.
3. With an IP66 rating, providing excellent protection against dust and water ingress, making it suitable for various challenging environments.
| Model: | ALST173D12LED5050T3M |
| Diameter: | 173*71.4mm |
| Height: | 9.38mm |
| Ange: | T3M Asymmetric |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | "5050" LED |
| Lighting applications | Street lighting |
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
