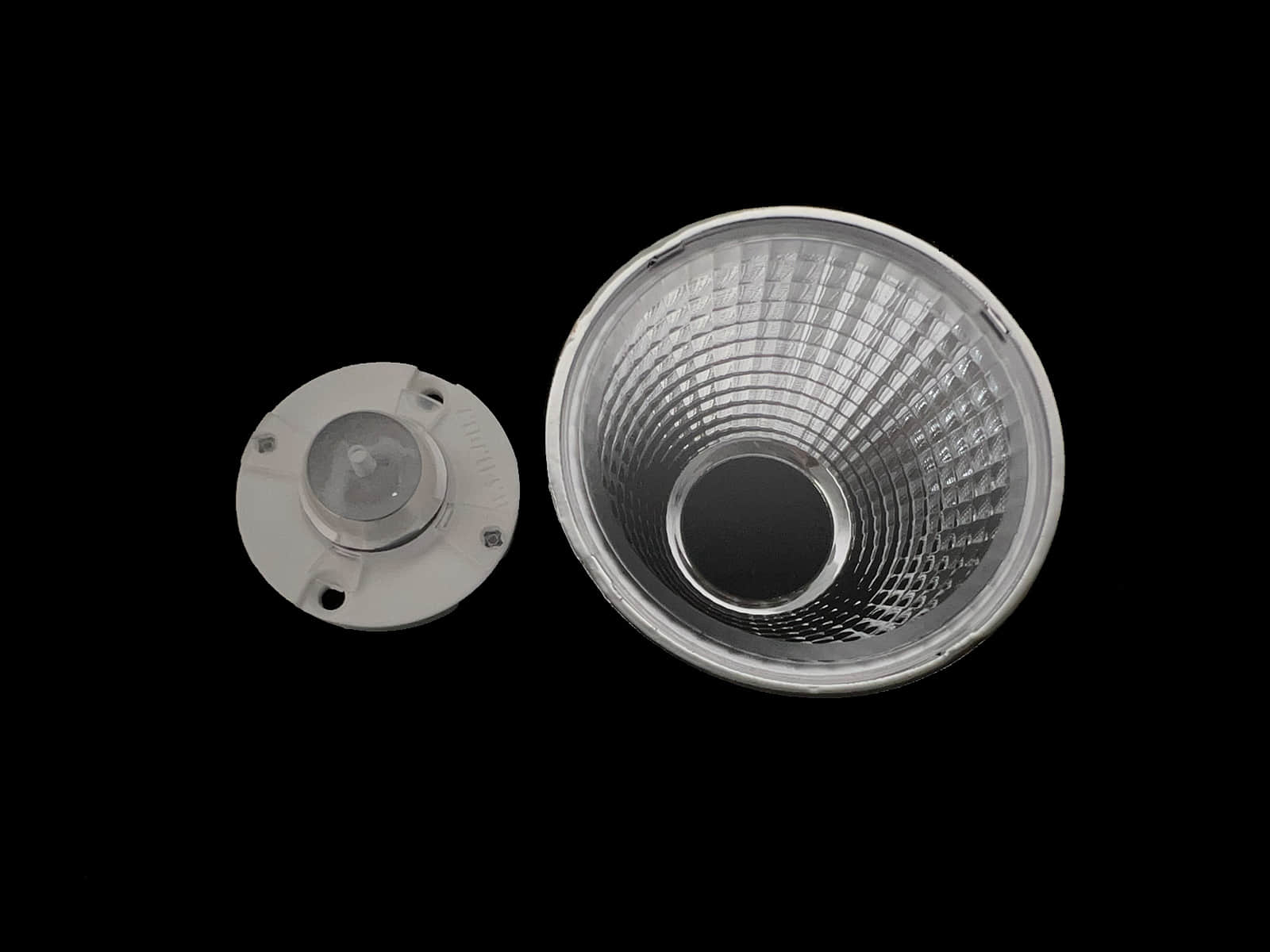

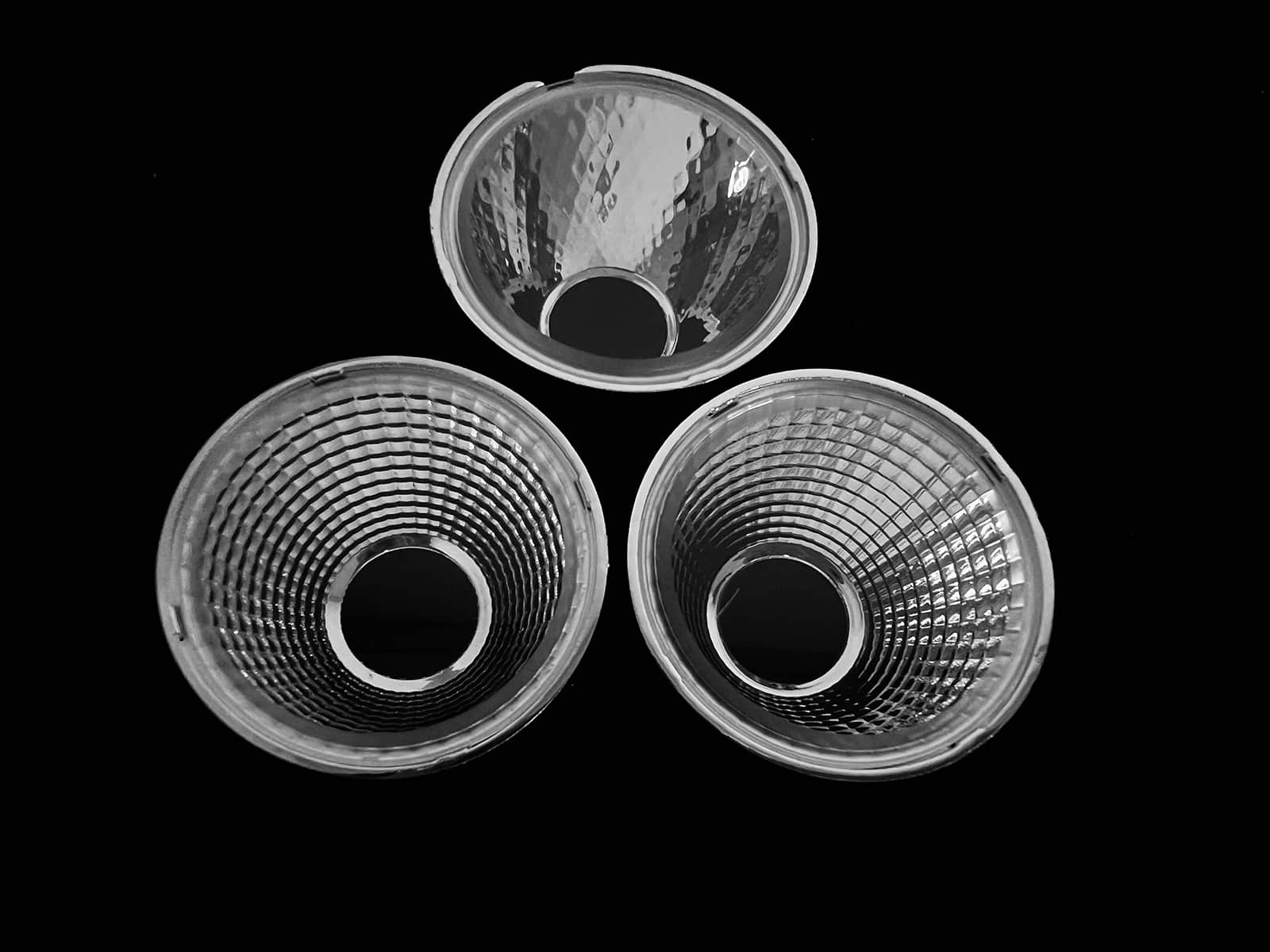

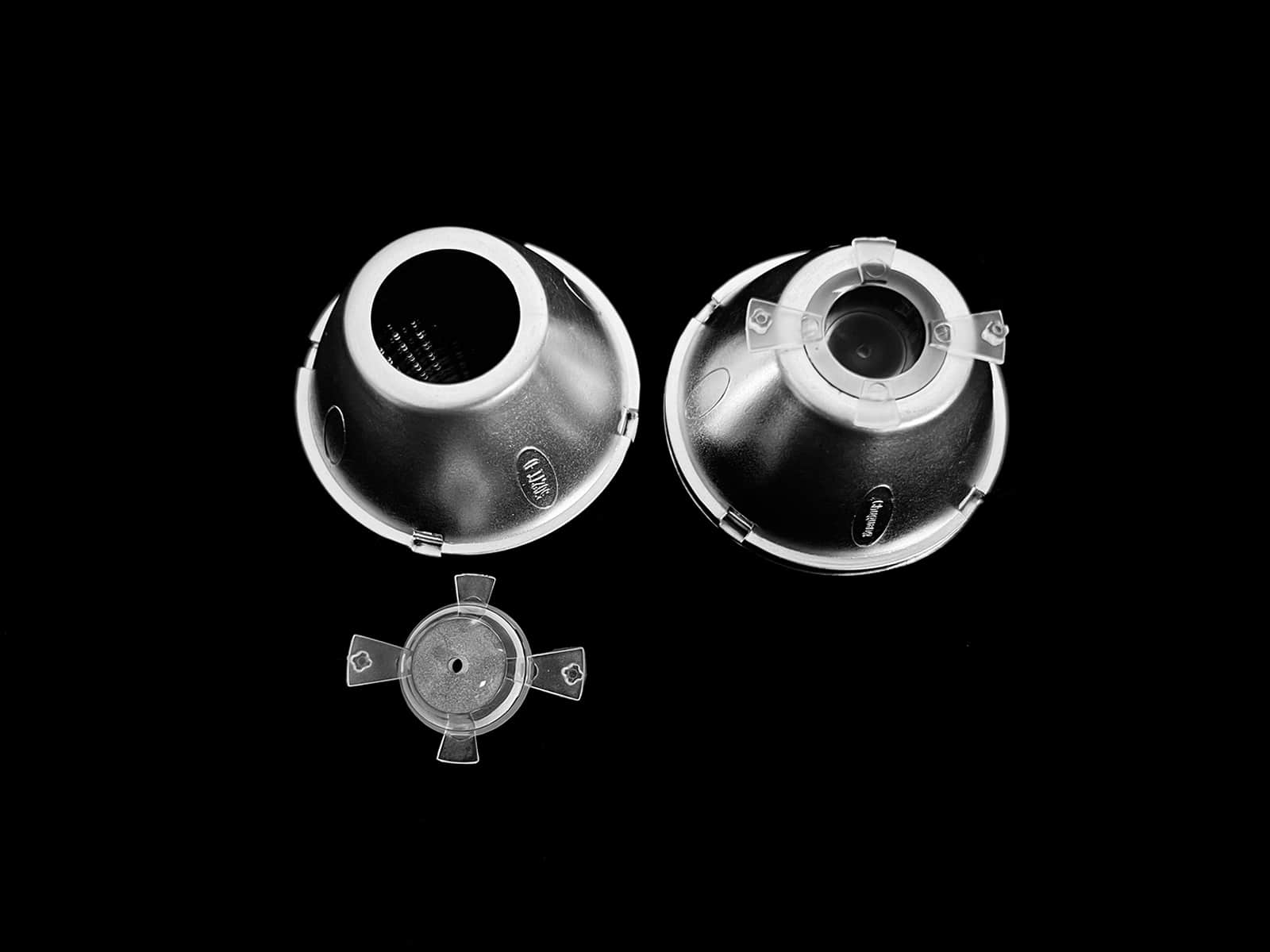

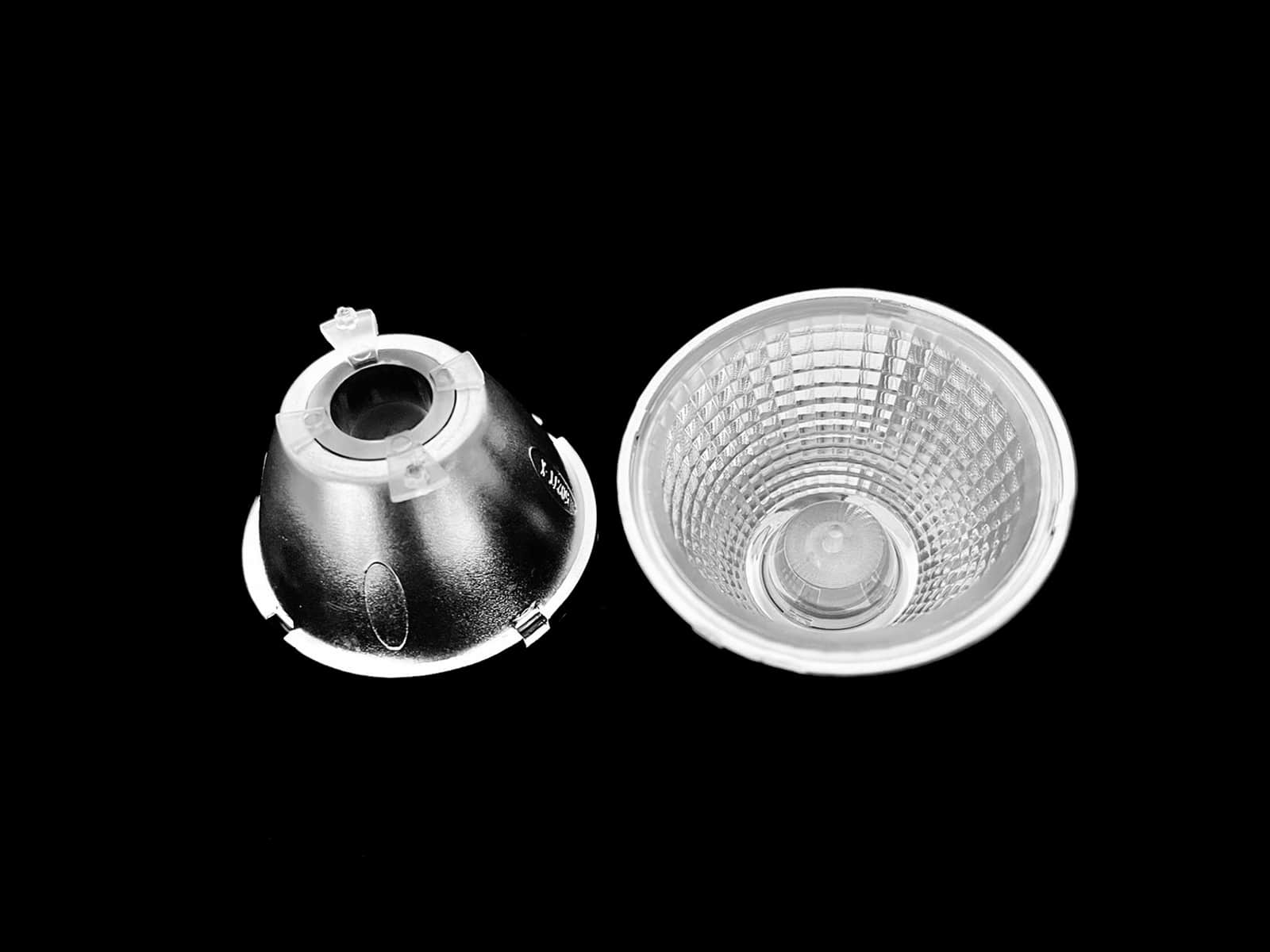

Model: AR5027T

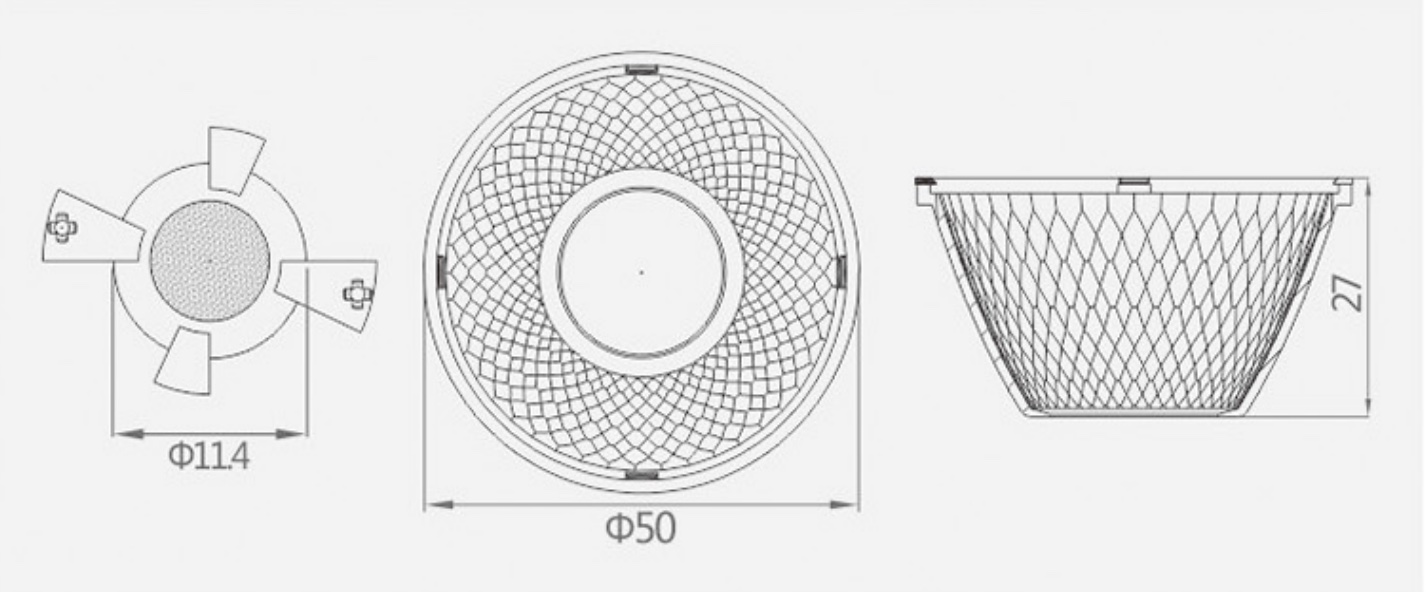

Diameter: 50mm, 18.7mm
Height: 27mm
Angle: 15°, 24°, 36°
Material: PC+Aluminum Coating
Transmittance: >88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

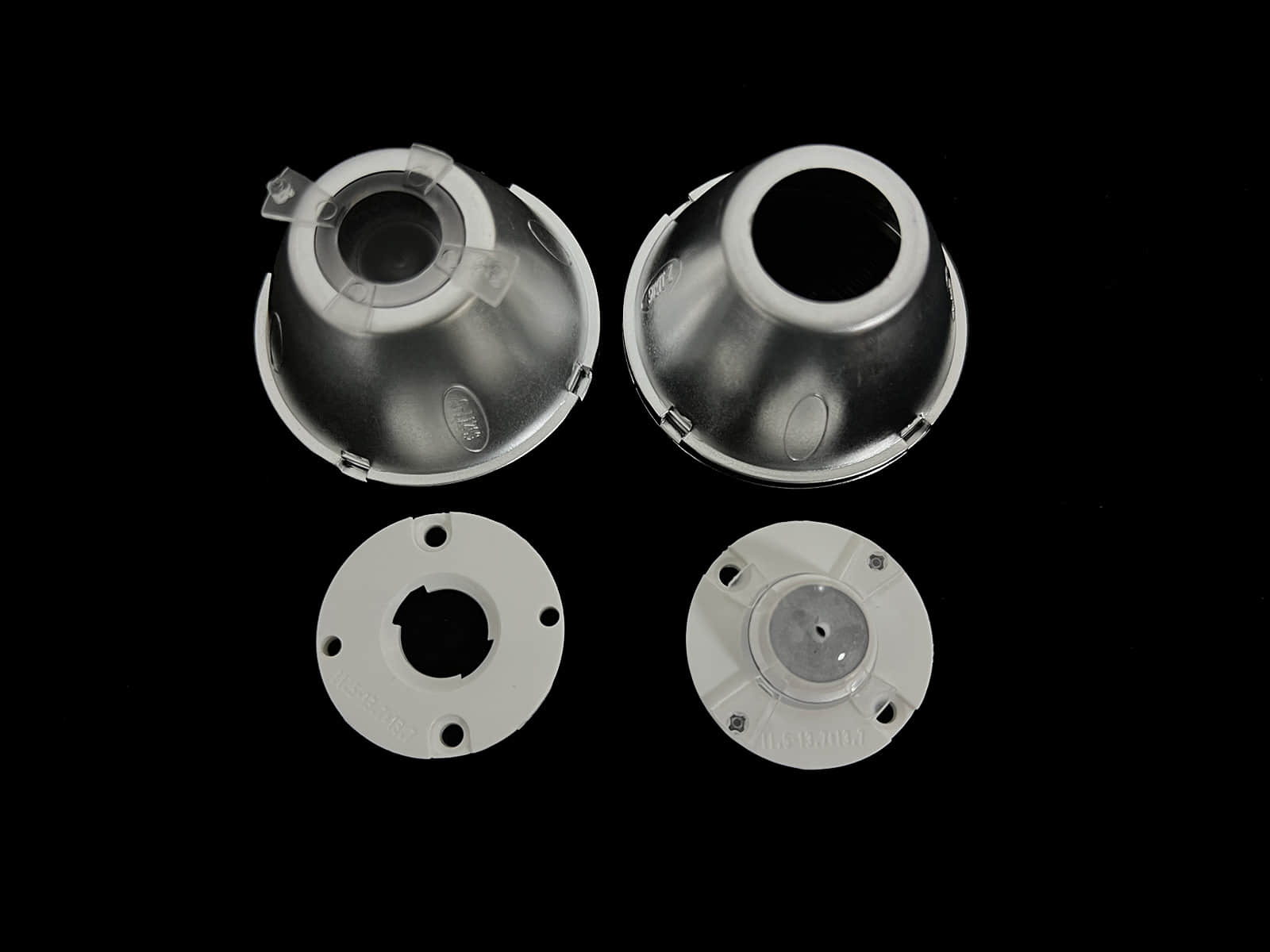

1, 50mm Aluminum LED Reflector For Spotlight Lamp, COB lenses are used to precisely control the light emitted by the COB LED.
2, COB LED reflectors are employed for accentuating specific features in outdoor landscapes, such as trees, sculptures, and architectural elements. The reflectors can create dramatic lighting effects, highlighting the beauty and uniqueness of these elements during nighttime or low-light conditions.

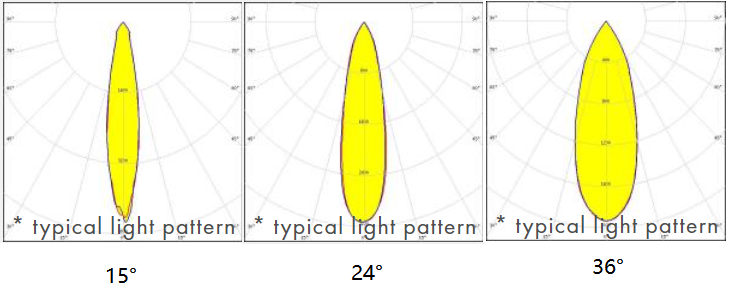

Distribution
Specifications
| Model: | AR5027T |
| Diameter: | 50mm, 18.7mm |
| Height: | 27mm |

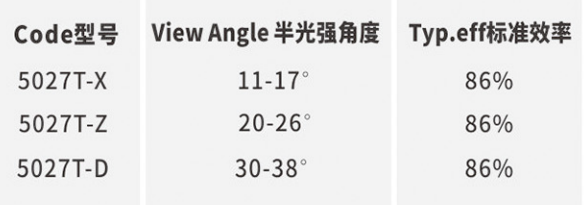

| Angle: | 15°, 24°, 36° |
| Material： | PC+Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

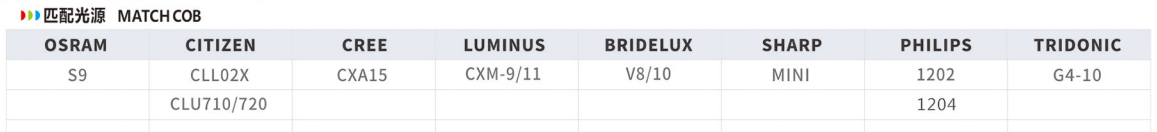

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
