Model: AJST50D4LED2050G
Diameter: 50x50mm
Height: 11.2mm
Angle: 20x50°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Street lens ,High bay lens
1.Precise Light Distribution: Oval optical design provides an asymmetric beam angle of 20°x50°, ensuring efficient area illumination coverage. Ideal for warehouses, factories, parking lots, platforms, and other scenes requiring directional wide-angle lighting.
2.High-Transmittance PMMA Material: Over 92% light transmission, precise light control, minimized light loss, and uniform light distribution with reduced glare.
3.Durable & Anti-Aging: UV-resistant, high-temperature endurance (-40℃~80℃), no yellowing or deformation over time, suitable for harsh industrial environments.

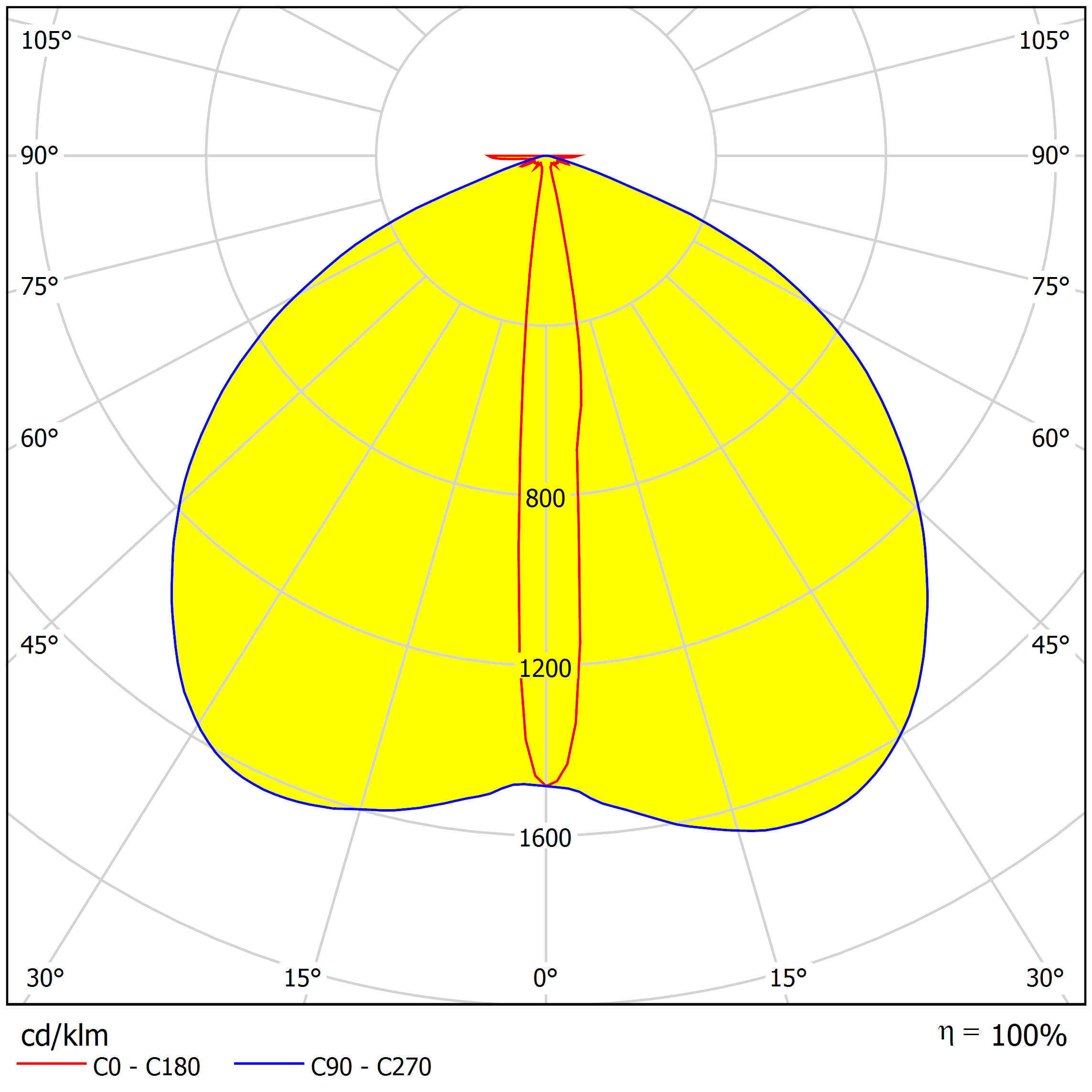

Distribution
Specifications
| Model: | AJST50D4LED2050G |
| Diameter: | 50x50mm |
| Height: | 11.2mm |
| Angle: | 20x50° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Type | 3535LED |
| Lighting applications | Street lens ,High bay lens |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8

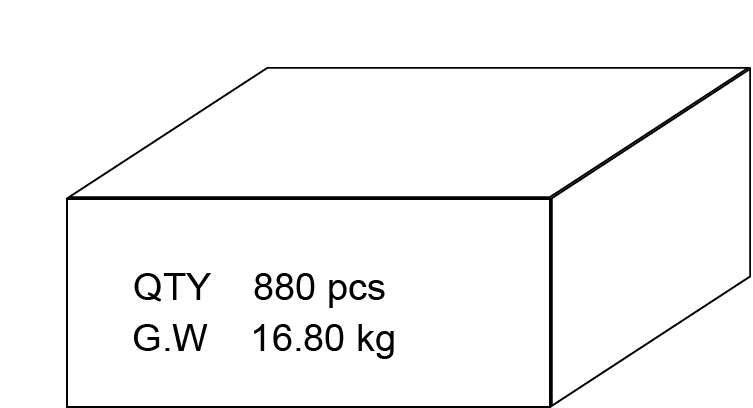

Packaging
Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.Precise Light Distribution: Oval optical design provides an asymmetric beam angle of 20°x50°, ensuring efficient area illumination coverage. Ideal for warehouses, factories, parking lots, platforms, and other scenes requiring directional wide-angle lighting.
2.High-Transmittance PMMA Material: Over 92% light transmission, precise light control, minimized light loss, and uniform light distribution with reduced glare.
3.Durable & Anti-Aging: UV-resistant, high-temperature endurance (-40℃~80℃), no yellowing or deformation over time, suitable for harsh industrial environments.

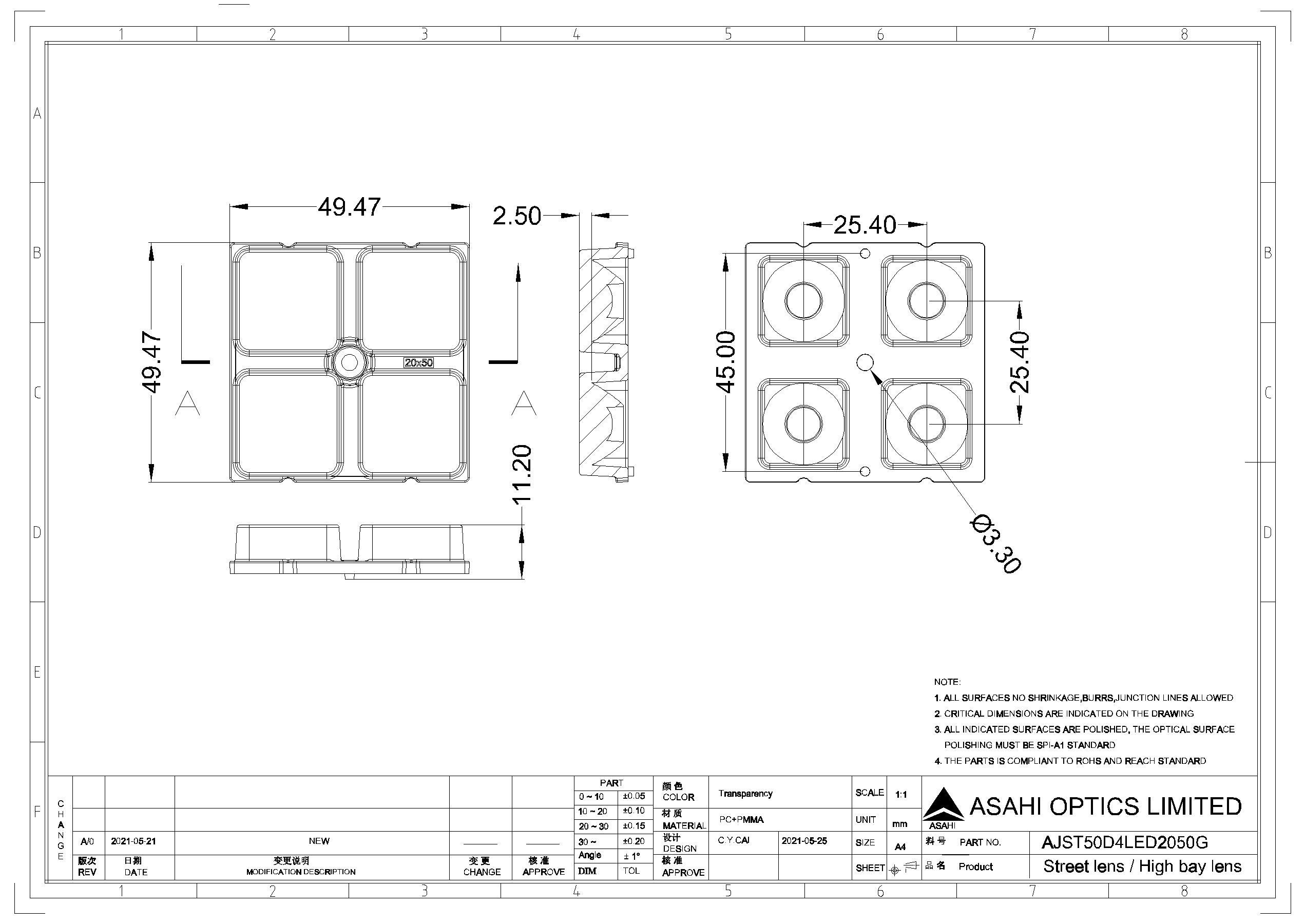

ASAHI OPTICS AJST50D4LED2050G Drawing.dwg
ASAHI OPTICS AJST50D4LED2050G Drawing.pdf
ASAHI OPTICS AJST50D4LED2050G.ies
ASAHI OPTICS AJST50D4LED2050G.stp
