Model: AJST270D75H28LED90G
Diameter: 270mm
Height: 75mm
Angle: 90°
Material: PC-1250Z
Transmittance: >90%
LED Type: 4x3030/ 5050LED
Lighting Applications: Street And Area Lighting,high bay lighting
1. 28LEDs Lens for high bay lighting with a 90-degree beam angle is specifically designed to provide a wide and uniform distribution of light in industrial or commercial settings.
2. This type of lens is commonly used in warehouses, factories, gymnasiums, and other large open spaces where bright and even illumination is essential.

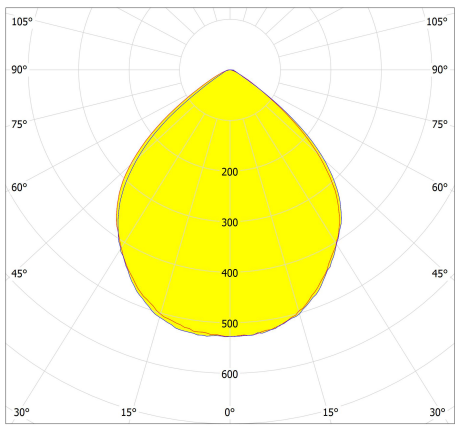

Distribution
Specifications
| Model: | AJST270D75H28LED90G |
| Diameter: | 270mm |
| Height: | 75mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 4x3030/ 5050LED |
| Lighting applications | Street And Area Lighting,high bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

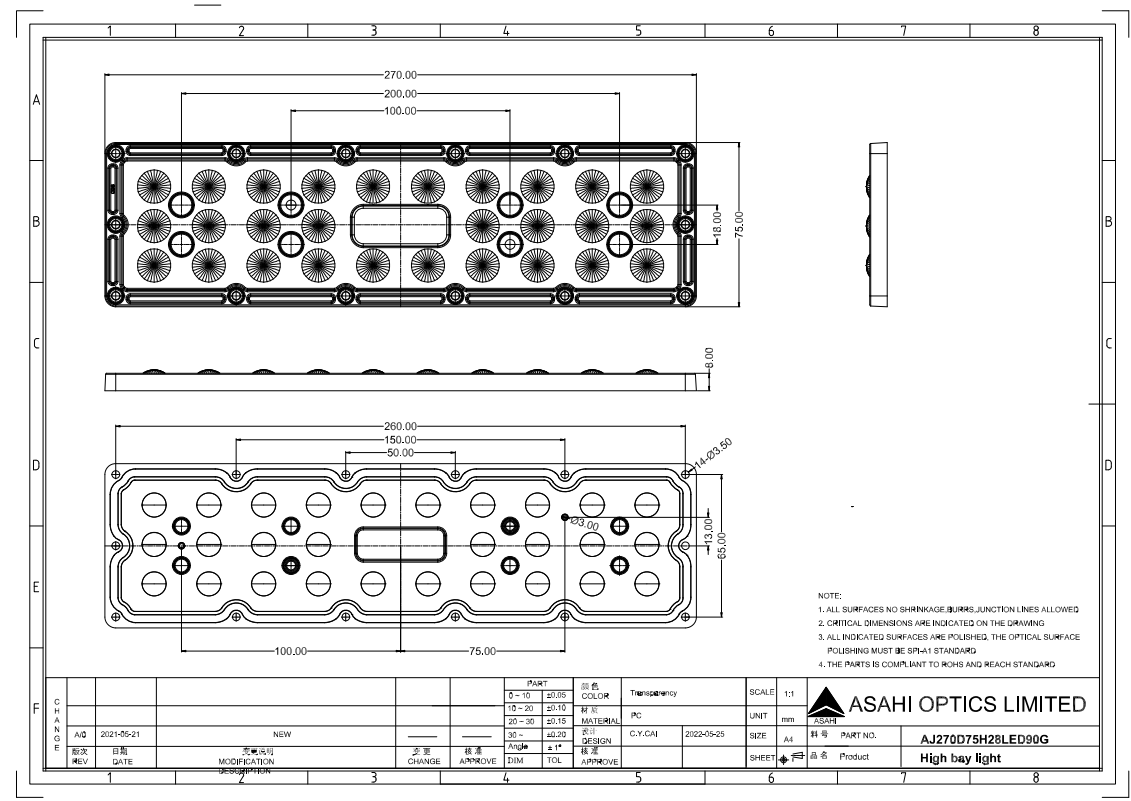

ASAHI OPTICS AJST270D75H28LED90G Drawing.PDF
ASAHI OPTICS AJST270D75H28LED90G IES
