Model: UFO226D60G, 90G, 120G-150W-K56
Diameter: 226.0mm
Height: 6.5mm
Angle: 60°, 90°, 120°
Material: PC-1250Z TEIJIN
Transmittance: >88%
LED Type: "2835" "3030"

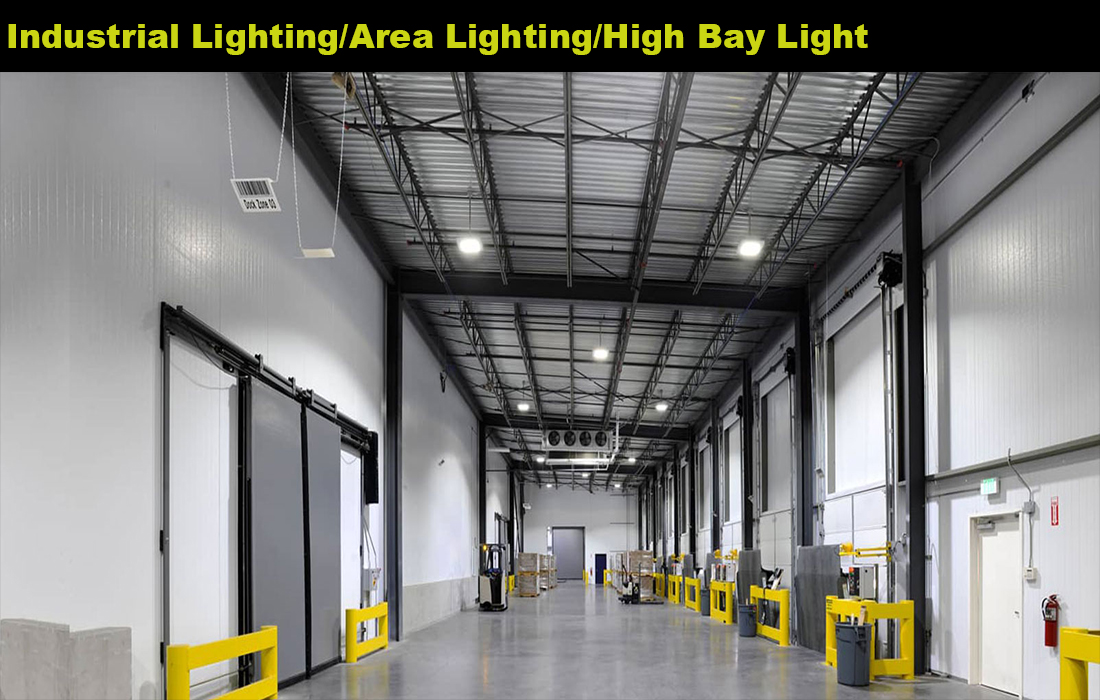

Lighting Applications: High Bay Lighting, Area Lighting
1.The IP66 Waterproof 150W UFO Industrial Lighting Lens with a 3030 LED configuration and a 60/90/120-degree beam angle is suitable for industrial lighting applications that require powerful and focused illumination.
2.Its waterproof design and durable construction make it suitable for use in outdoor or harsh environments where protection against water and dust is essential.
Specifications
Model: | UFO226D60G, 90G, 120G-150W-K56 |
Diameter: | 226.0mm |
Height: | 6.5mm |
Angle: | 60°, 90°, 120° |
Material: | PC-1250Z TEIJIN |
Transmittance: | >88% |
LED Applications | "2835" "3030" |
Lighting applications | High Bay Lighting, Area Lighting |

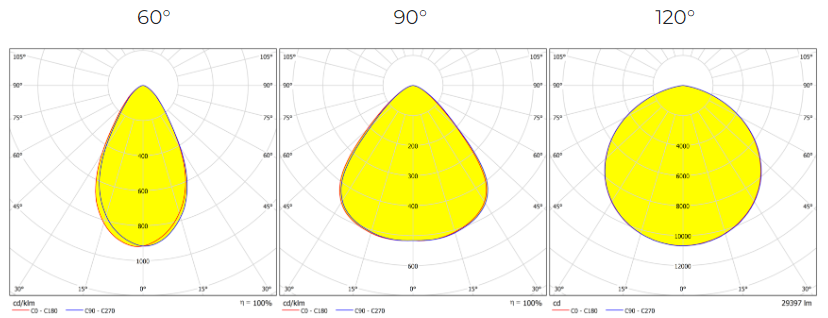

Light Distribution Curve
ASAHI OPTICS UFO226D60G, 90G, 120G-150W-K56 lens 3D drawing.STP
ASAHI OPTICS UFO 226mm PCB drawing.dxf
ASAHI OPTICS UFO226D60G,90G,120G-150W-K56 Drawing.dwg
ASAHI OPTICS UFO226D60G,90G,120G-150W-K56 Drawing.pdf
ASAHI OPTICS UFO226D60G-150W-K56 lens IES.ies
ASAHI OPTICS UFO226D90G-150W-K56 lens IES.ies
ASAHI OPTICS UFO226D120G-150W-K56 lens IES.ies
