120in1 LED 110degree for Horticultural lighting
120in1 LED 110degree for Horticultural lighting

120in1 LED 110degree for Horticultural lighting

Model: AJHB175D120LED110G

Size: 175.11x43.57 (mm)

Height: 6.45mm

Angle: 110°

Material: PC

Transmittance: >88%

LED Type: 2835/3030 LED

Lighting Applications: High Bay lighting, Horticultural lighting

1. Designed for horticultural lighting, 110° wide beam angle reduces dark areas and improves light distribution uniformity.

2. Light transmittance >88%, low optical loss, compatible with mainstream 2835/3030 chips.

3. Compact, thin structure for flexible installation, meeting the needs of large-area lighting in warehouses, greenhouses, etc., while supporting the utilization of photosynthetically active spectra.

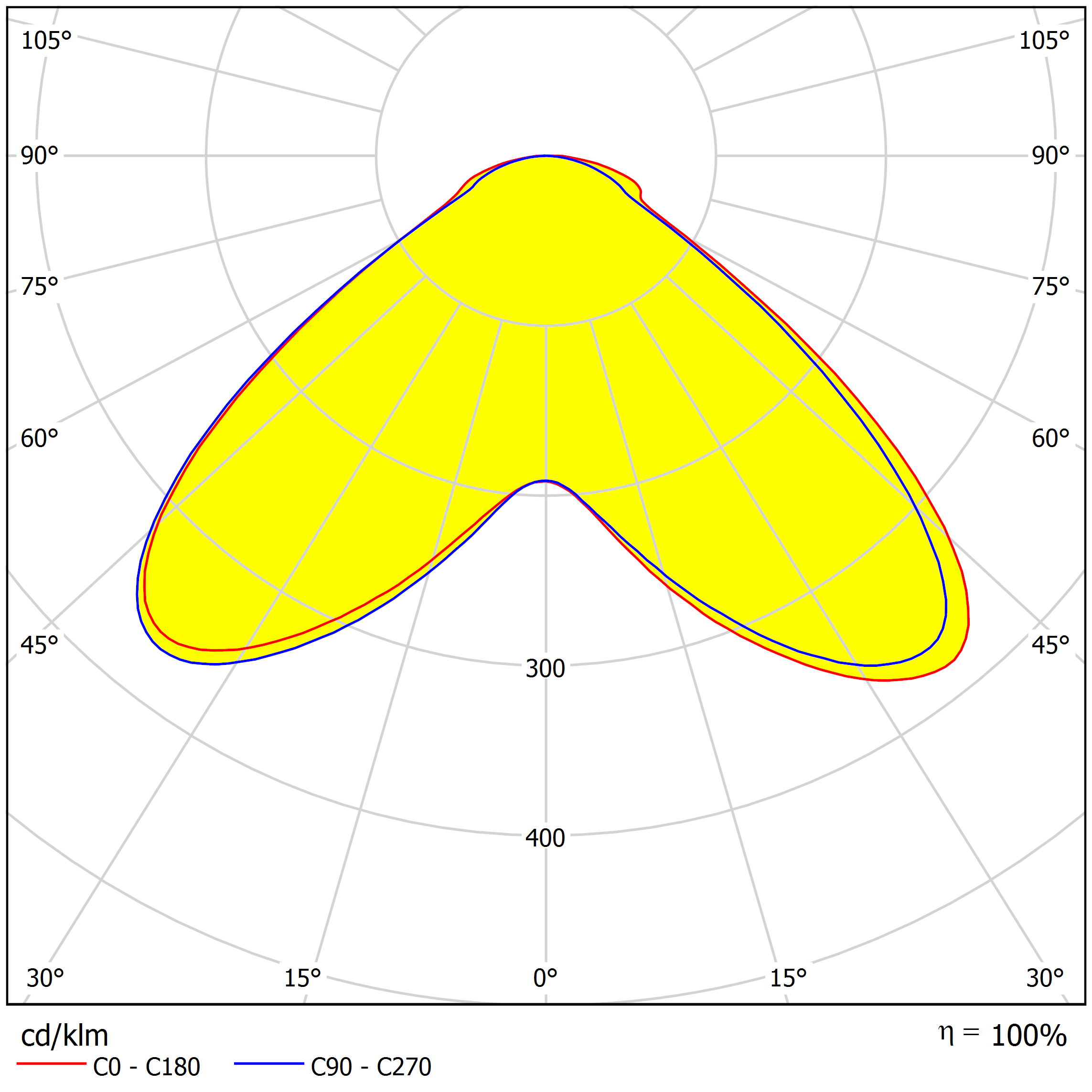

Distribution

AJHB175D120LED110G distribution

Specifications

Model: AJHB175D120LED110G
Size: 175.11x43.57 (mm)
Height: 6.45mm
Angle: 110°
Material： PC
Transmittance： >88%
LED Type 2835/3030 LED
Lighting applications High Bay lighting, Horticultural lighting

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

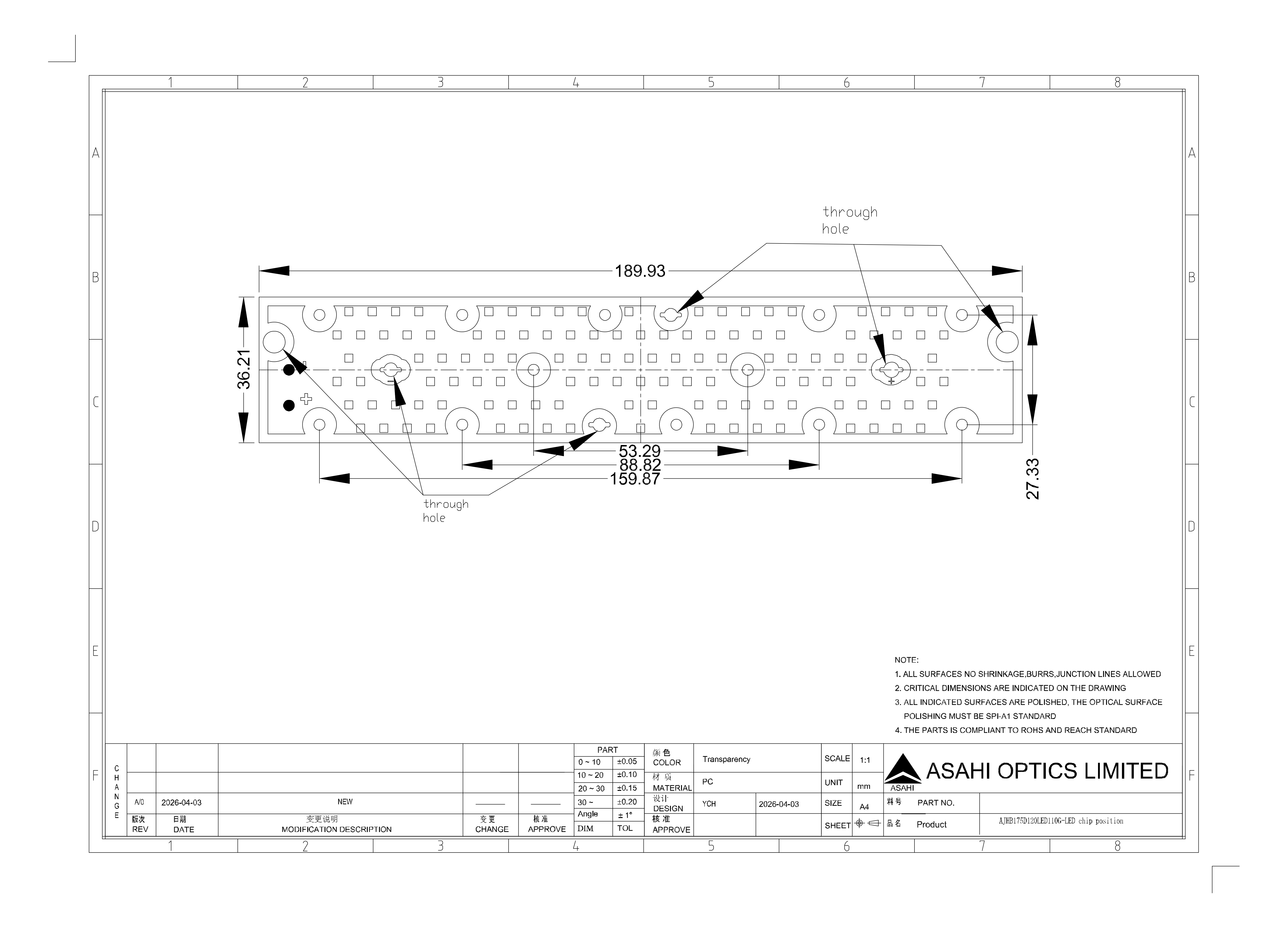

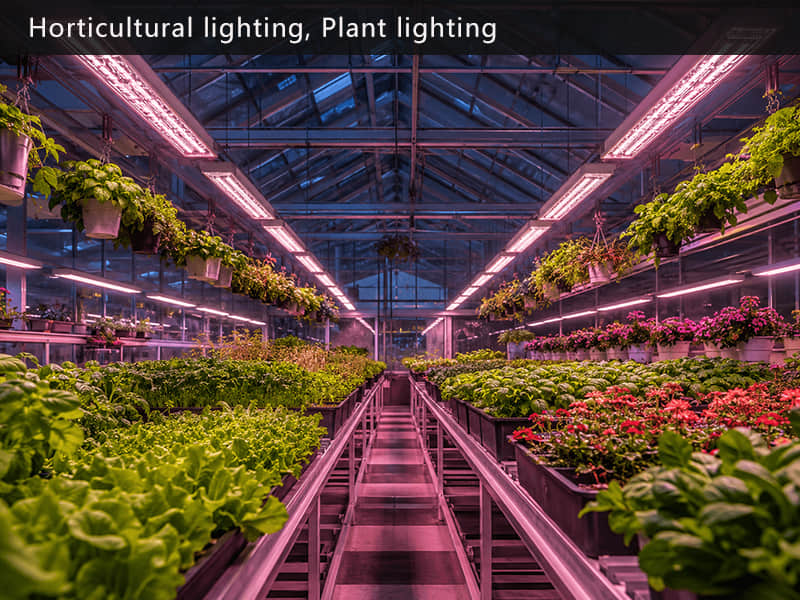

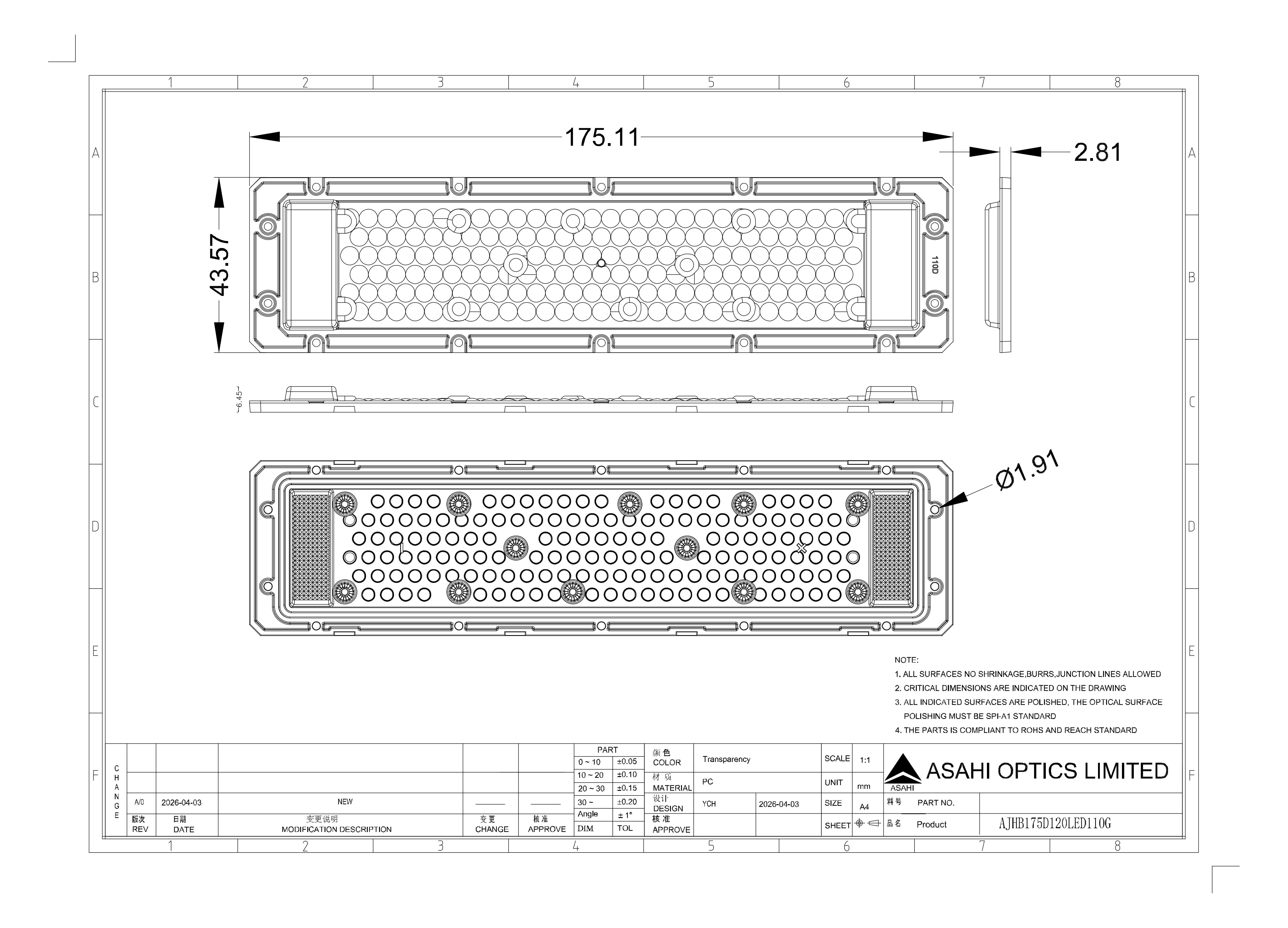

AJHB175D120LED110G distributionAJHB175D120LED110G DrawingAJHB175D120LED110G LED chip position on the aluminum PCB Drawing_01Horticultural lighting, Plant lighting
