Model: ALHB50D12LED3030T60G
Diameter: 50x50mm
Height: 4.02mm
Angle: 60°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED
Lighting Applications: High Bay light
1. The 12x1 flood light lens compatible with 2835 3030LED.
2. Design with a 60° angle allows the light fixture to illuminate a broad and even area.
3. Suitable for applications requiring extensive lighting coverage,such as squares, parking lots, sports arenas, providing comprehensive and clear illumination.

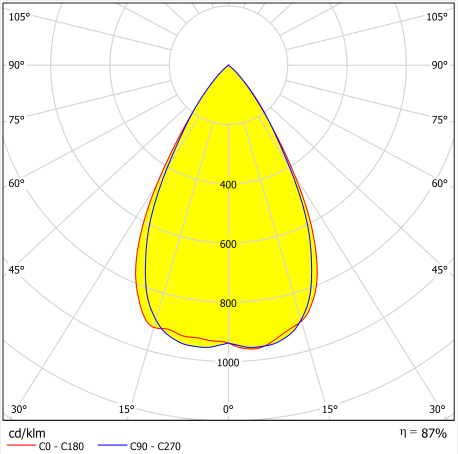

Distribution
Specifications
| Model: | ALHB50D12LED3030T60G |
| Diameter: | 50x50mm |
| Height: | 5.61mm |
| Angle: | 60° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | High Bay light,Flood Light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

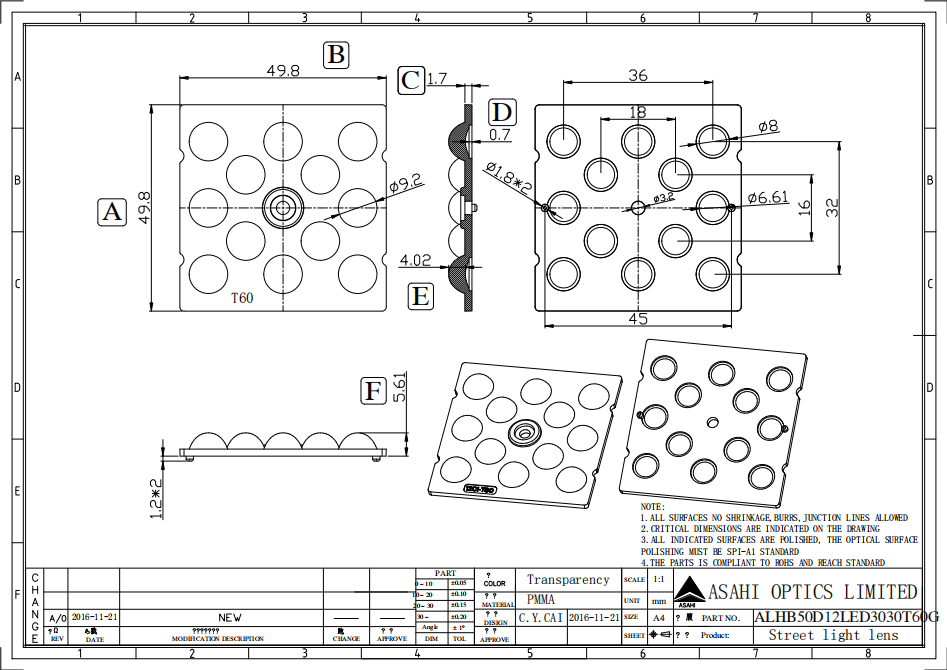

ASAHI OPTICS ALHB50D12LED3030T60G Drawing.dwg
ASAHI OPTICS ALHB50D12LED3030T60G Drawing.pdf
ASAHI OPTICS ALHB50D12LED3030T60G lens IES.ies
