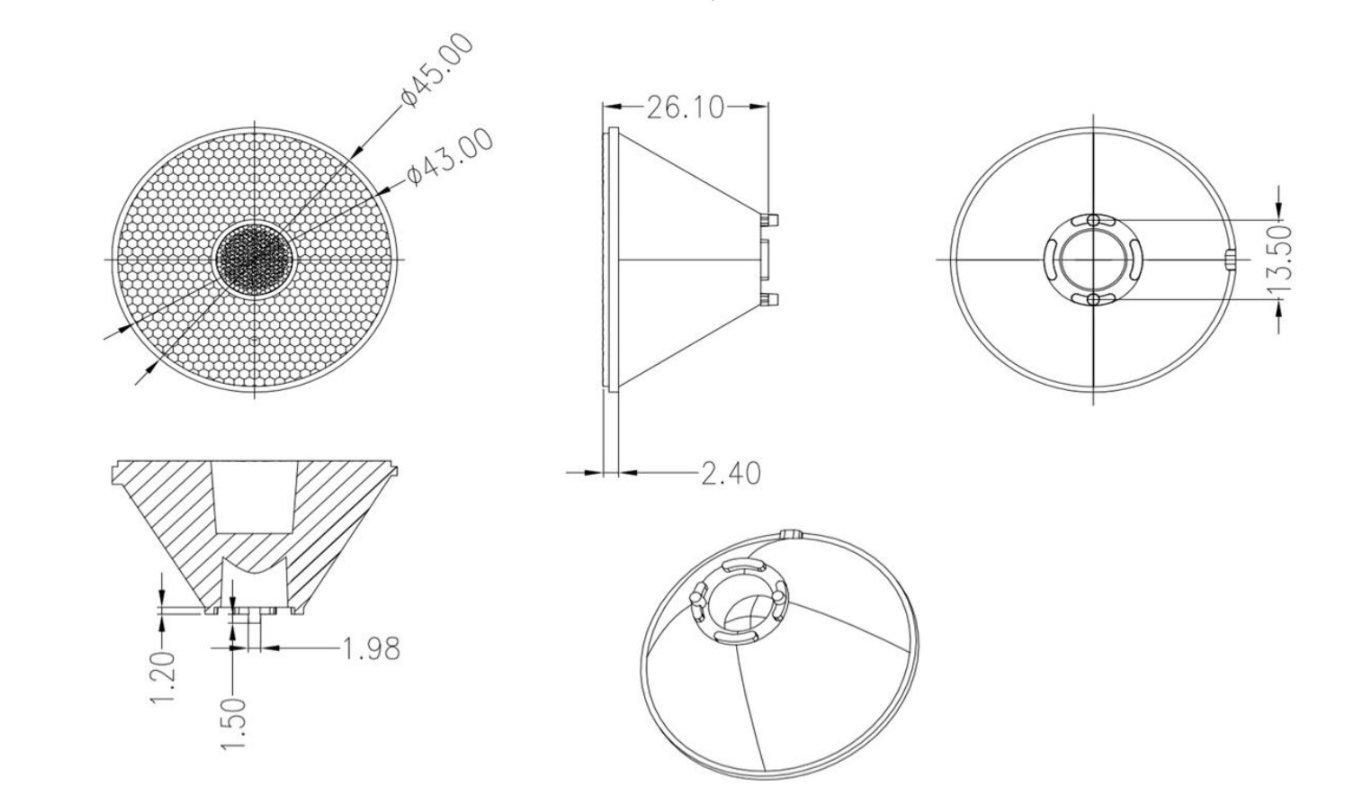

Model: AJS45DRGBW1530G
Diameter: 45mm
Height: 26.4mm
Angle: 15X30°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW

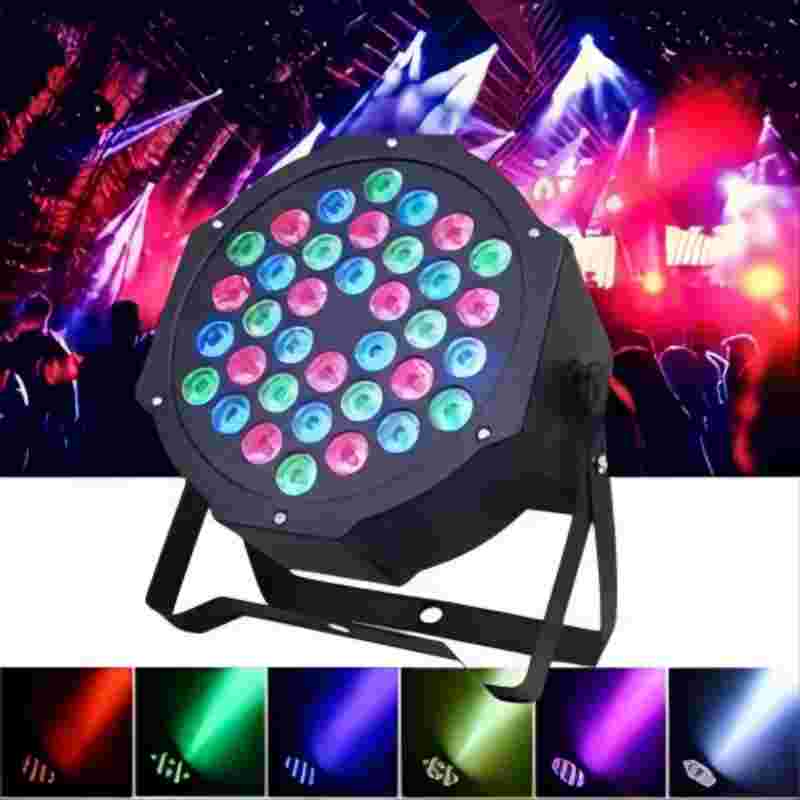

Lighting Applications: stage light
1. 45mm XML RGBW LED lens with an oval beam angle of 15x30° .
2. This particular lens is designed to provide a narrow oval-shaped beam of light.
Distribution
Specifications
| Model: | AJS45DRGBW1530G |
| Diameter: | 45mm |
| Height: | 26.4mm |
| Angle: | 15X30° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW |
| Lighting applications | stage light |
LED Type
XML-RGBW
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
