2x2 Narrown Forward Throw Beam Public Area Optics Lens
2x2 Narrown Forward Throw Beam Public Area Optics Lens

2x2 Narrown Forward Throw Beam Public Area Optics Lens

Model: ALST50D4LED5050TF-FS

Diameter: 50x50mm

Height: 9.49mm

Angle: T4-Very Short

Material: PC

Transmittance: >90%

LED Type: 5050LED

Lighting Applications: Area Lighting

1. Forward throw beam optimized for European tunnels, resulting in extremely efficient lighting with counter-beam method. Variant made from PC.

2. Variant made from PC,exhibits excellent thermal stability, maintaining optical performance under a wide range of temperatures and environmental conditions.

3. Resistant to UV degradation, ensuring long-term optical clarity and maintaining performance over time.

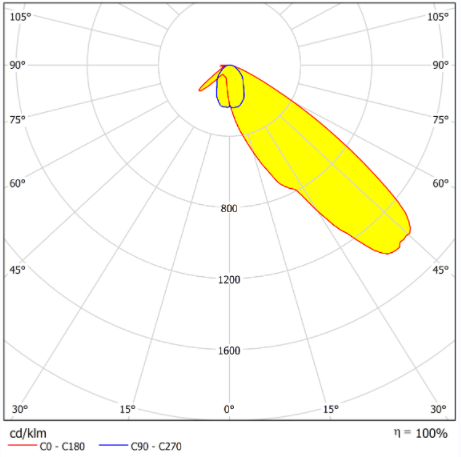

Distribution

2x2 Narrown Forward Throw Beam Public Area Optics Lens Distribution


Specifications

Model: ALST50D4LED5050TF-FS
Diameter: 50x50mm
Height: 9.49mm
Angle: T4-Very Short
Material: PC
Transmittance: >90%
LED Type 5050LED
Lighting applications Area Lighting

LED Type

CREE 5050 series cree

JR5005C 6-V E

OSRAM 5050 series osram

DURIS S 8

LUMILEDS 5050 series lumileds

LUXEON 5050 Square

Nichia 5050 series nichia

NVAW144AR

NVAW144AM

EVERLIGHT 5050 series everlight_logo

Xl5050LED

HONGLI 5050 Series honglizhihui

EMC5050LED

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical
  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

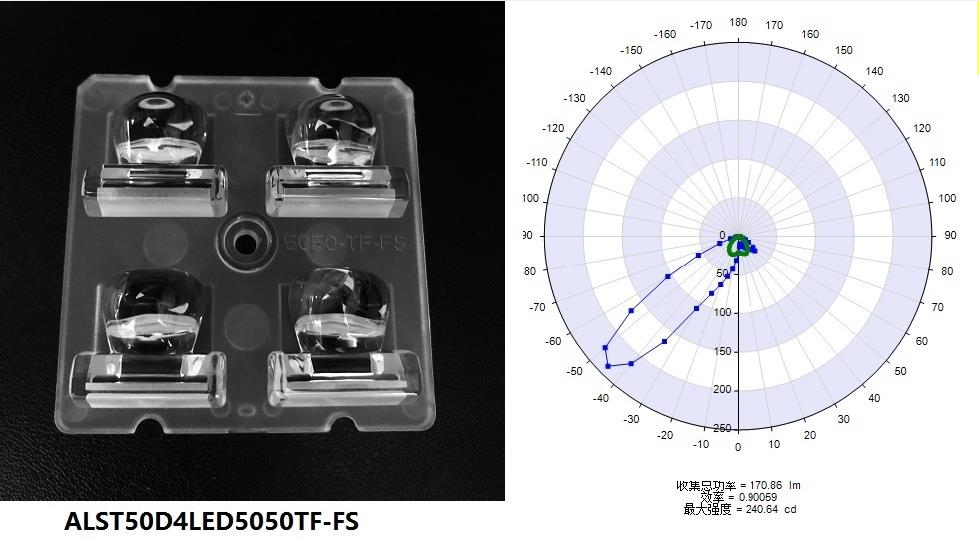

5050TF-FS Very Short forward throw beam angle for area lighting like tunnel light, sports ground, high billboard light

1. Forward throw beam optimized for European tunnels, resulting in extremely efficient lighting with counter-beam method. Variant made from PC.

2. Variant made from PC,exhibits excellent thermal stability, maintaining optical performance under a wide range of temperatures and environmental conditions.

3. Resistant to UV degradation, ensuring long-term optical clarity and maintaining performance over time.

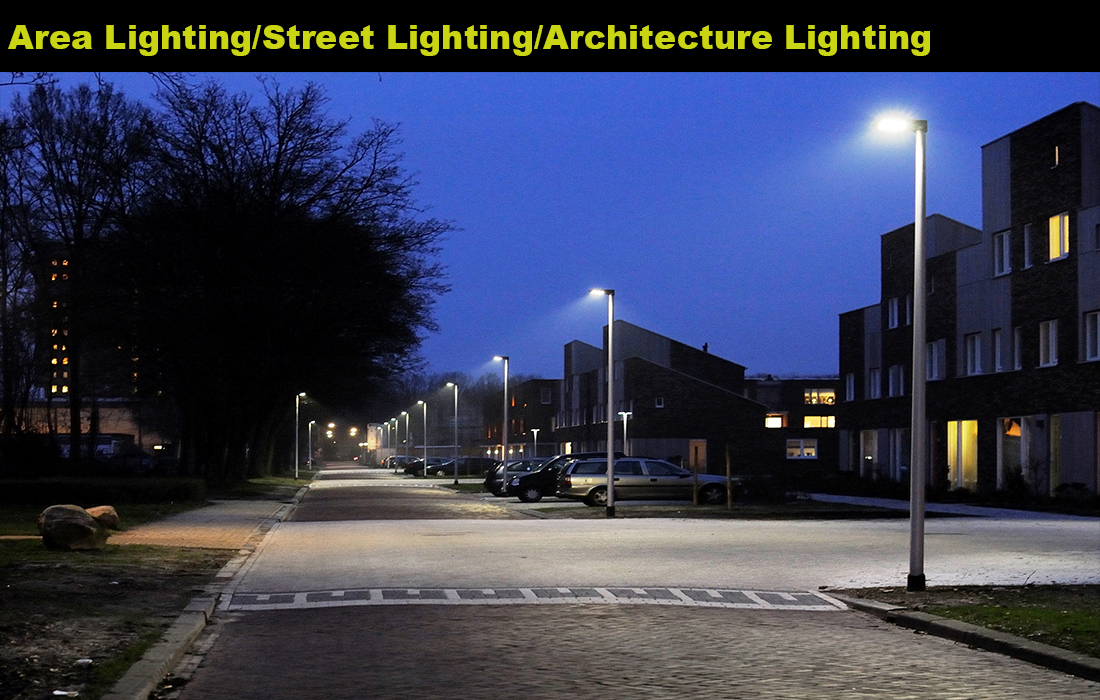

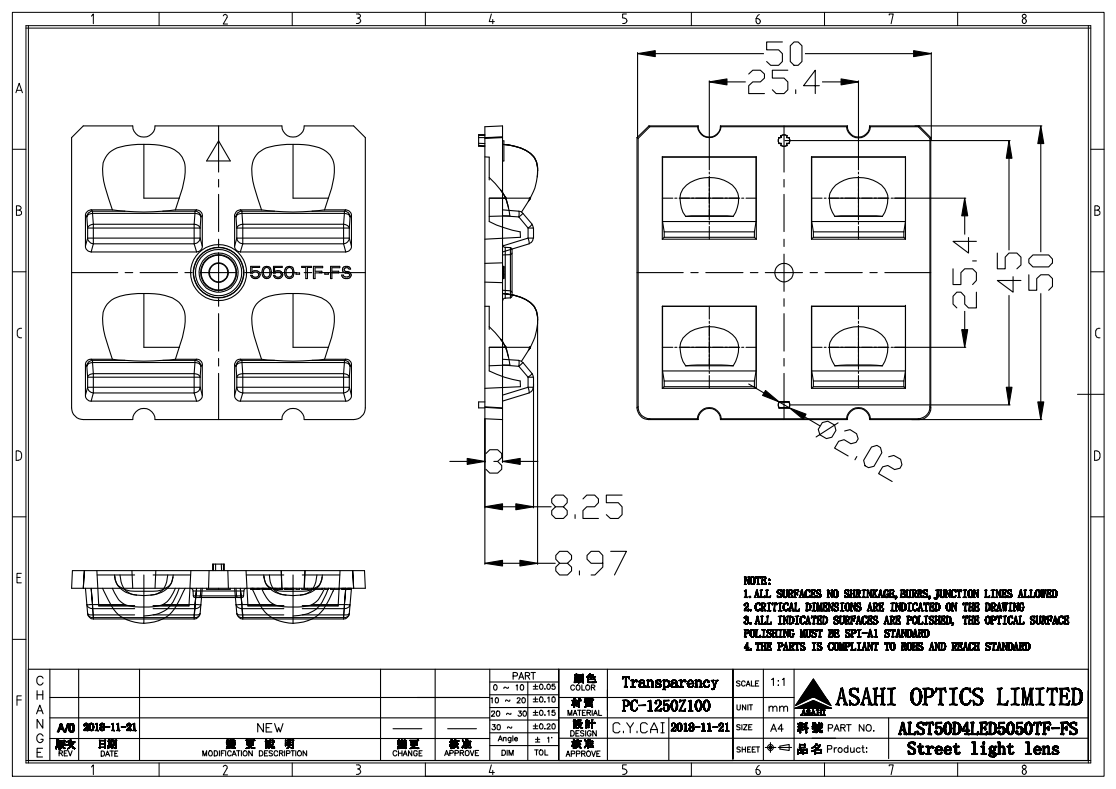

2x2 Narrown Forward Throw Beam Public Area Optics Lens Distribution2x2 Narrown Forward Throw Beam Public Area Optics Lens Drawing2x2 Narrown Forward Throw Beam Public Area Optics Lens Application
