Model: AJST250D74H100LED80150G
Size: 250x74(mm)
Height: 6.15mm
Angle: 80x150°
Material: PC
Transmittance: >88%
LED Type: 2835/3030 LED
Lighting Applications: Street lights
1. A 250×74mm elongated lens integrating 100 lens units,with 80°×150°asymmetric light distribution.The narrow longitudinal angle controls light spillage,while the wide transverse angle covers the road width,forming a rectangular beam pattern extending along the road.
2. Made of PC material with >88%transmittance,compatible with 2835/3030 LEDs.With a height of only 6.15mm,its ultra-thin structure facilitates modular integration, making it suitable for street lighting and tunnel lighting,improving road illuminance uniformity.

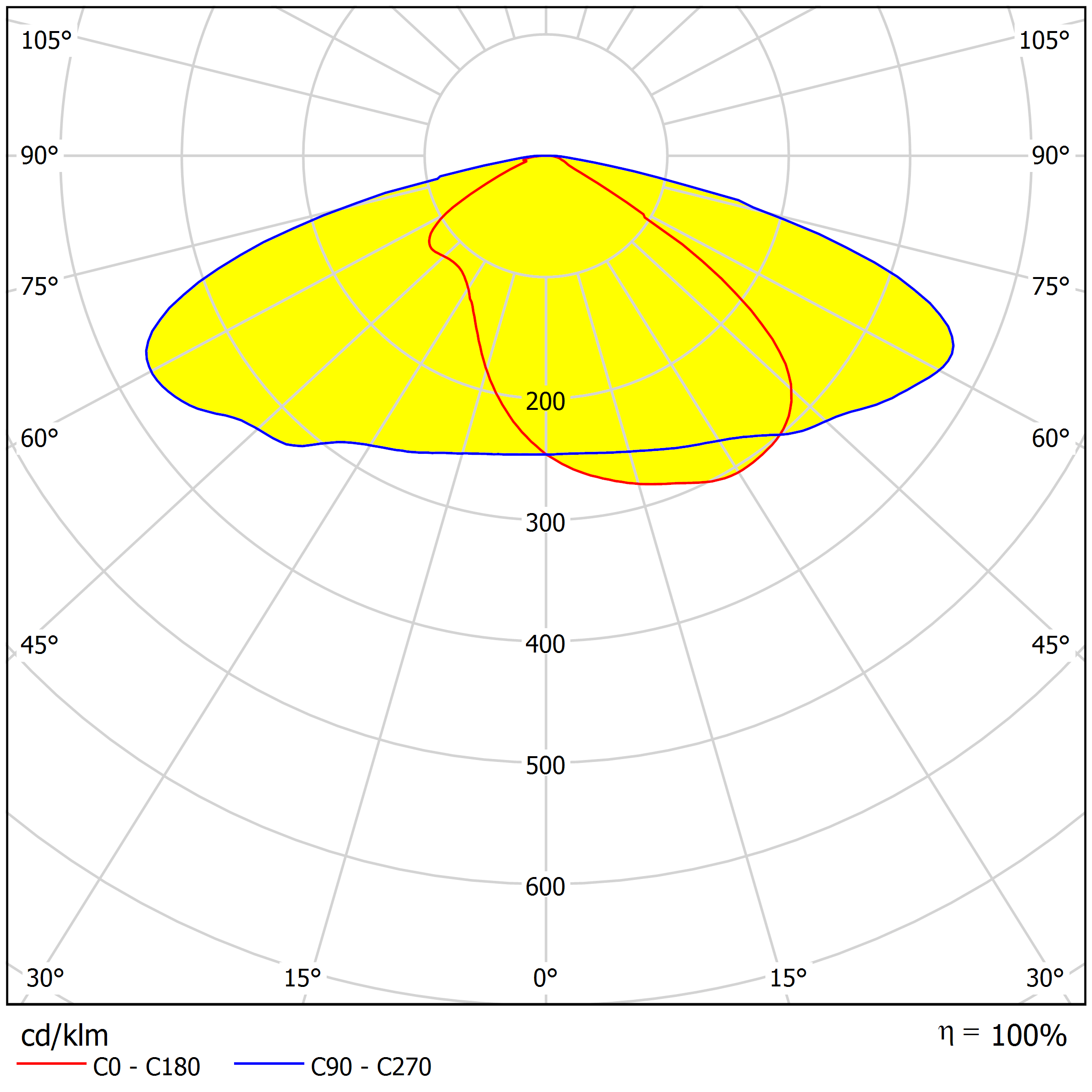

Distribution
Specifications
| Model: | AJST250D74H100LED80150G |
| Size: | 250x74(mm) |
| Height: | 6.15mm |
| Angle: | 80x150° |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 2835/3030 LED |
| Lighting applications | Street lights |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

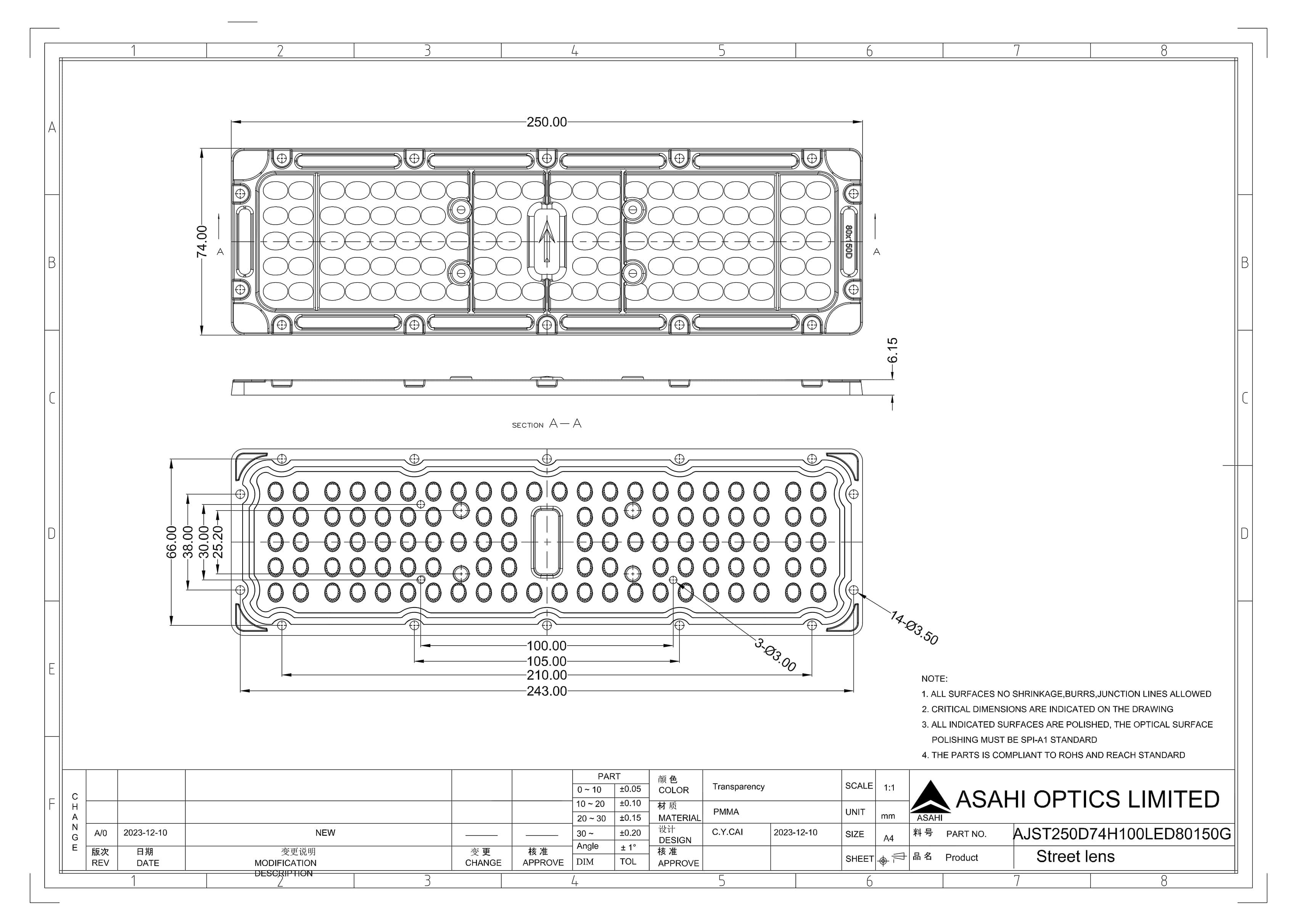

Asahi-Optics AJST250D74H100LED80150G Drawing.dwg
Asahi-Optics AJST250D74H100LED80150G Drawing.pdf
Asahi-Optics AJST250D74H100LED80150G.IES
