Model: ALST50D24LED80150G
Size: 50x50(mm)
Height: 4.62mm
Angle: 80x150°
Material: PC
Transmittance: >88%
LED Type: 3030LED
Lighting Applications: Industrial Lighting、Area Lighting/High Bay Light
1. 80°×150° asymmetric light distribution provides wide coverage along the road direction while delivering precise vertical light control, effectively illuminating the roadway and minimizing light spillage.
2. Made of PC material with transmittance >88%, compatible with 3030 LEDs. Dimensions: 50x50mm, height 4.62mm. The square structure facilitates modular integration, improving road lighting uniformity and energy efficiency.

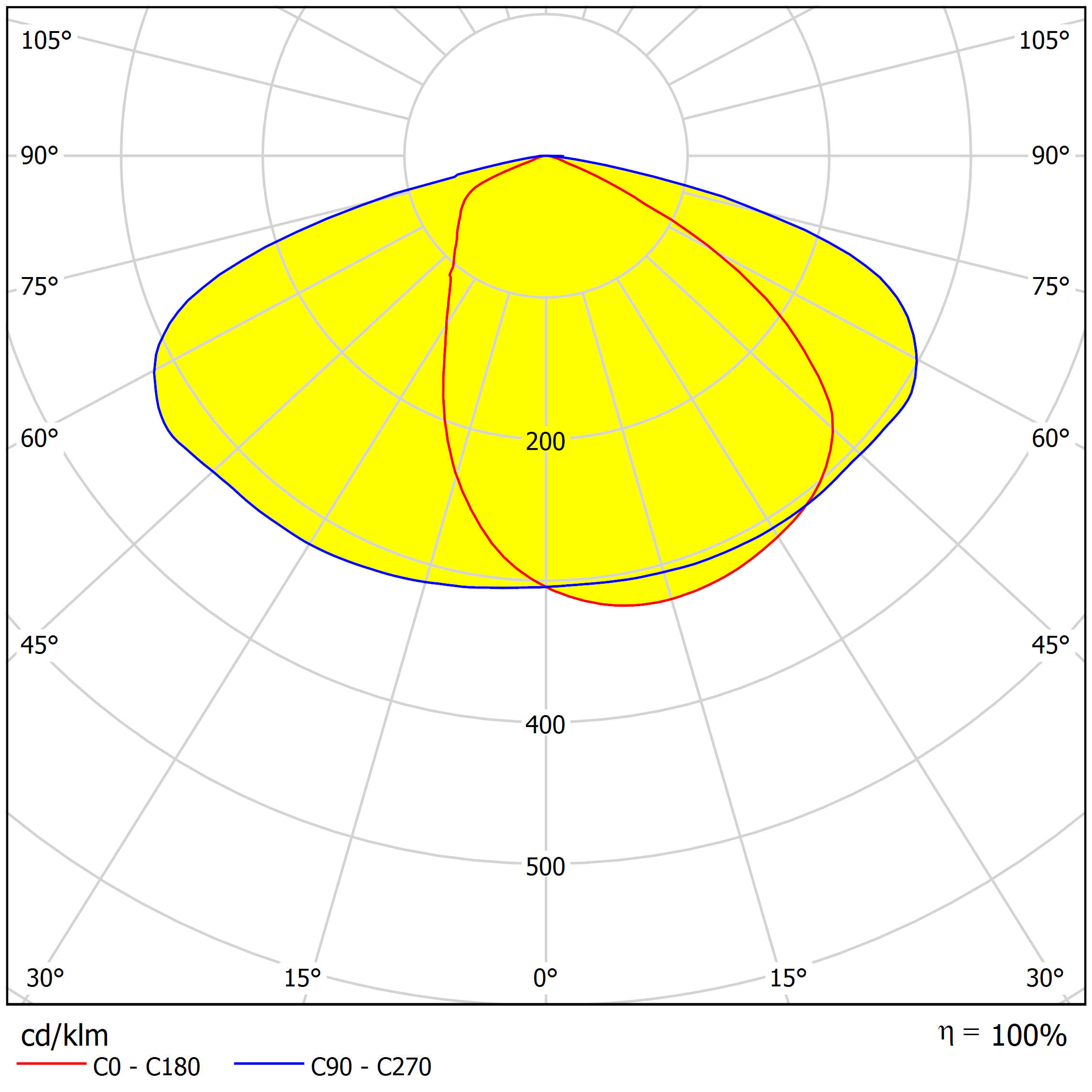

Distribution
Specifications
| Model: | ALST50D24LED80150G |
| Size: | 50x50(mm) |
| Height: | 4.62mm |
| Angle: | 80x150° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 3030LED |
| Lighting applications | Industrial Lighting、Area Lighting/High Bay Light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

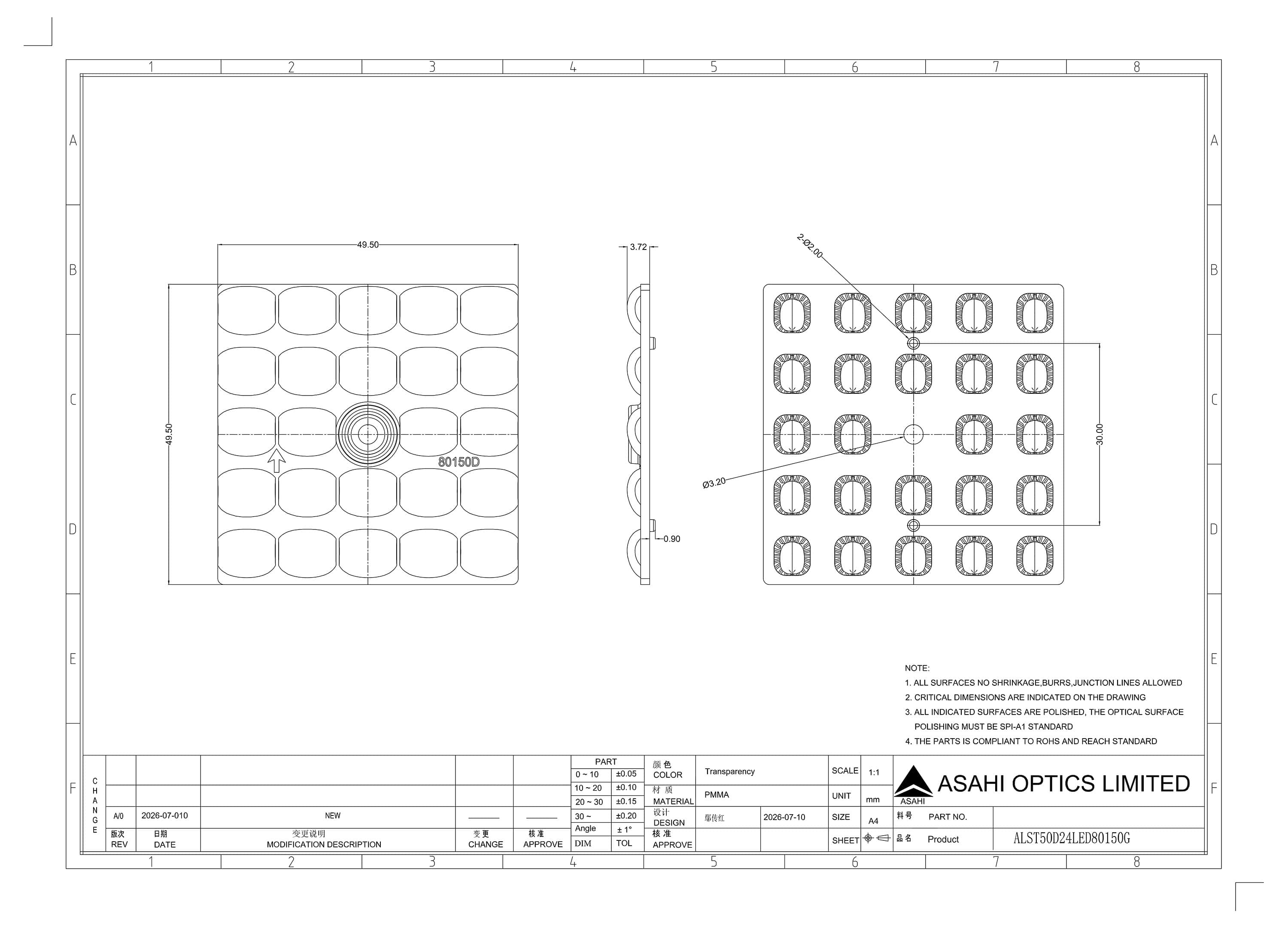

ALST50D24LED80150G Drawing.dwg
ASAHI OPTICS ALST50D24LED80150G Drawing.pdf
ASAHI OPTICS ALST50D24LED80150G lens IES.ies
ALST50D24LED80150G Datasheet.pdf
