Model: AJS35D22H3.8G/4G/6G/15G
Diameter: 35mm
Height: 23.33mm
Angle: 3.8°, 4°, 6°, 15°
Material: PMMA
Transmittance: >93%
LED Type: XPE-2, XPG-2, XPG-3, XML
Lighting Applications: outdoor landscape lighting, spot light, down lamp, flashlight, etc

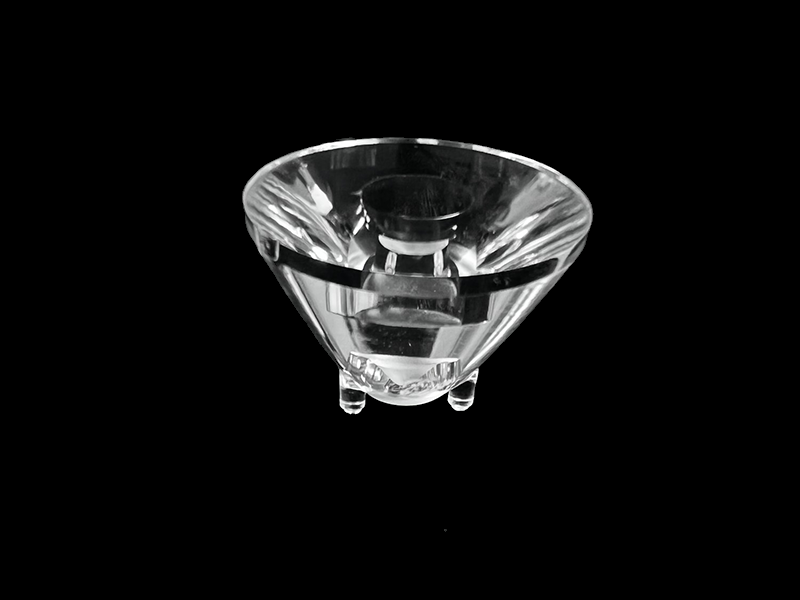

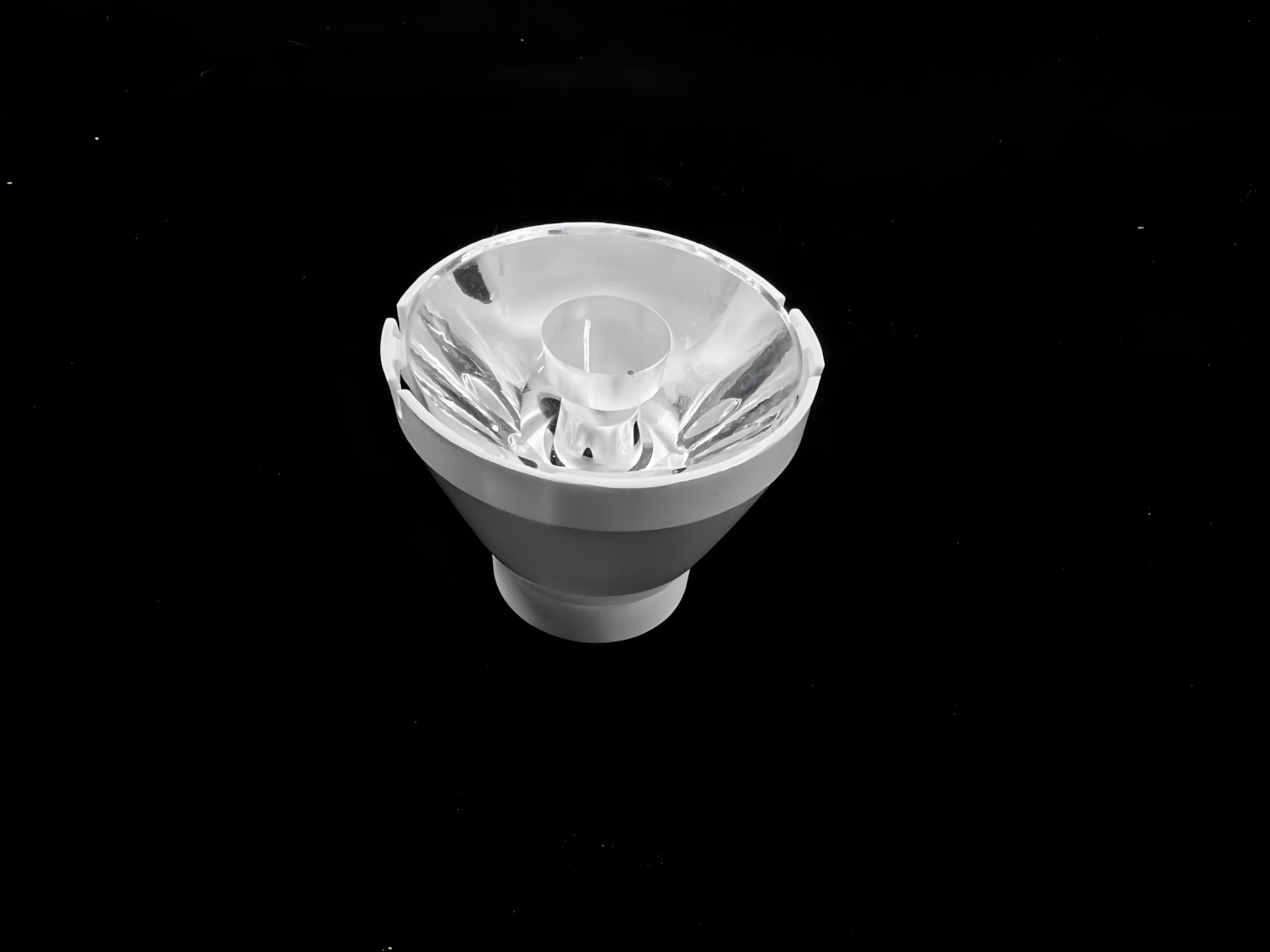

1. This 35mm single lens was typically designed for surgical lighting with high lighting intensity and excellent lighting uniformity.
2. 35mm single lens can be widely used on most of surgical lighting lamps with perfect mechancial design and function.
3. 3.8° beam illuminates a very narrow spot area to enable the surgical operators to clearly examine the patients' body.

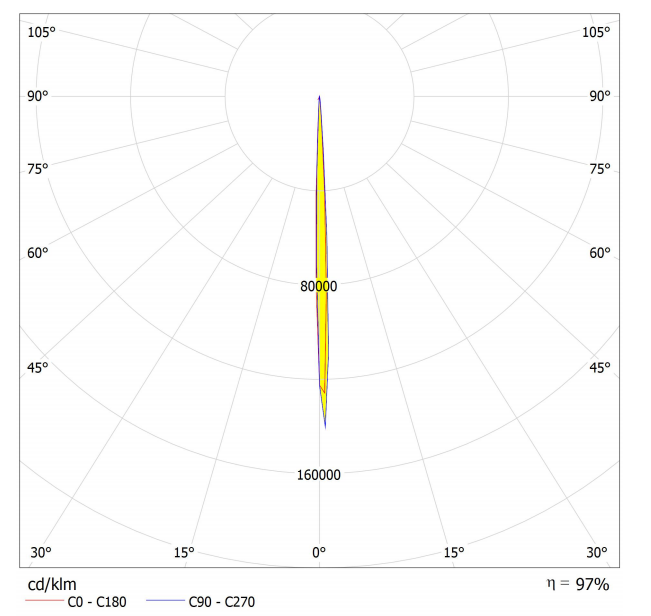

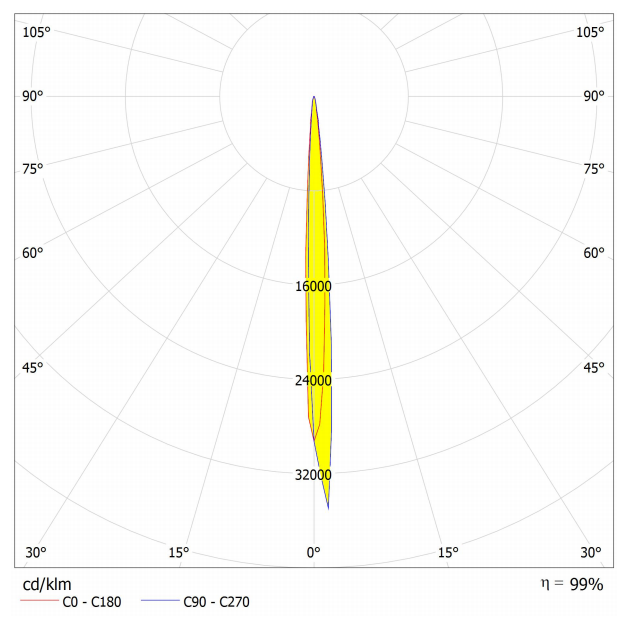

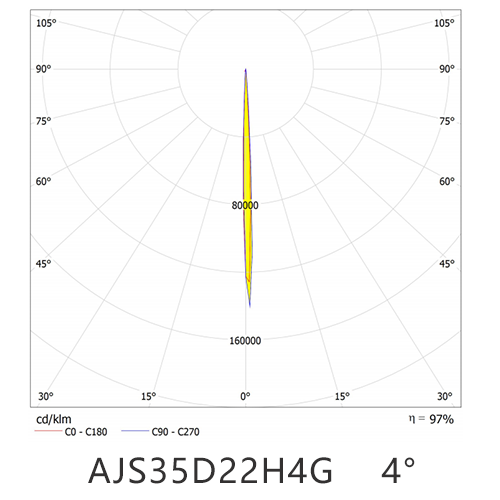

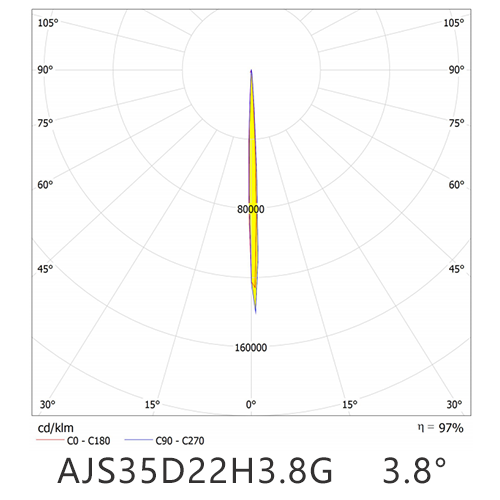

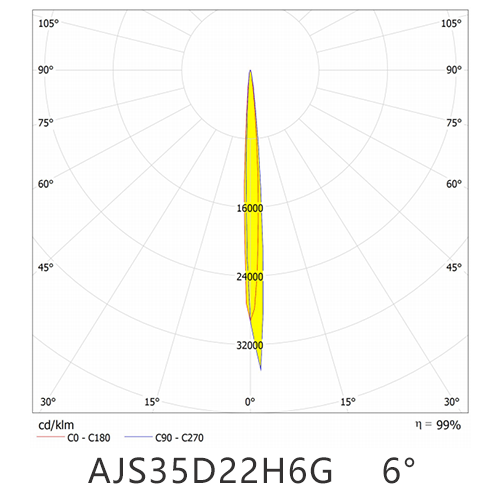

Distribution
Specifications
| Model: | AJS35D22H3.8G/4G/6G/15G |
| Diameter: | 35mm |
| Height: | 23.33mm |
| Angle: | 3.8°, 4°, 6°, 15° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | XPE-2, XPG-2, XPG-3, XML |
| Lighting applications | outdoor landscape lighting, spot light, down lamp, flashlight, etc |
LED Type
XPE2
XPG-2
XPG-3
XML
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1, Narrow beam LED lens is designed for surgery, dental light, torchlight, wall washer light, and other technical lighting requirements.
2, LED Applications: XPE-2, XPG-2, XPG-3, XML LED standard
3, Lighting applications: Architecture light, flashlight, stage light
Asahi Optics AJS35D22H3.8G Drawing.dwg
Asahi Optics AJS35D22H3.8G Drawing.pdf
Asahi Optics AJS35D22H3.8G.ies
Asahi-Optics-AJS35D22H-PCB-Drawing.dwg
Asahi-Optics-AJS35D22H-PCB-Drawing.pdf
