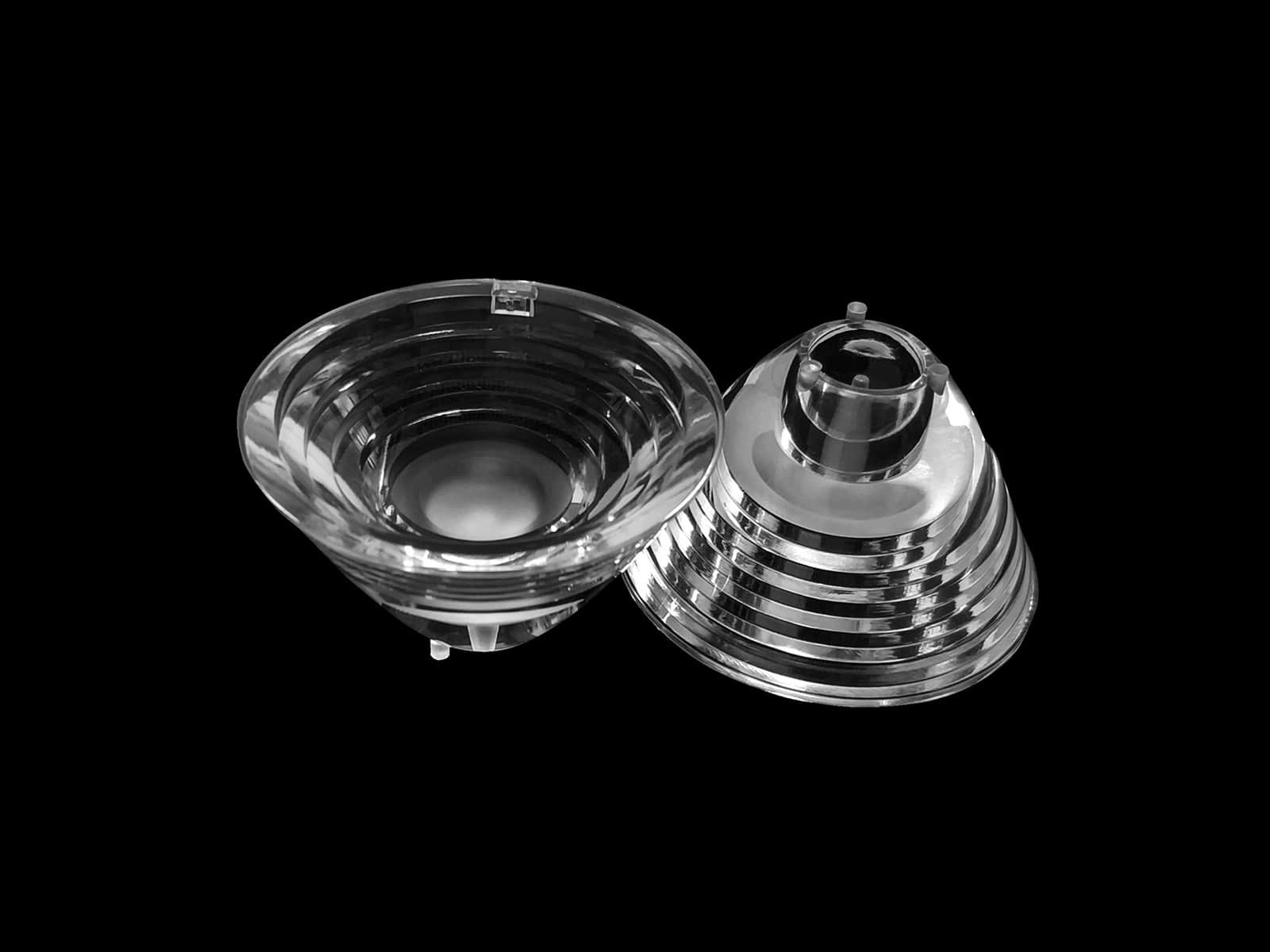

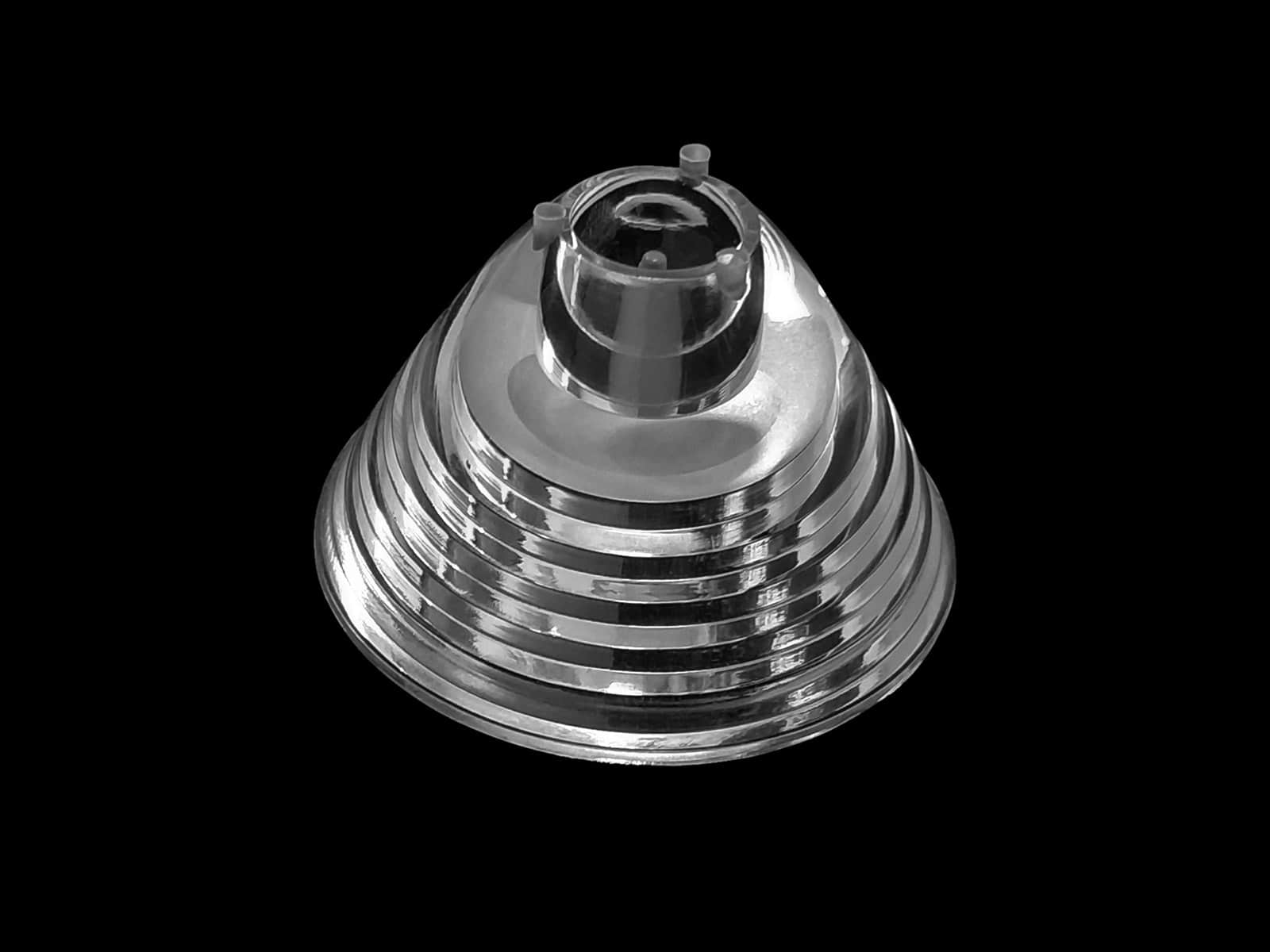

Model: AMCOB48D2G

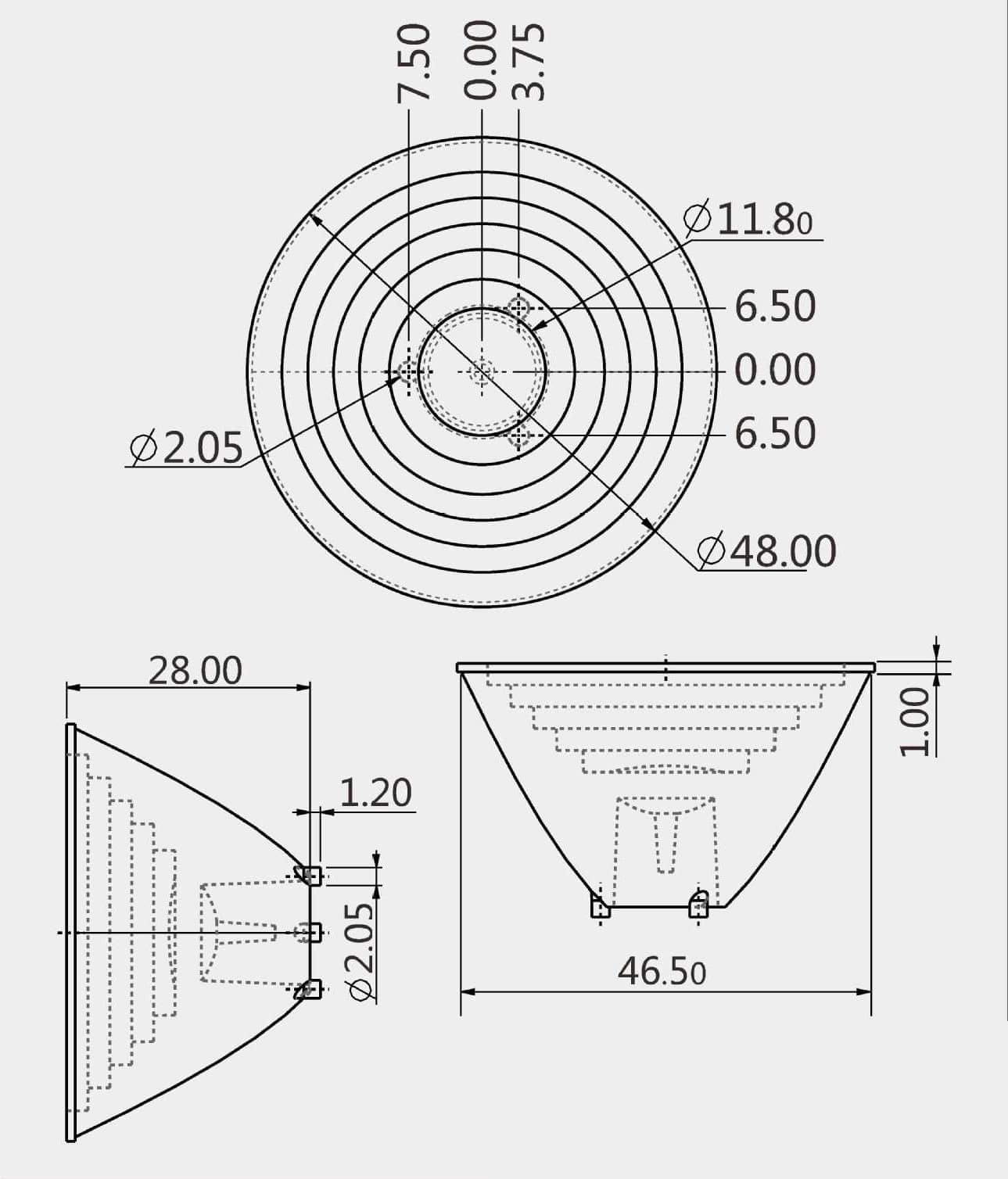

Size: Ø48mm
Height: 28mm
Angle: 2°
Material: PMMA
Transmittance: >92%
LED Type: 3030, 3535LED, 5050LED
Lighting Applications: Beam light, Narrow-angle flood light, spot light
1. Model AMCOB48D2G, with an ultra‑narrow 2° beam angle that effectively reduces light dispersion, enhances central luminous intensity, and minimizes light loss.
2. The concave design optimizes the optical path, making it suitable for long‑distance projection and accent lighting applications such as beam lights, narrow‑angle flood lights, and spotlights.

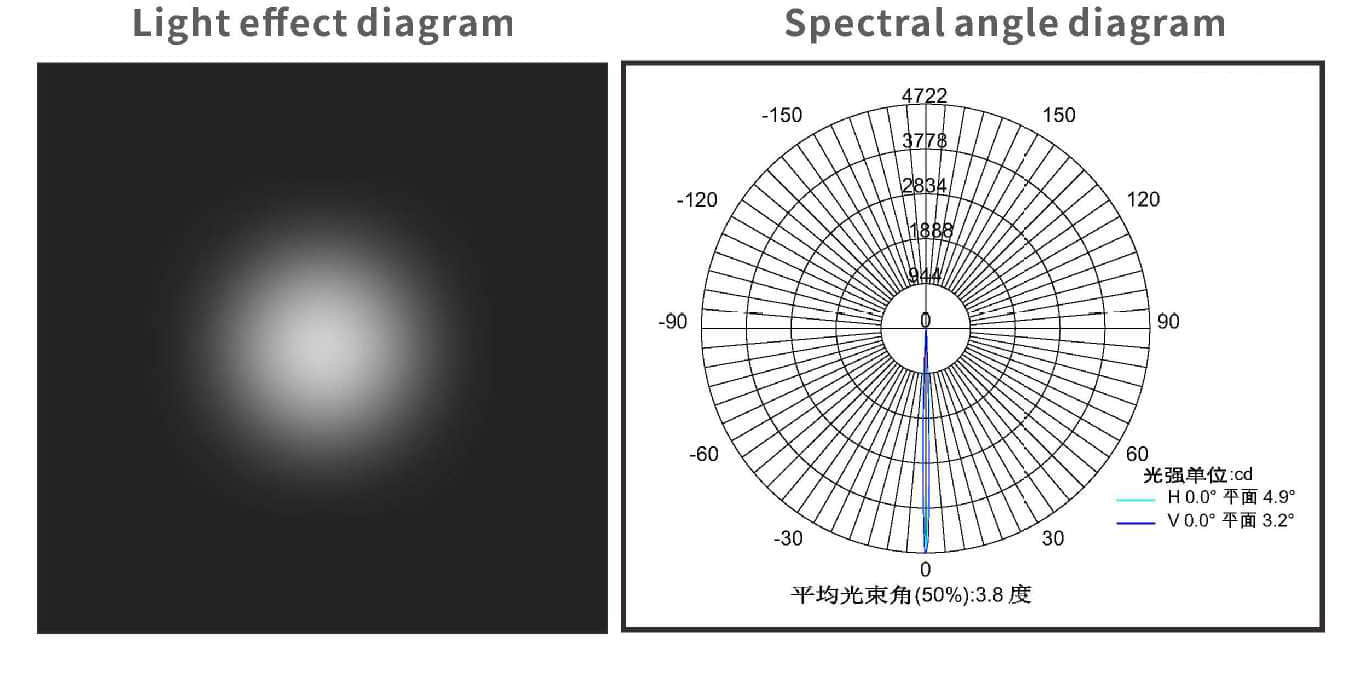

Distribution
Specifications
| Model: | AMCOB48D2G |
| Size: | Ø48mm |
| Height: | 28mm |
| Angle: | 2° |
| Material： | PMMA |
| Transmittance： | >92% |
| LED Type | 3030, 3535LED, 5050LED |
| Lighting applications | Beam light, Narrow-angle flood light, spot light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
