Model: AJHB236D80LED
Diameter: 236mm
Height: 7.2mm, 6.9mm
Angle: 30°, 60°, 90°, 60x90°, 75x140°
Material: PC
Transmittance: >90%
LED Type: 3030LED
Lighting Applications: High Bay lighting, Street lighting

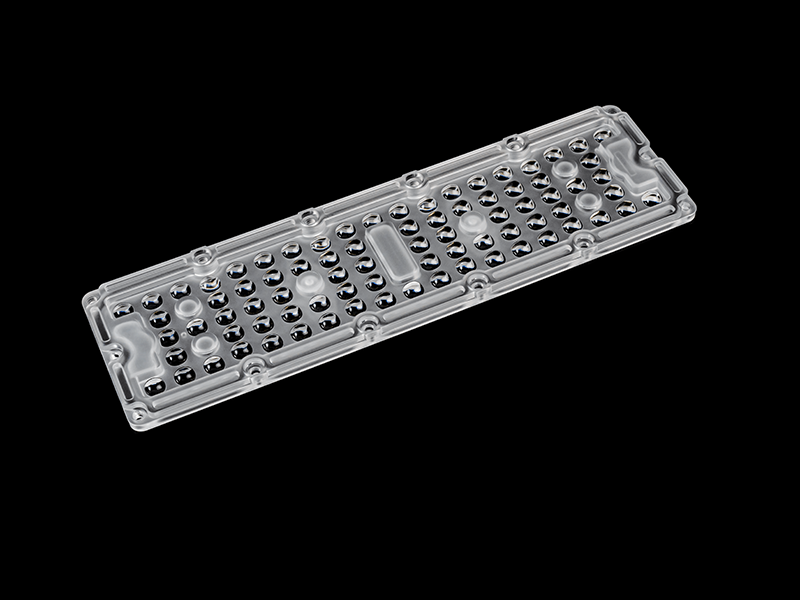

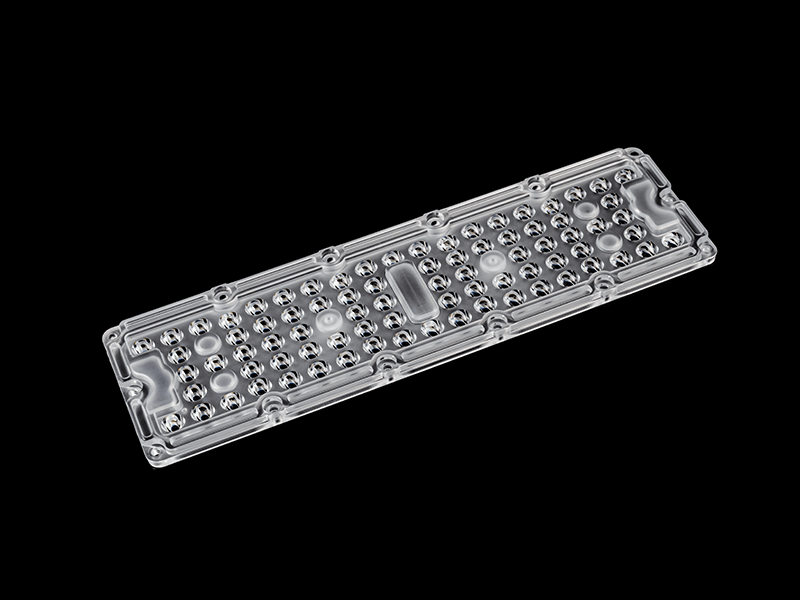

236x70mm IP66 80LEDs LENS with beam angles of 30°, 60°, 90°, 60x90°, 75x140°
Multiple beam angles in one lens design for flexibility.
High IP66 rating for harsh environments

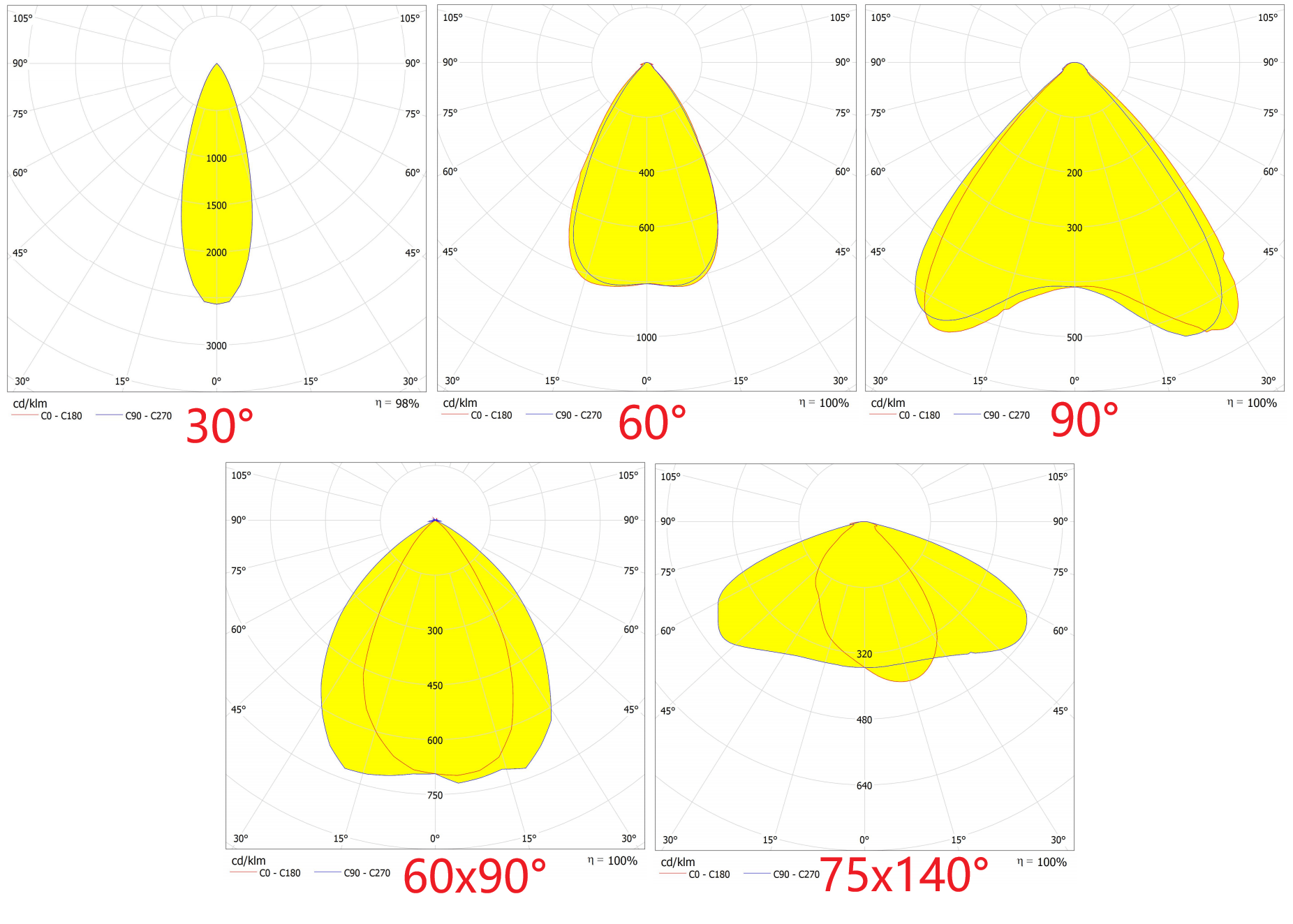

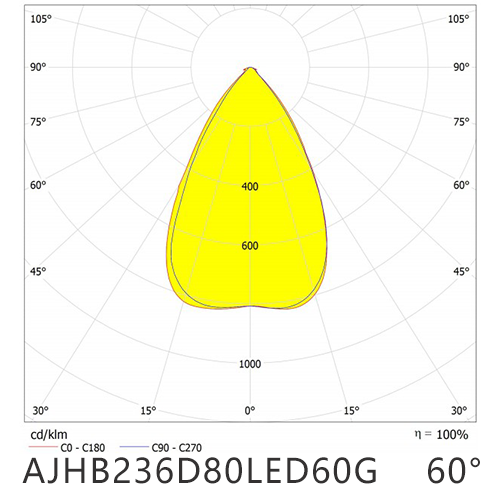

Distribution
Specifications
| Model: | AJHB236D80LED |
| Diameter: | 236mm |
| Height: | 7.2mm, 6.9mm |
| Angle: | 30°, 60°, 90°, 60x90°, 75x140° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | High Bay lighting, Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
236x70mm IP66 80LEDs LENS with beam angles of 30°, 60°, 90°, 60x90°, 75x140°
✔ Multiple beam angles in one lens design for flexibility.
✔ High IP66 rating for harsh environments.
1, The lens is available in multiple beam angles to suit different lighting scenarios:

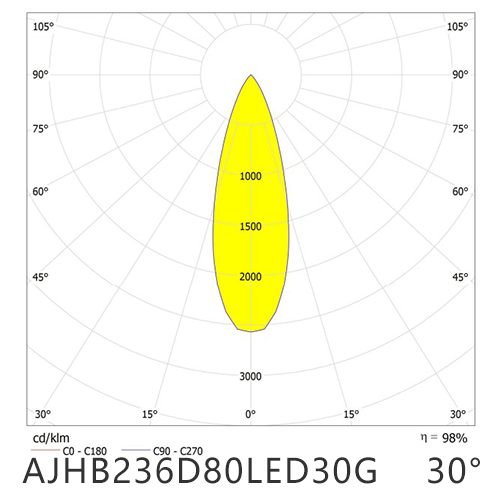

30° (Narrow Spot): Focused beam for accent lighting, signage, or pathway highlights.
60° (Spot): Balanced beam for general area lighting (e.g., walkways, retail displays).

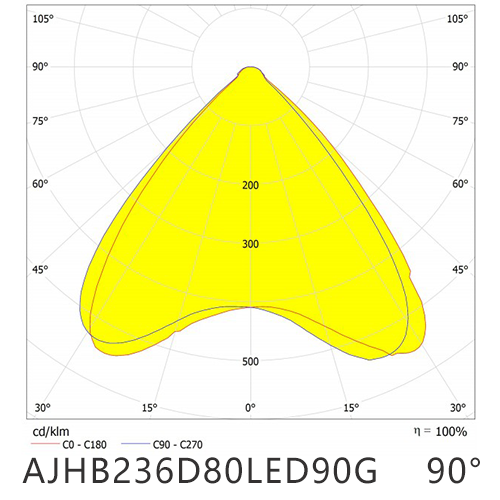

90° (Flood): Wide illumination for wall washing or broad coverage (e.g., parking lots).

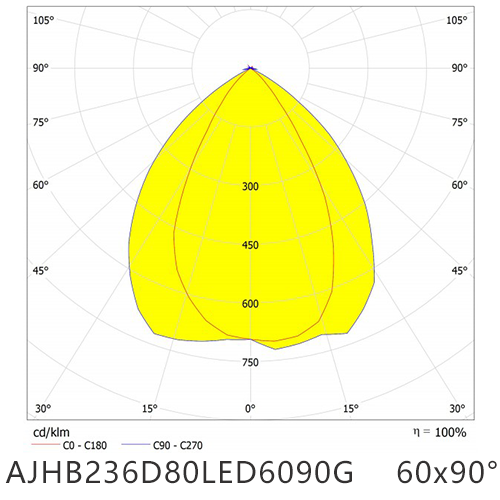

60x90° (Elliptical/Oval): Asymmetric distribution for street lighting or architectural accents.

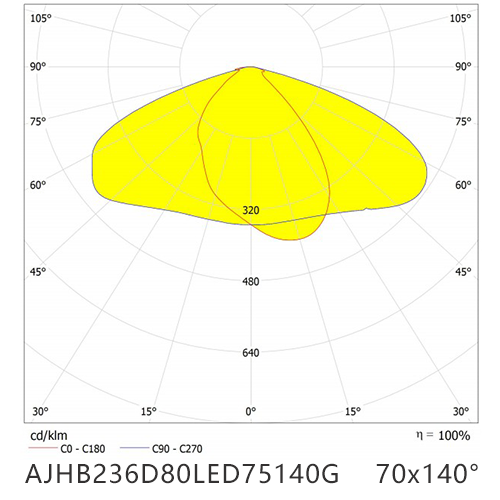

75x140° (Extra-Wide Oval): Ultra-wide spread for façade lighting or large-area coverage.

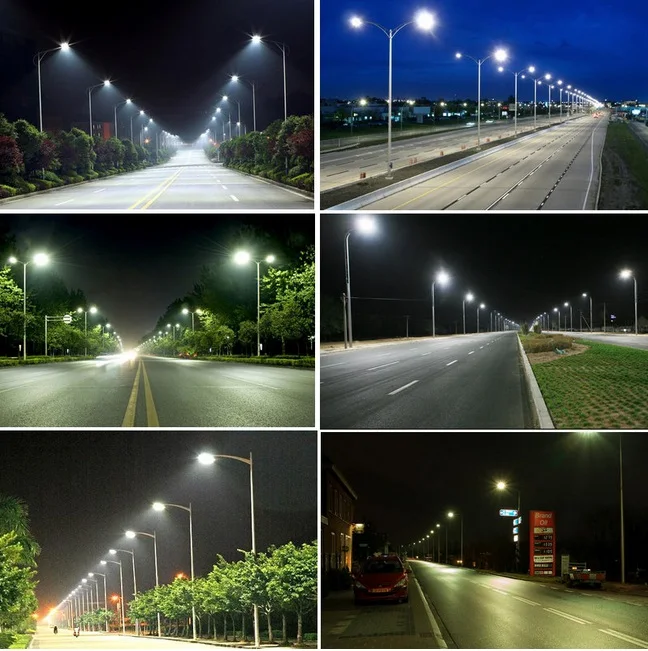

2, Applications
Outdoor Lighting: Streetlights, bollards, canopy lights (IP66 ensures weather resistance).
Architectural Lighting: Facade illumination, step lighting, landscape lighting.
Industrial/Commercial: Warehouse aisles, parking garages, signage backlighting.
AJHB236D80LED30G 3D Drawing.stp
AJHB236D80LED60G 3D Drawing.stp
AJHB236D80LED90G 3D Drawing.stp
AJHB236D80LED6090G 3D Drawing.stp
AJST236D80LED75140G 3D Drawing.stp
AJHB236D80LED30G 2D Drawing.dwg
AJHB236D80LED60G 2D Drawing.dwg
AJHB236D80LED90G 2D Drawing.dwg
AJHB236D80LED6090G 2D Drawing.dwg
AJST236D80LED75140G 2D Drawing.dwg
AJHB236D80LED PCB Drawing
AJHB236D80LED30G.ies
AJHB236D80LED60G.ies
AJHB236D80LED90G.ies
AJHB236D80LED6090G.ies
AJST236D80LED75140G.ies
