8LEDs Lens for High bay lighting 90°

Model: AJHB50D8LED90G

Diameter: 50x50mm

Height: 6.2mm

Angle: 90°

Material: PC

Transmittance: 88%

LED Type: 5050LED

Lighting Applications: High bay lighting

1. The 50x50mm 8LED Lens 90° is designed with a wide 90-degree beam angle, providing uniform and broad light distribution.

2. 50mm dimension and high-performance optics make it easy to integrate into different lighting fixtures, offering reliable and efficient lighting solutions across multiple sectors.

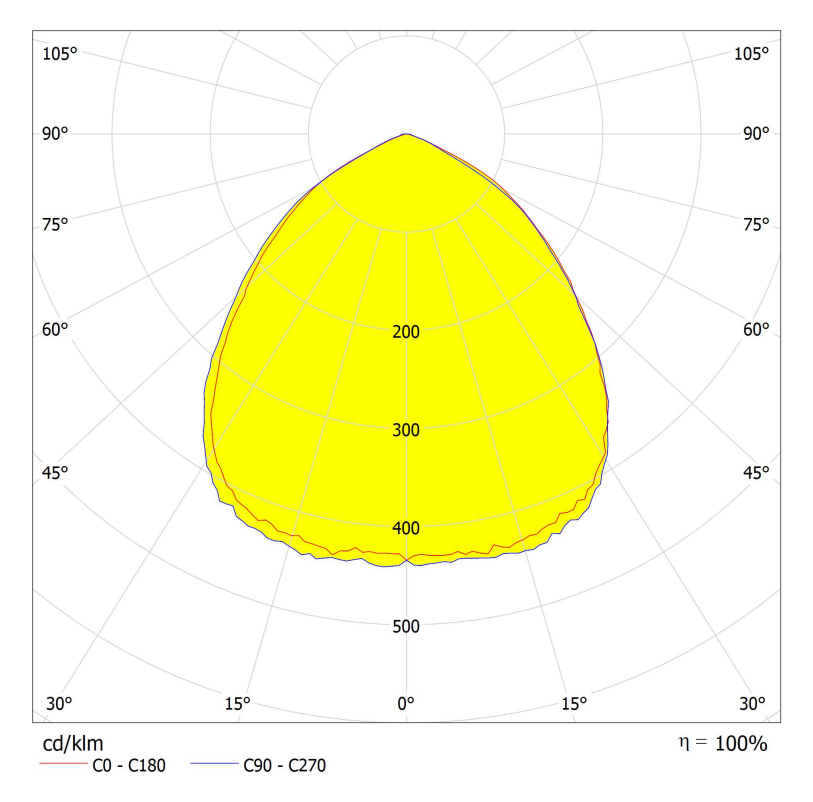

Distribution

Specifications

Model:	AJHB50D8LED90G
Diameter:	50x50mm
Height:	6.2mm
Angle:	90°
Material：	PC
Transmittance：	＞88%
LED Type	5050LED
Lighting applications	High bay lighting

LED Type

JR5005C 6-V E

DURIS S 8

LUXEON 5050 Square

NVAW144AR

NVAW144AM

Xl5050LED

EMC5050LED

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

1. The 50x50mm 8LED Lens 90° is designed with a wide 90-degree beam angle, providing uniform and broad light distribution.

2. 50mm dimension and high-performance optics make it easy to integrate into different lighting fixtures, offering reliable and efficient lighting solutions across multiple sectors.

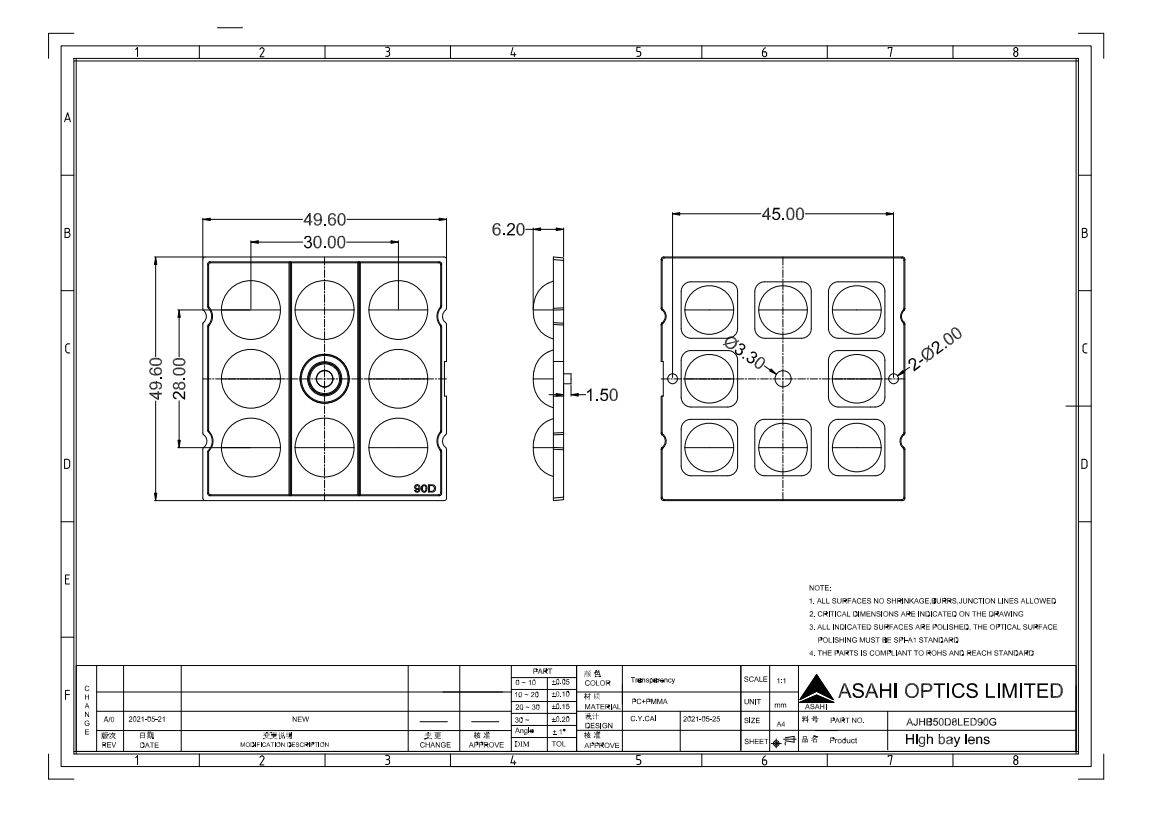

Asahi Optics AJHB50D8LED90G Drawing.dwg

Asahi Optics AJHB50D8LED90G Drawing.pdf

Asahi Optics AJHB50D8LED90G 5050LED.ies

Asahi Optics AJHB50D8LED90G 4x3030LED.ies

Asahi Optics AJHB50D8LED PCB Drawing.dwg

Asahi Optics AJHB50D8LED PCB Drawing.pdf
