Model: ALST50D16LEDT4S
Diameter: 50x50mm
Height: 2.30
Angle: T4S
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030LED
Lighting Applications:
1. 50mm 16in1 3030LED Type IV beam angle Lens
2. Suitable for long-distance lighting: Due to the narrow and long beam distribution characteristics of the Type IV beam angle lens, it is suitable for long-distance lighting.
3. For example, it is used to illuminate roads or large parking lots and other places where long-distance lighting is required. It can effectively project light to a distance, providing sufficient lighting intensity and coverage.

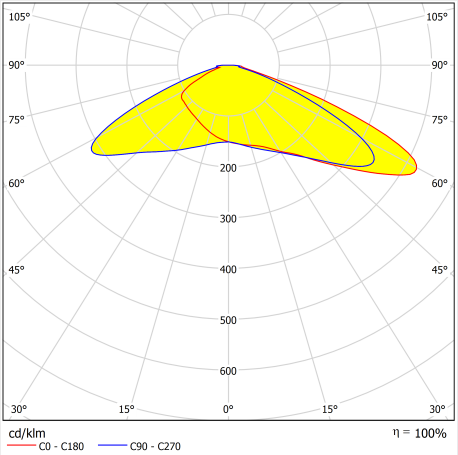

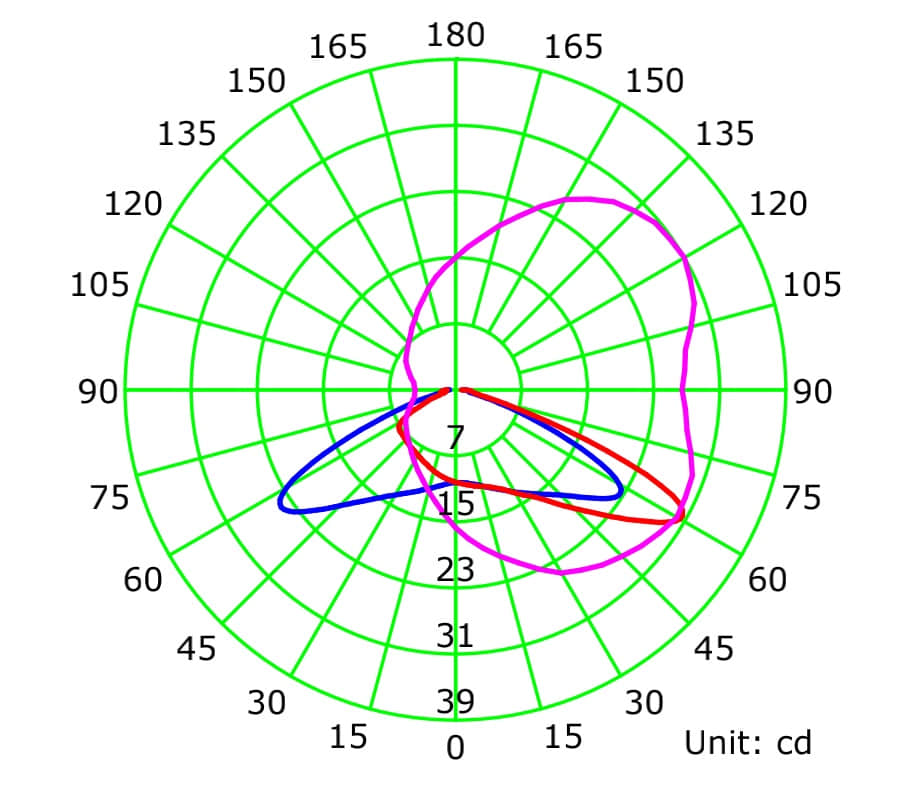

Distribution
Specifications
| Model: | ALST50D16LEDT4S |
| Diameter: | 50x50mm |
| Height: | 2.3mm |
| Angle: | T4S |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Area lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

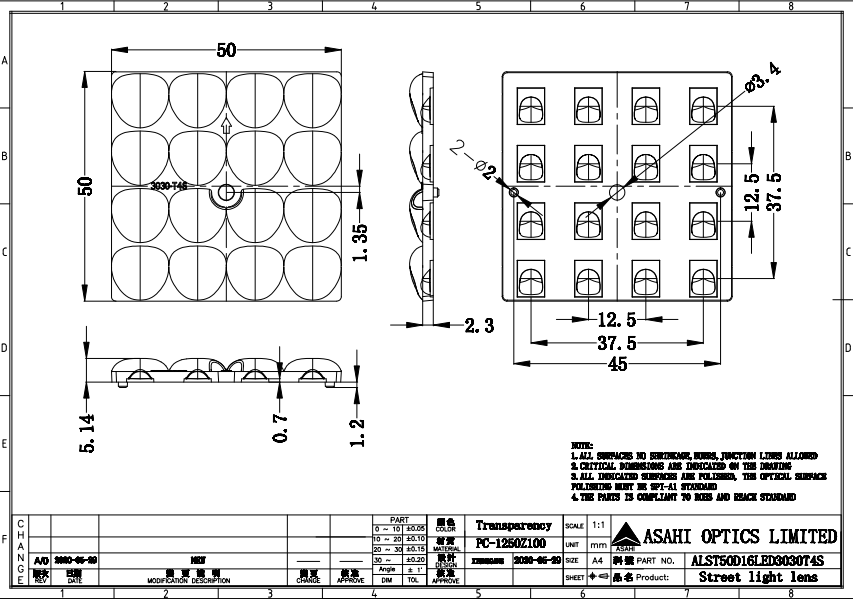

ASAHI OPTICS ALST50D16LEDT4S Drawing.dwg
ASAHI OPTICS ALST50D16LEDT4S Drawing.pdf
ASAHI OPTICS ALST50D16LEDT4S Test Report.pdf
ASAHI OPTICS ALST50D16LEDT4S lens IES.ies
