Model: ALHB173D24LED30G
Diameter: 173mm
Height: 11.09mm
Angle: 30°
Material: PC
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: High Bay lighting

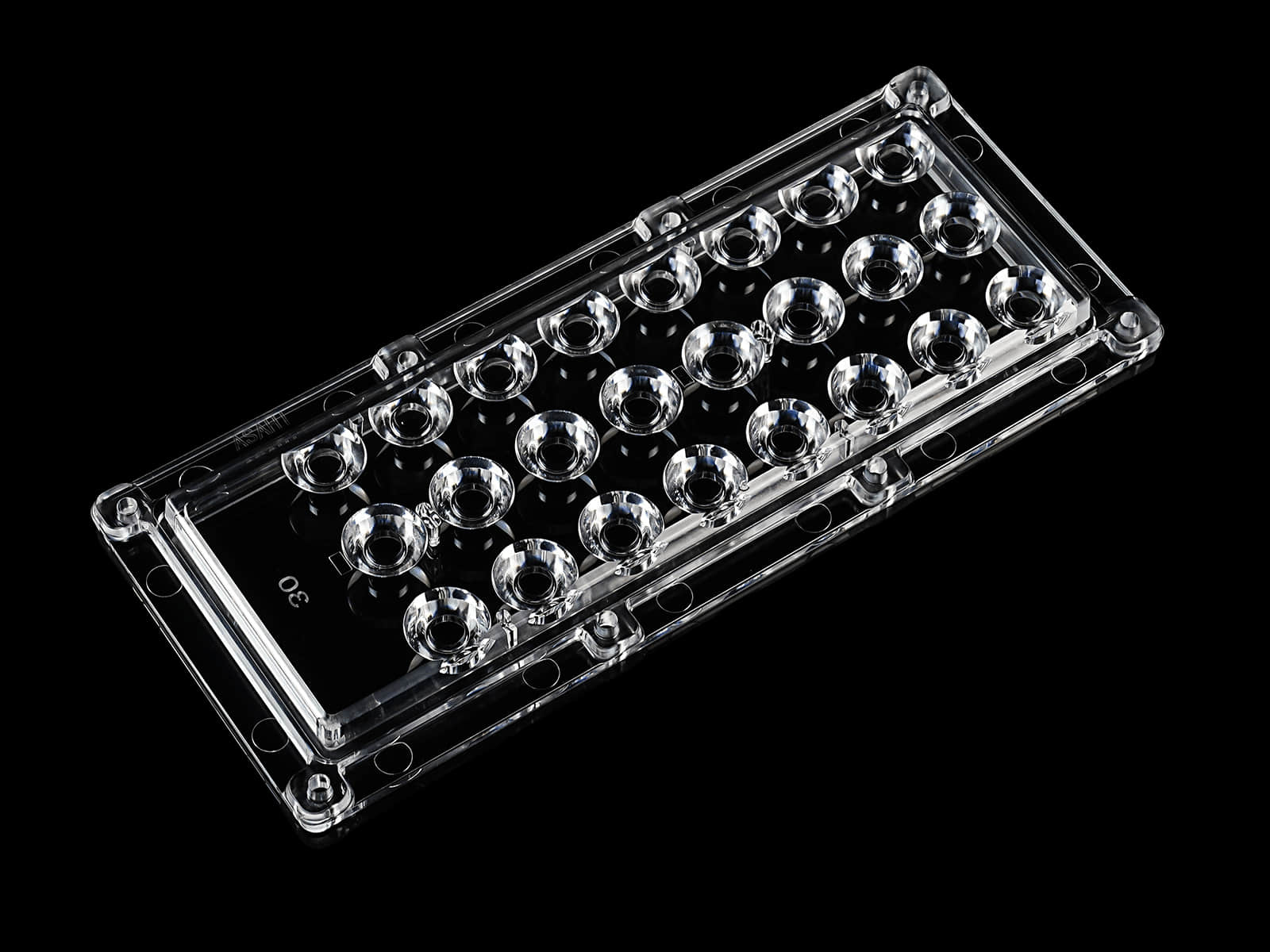

1. The 173mm IP66 3X8 24LEDs LENS 30° with high power 100W LED light is designed specifically for high bay lighting applications.
2. It features a compact design with three rows of eight optical surface.
3. The lens has a 30 degree beam angle, which can focus the light in a cone-shaped pattern that is 30 degrees wide. This allows for precise control of the light output and can be used in a variety of applications, such as in architectural lighting, stage lighting, or outdoor illumination.

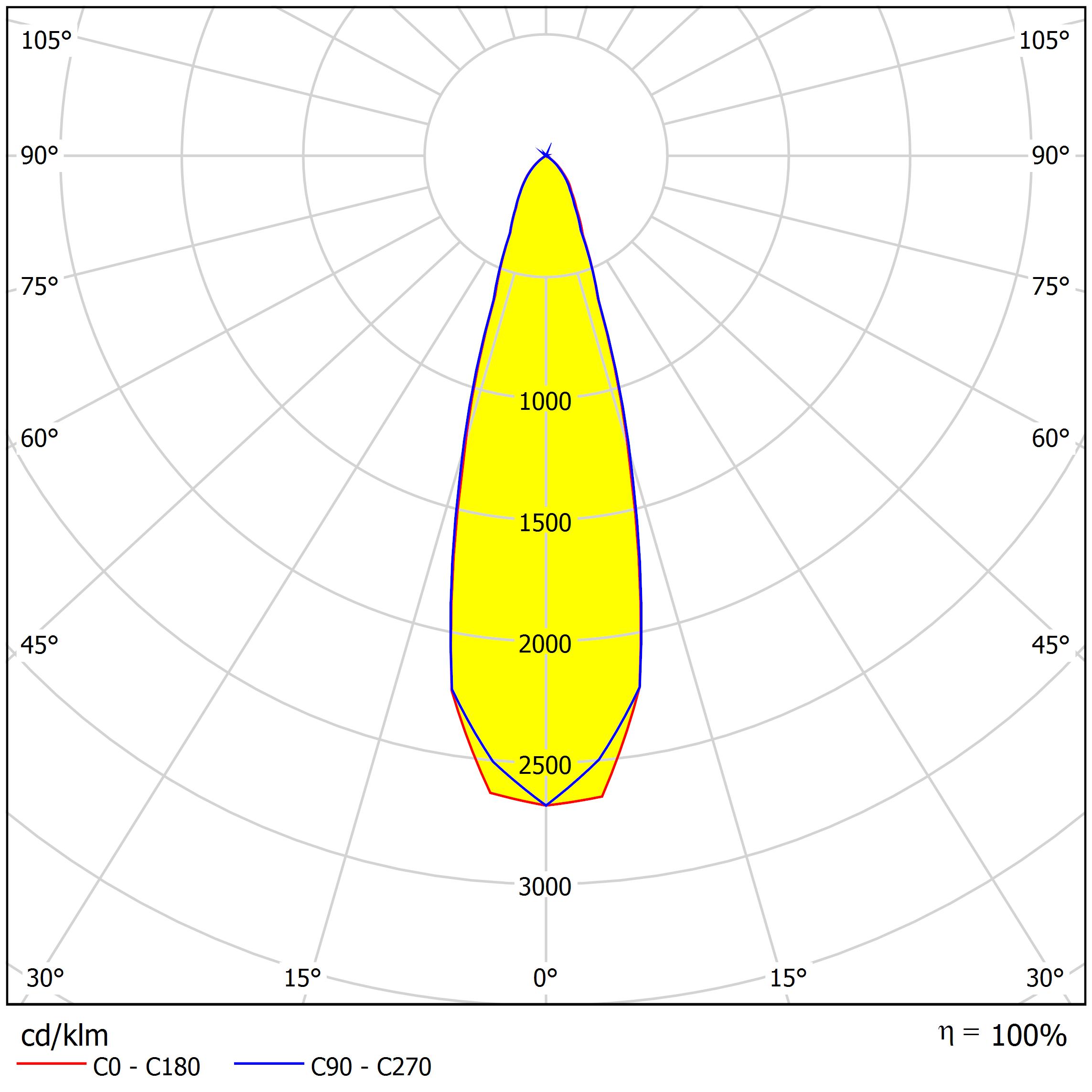

Distribution
Specifications
| Model: | ALHB173D24LED30G |
| Diameter: | 173mm |
| Height: | 11.09mm |
| Angle: | 30° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
It shares the same profile 173mmx71.4mm as the 2x6 lens does
The beam angle is available for street light T2M, T5, and high bay lighting 30°, 60°，90°, 120°, 30x90°
The high efficiency and powerful lumen output to meet customers’ required power
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED

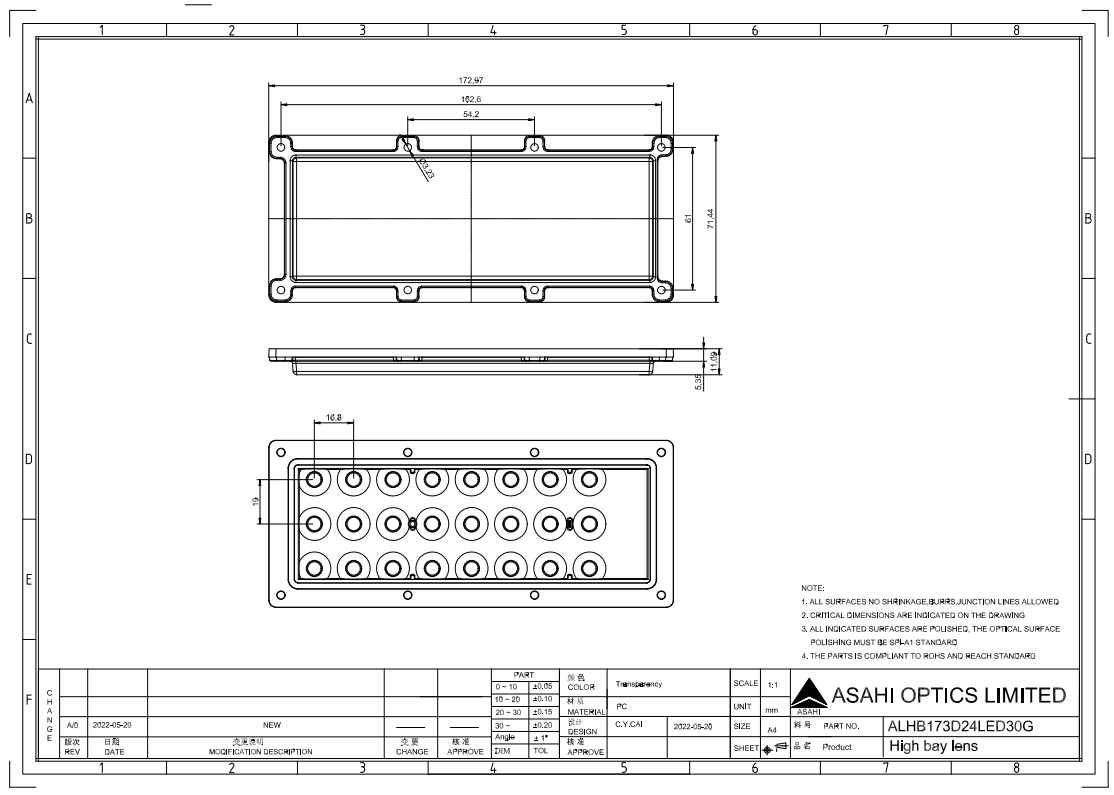

ASAHI OPTICS ALHB173D24LED30G Drawing.dwg
ASAHI OPTICS ALHB173D24LED30G Drawing.pdf
ASAHI OPTICS ALHB173D24LED PCB Drawing
ASAHI OPTICS 3X8 LENS LED BOARD.jpg
ASAHI OPTICS ALHB173D24LED30G-1x5050LED lens IES.ies
