Model: ALHB173D12LED90G
Size: 173x71.4(mm)
Height: 11.85mm
Angle: 90°
Material: PMMA
Transmittance: >93%
LED Type: 5050LED
Lighting Applications: High Bay Lighting
1. 2x6-90degree lens is made of high quality PMMA material,ensuring exceptional optical performance and durability.
2. Coupled with the 90° wide beam angle, it provides focused and efficient light distribution, making it ideal for flood lighting, high bay lighting, and stadium lighting.
3. Designed with a TIR (Total Internal Reflection) structure,enhance light transmission efficiency by utilizing total internal reflection, ensuring that light is effectively focused or uniformly distributed.

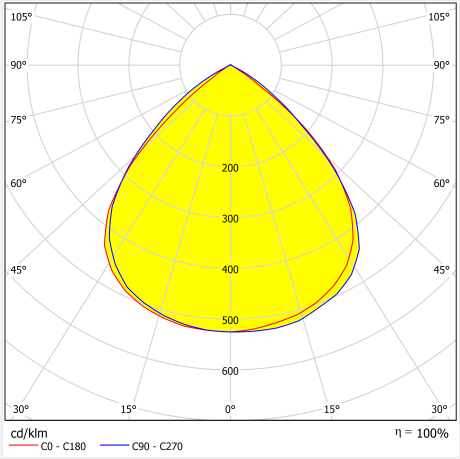

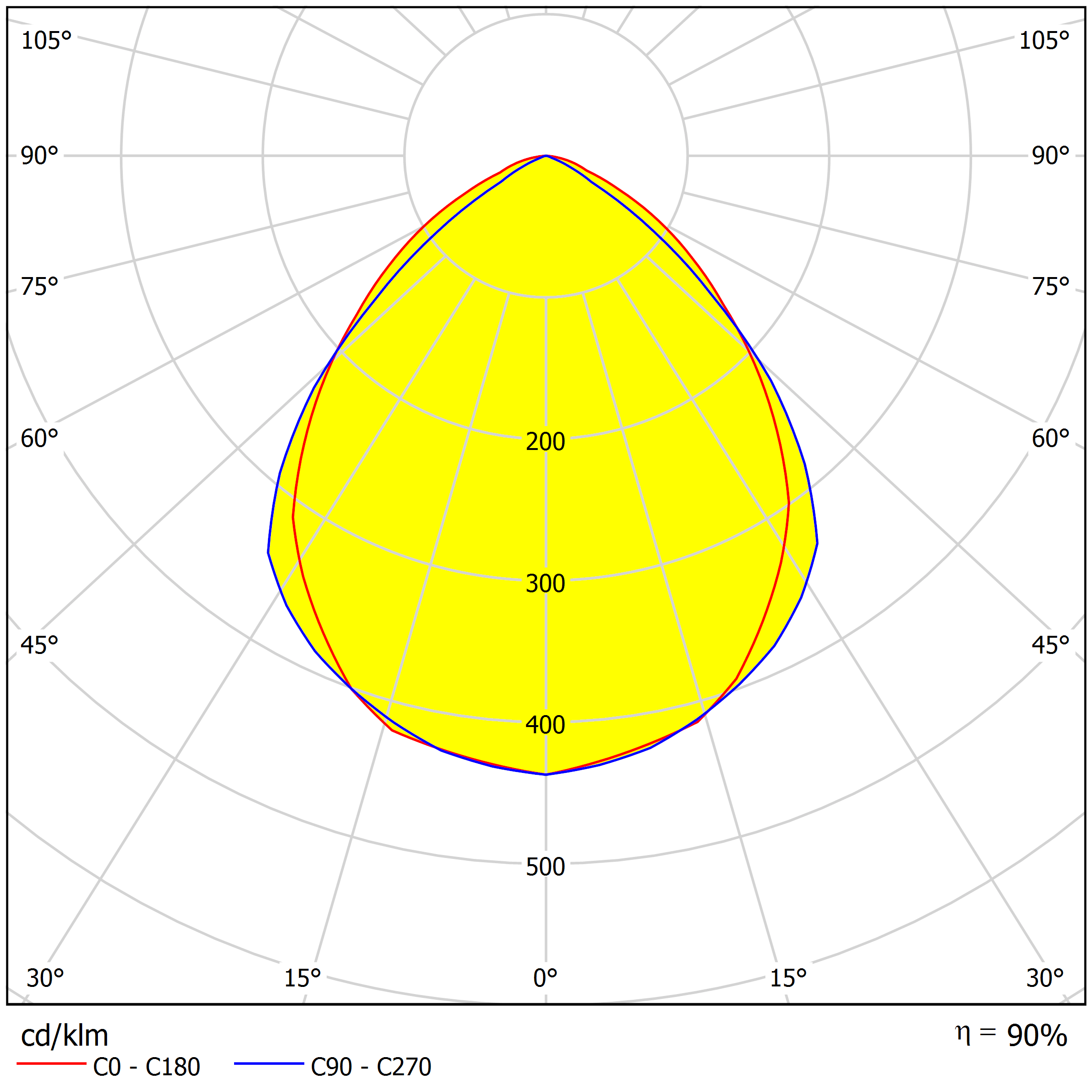

Distribution
Specifications
| Model: | ALHB173D12LED90G |
| Size: | 173x71.4(mm) |
| Height: | 11.85mm |
| Angle: | 90 ° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 5050LED |
| Lighting applications | High Bay Lighting,Sport lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

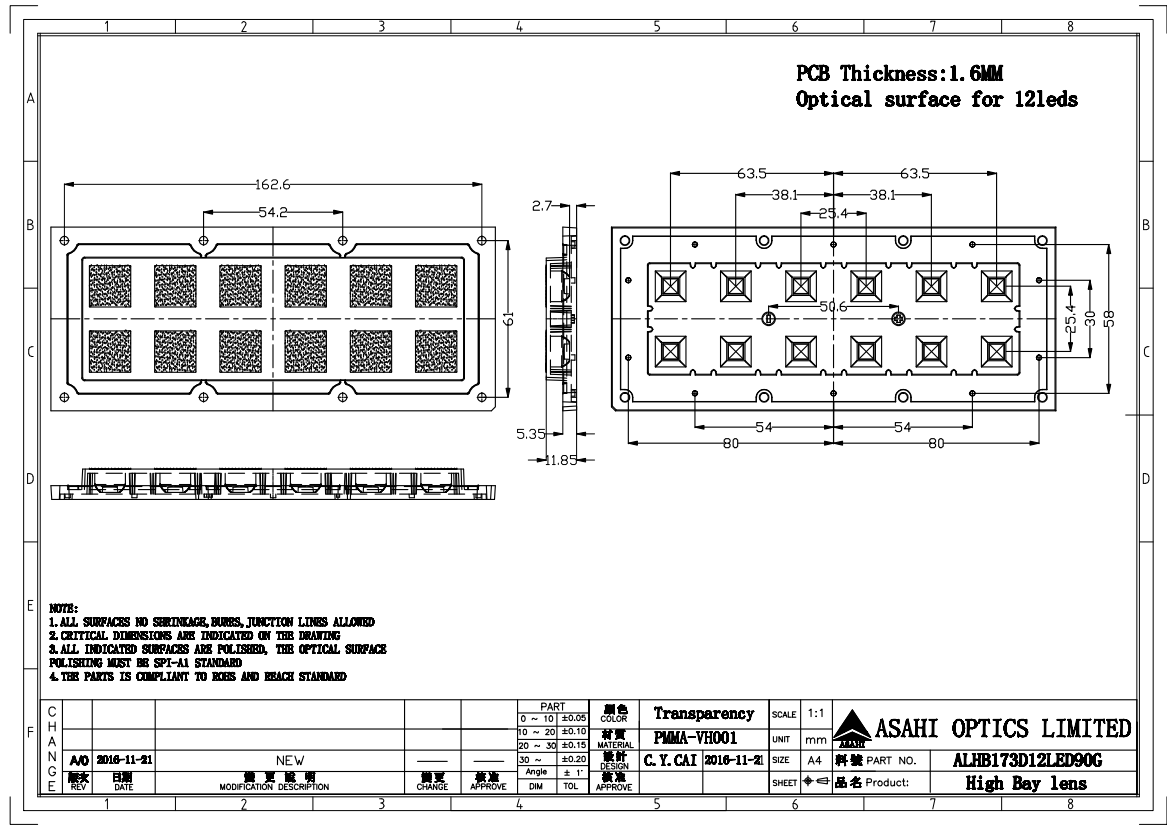

ASAHI OPTICS ALHB173D12LED90G Drawing.dwg
ASAHI OPTICS ALHB173D12LED90G Drawing.pdf
