Model: ALST50D16LEDT3M
Diameter: 50x50mm
Height: 4.4
Angle: T3M
Material: PC-1250Z TEIJIN
Transmittance: >93%
LED Type: 3030LED
Lighting Applications:
1. 50mm Ourdoor Street Lighting 16LED T2M-D Asymmetric, LED spacing is 12.5mm.
2. The lens is structured with a baffle that reduces the Backlight.,
3. By blocking the light behind the pole, adding a baffle can improve the utilization of light, effectively guide and project more light to the target area, and provide a higher lighting effect.

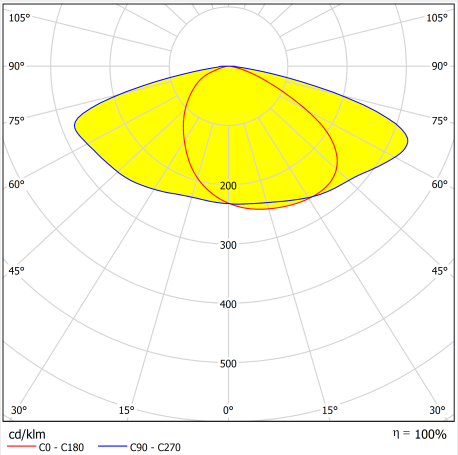

Distribution
Specifications
| Model: | ALST50D16LEDT3M |
| Diameter: | 50x50mm |
| Height: | 4.4mm |
| Angle: | T3M |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

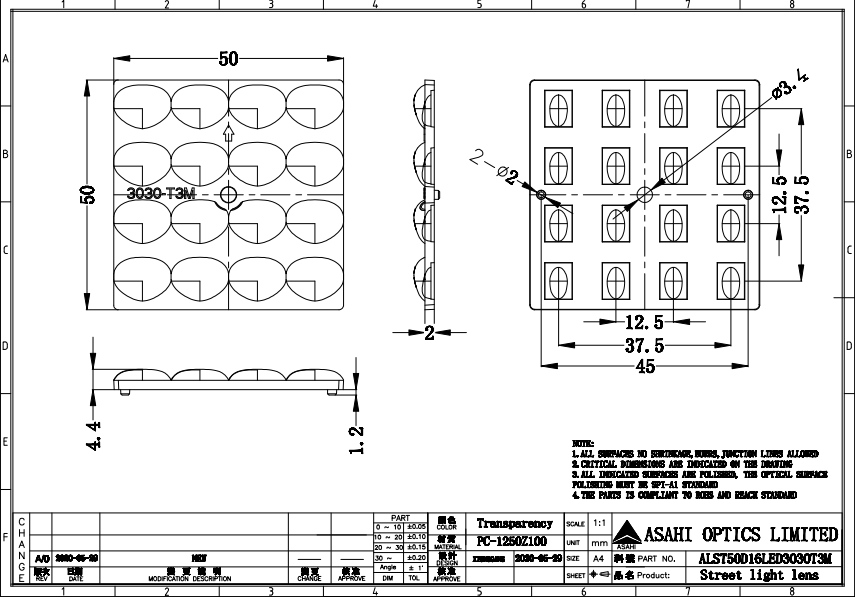

ASAHI OPTICS ALST50D16LED3030T3M Drawing.pdf
ASAHI OPTICS ALST50D16LED3030T3M Test Report.pdf
