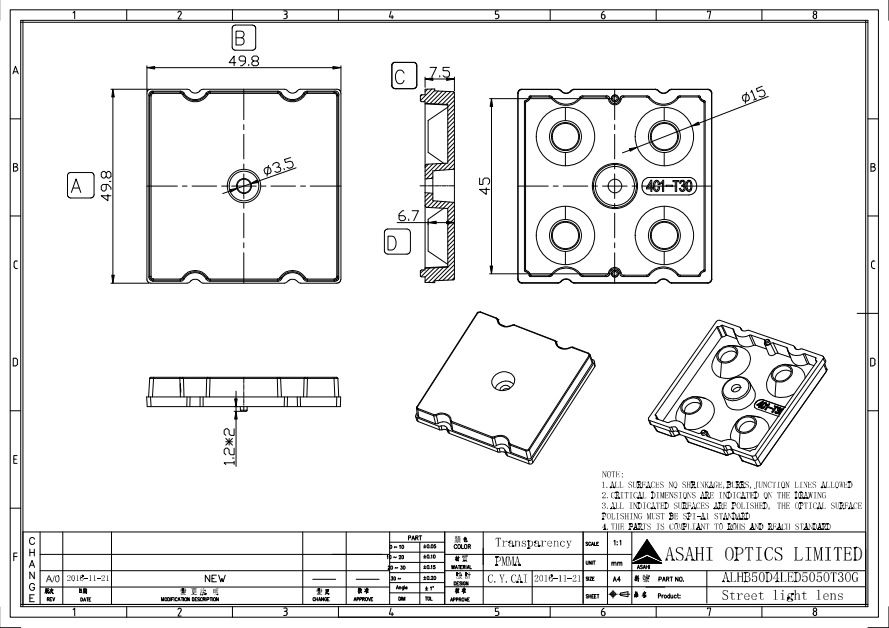

Model: ALHB50D4LED5050T30G
Diameter: 50x50mm
Height: 7.5mm
Angle: 30°
Material: PC-1250Z
Transmittance: >90%
LED Type: 5050LED

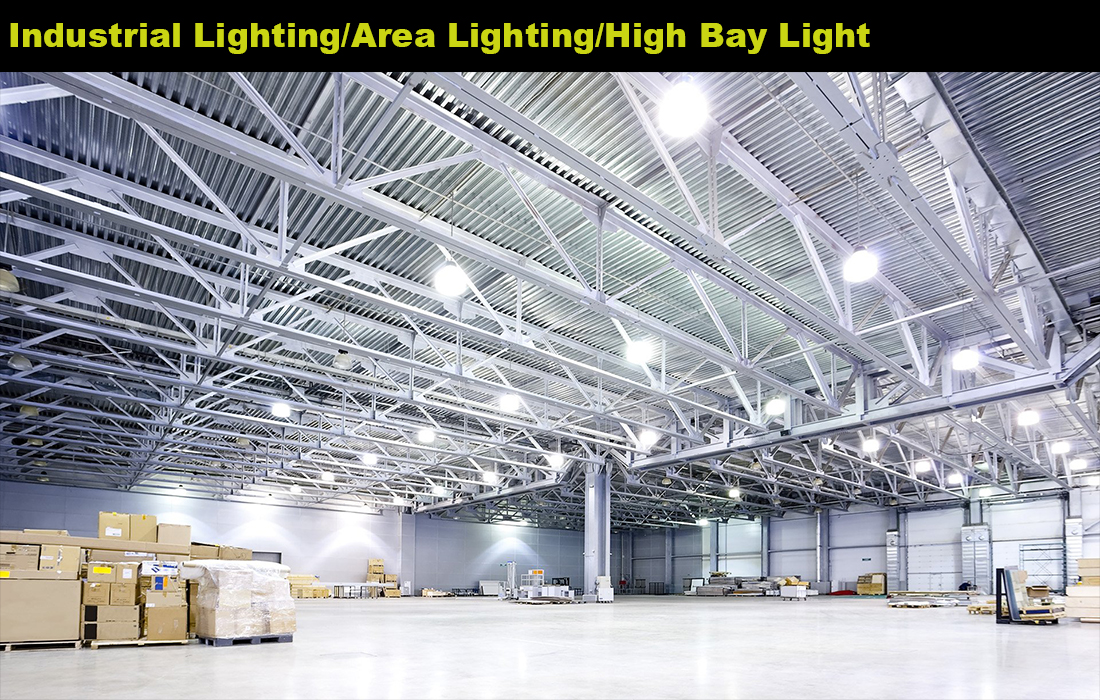

Lighting Applications: Architecture lighting,High Bay lighting

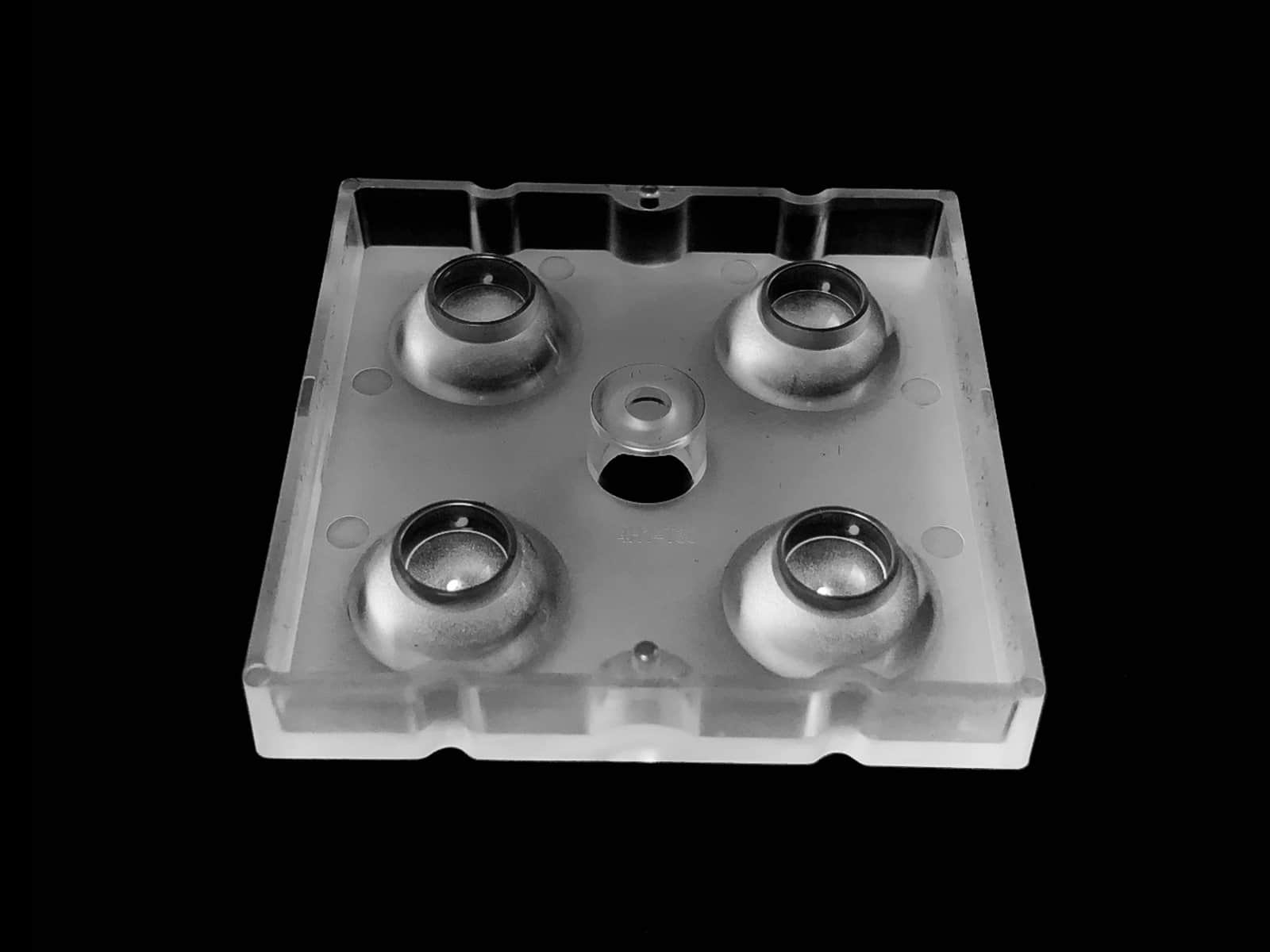

1. The 2x2 30° floodlight lens is designed with a TIR (Total Internal Reflection) structure,enhance light transmission efficiency by utilizing total internal reflection, ensuring that light is effectively focused or uniformly distributed.
2.It is suitable for flood lighting, high bay lighting,stadium lighting etc.
3. Designed for simple and hassle-free installation, reducing labor costs and time during setup.

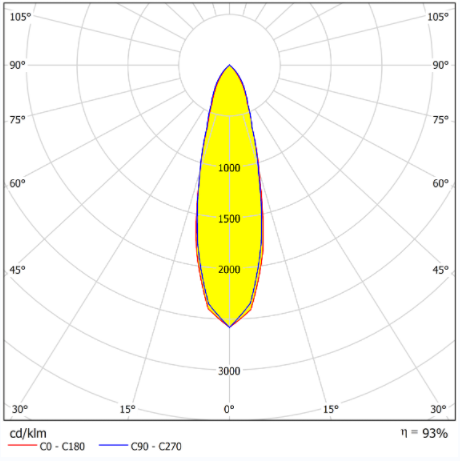

Distribution
Specifications
| Model: | ALHB50D4LED5050T30G |
| Diameter: | 50x50mm |
| Height: | 7.5mm |
| Angle: | 30° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | Architecture lighting,High Bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x2 30° floodlight lens is designed with a TIR (Total Internal Reflection) structure,enhance light transmission efficiency by utilizing total internal reflection, ensuring that light is effectively focused or uniformly distributed.
2.It is suitable for flood lighting, high bay lighting,stadium lighting etc.
3. Designed for simple and hassle-free installation, reducing labor costs and time during setup.
