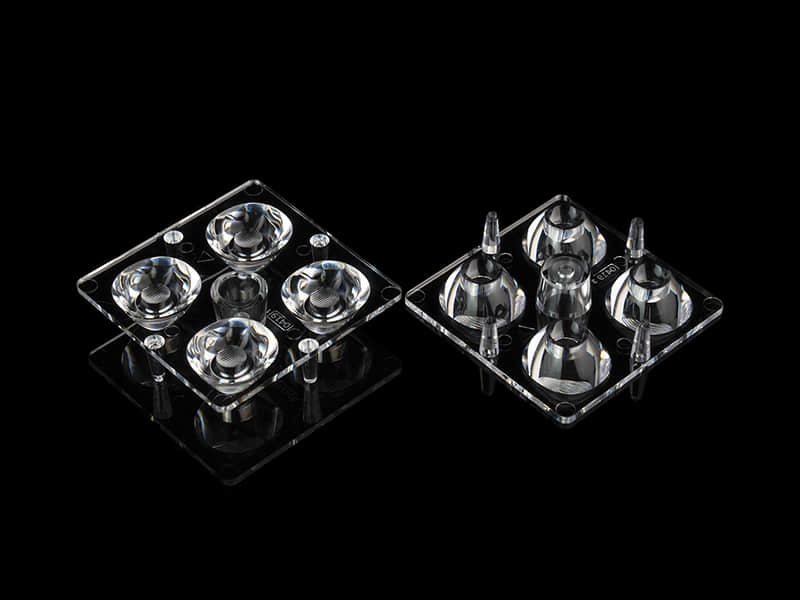

Model: ALSP50D4LED5050T1VS
Diameter: 50x50mm
Height: 10.7mm
Angle: TypeI VS
Material: PMMA
Transmittance: >93%
LED Type: 5050LED

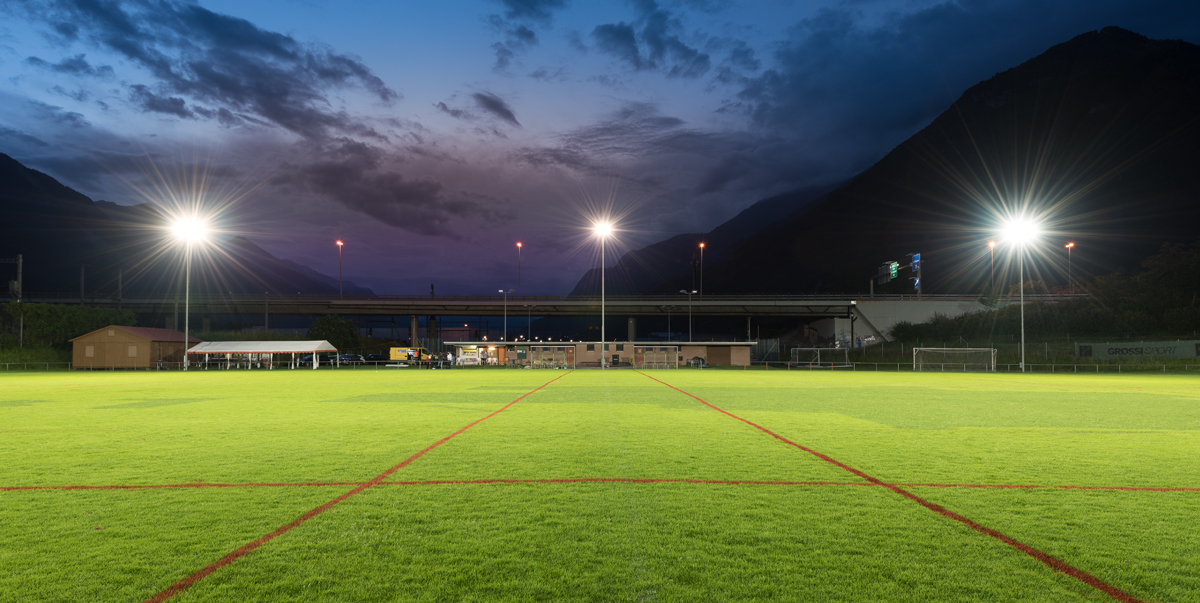

Lighting Applications: Sport Lighting
1.The design of TYPE I-Very Short sport light lenses helps reduce glare, providing a comfortable viewing experience for both athletes and spectators.
2.2x2 sport lenses are versatile and can be applied to different sports fields, providing tailored illumination for activities such as tennis, basketball, or volleyball.
3.The 2x2 sport lens contributes to energy-efficient lighting solutions, reducing power consumption and operational costs.

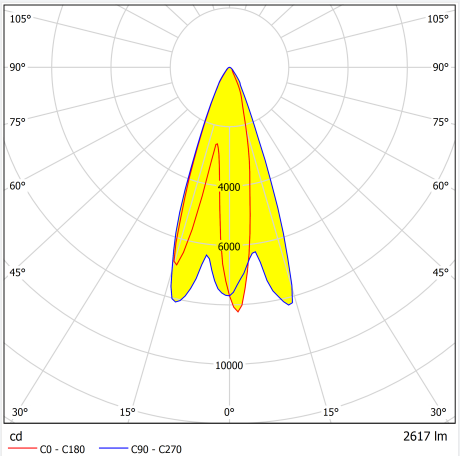

Distribution
Specifications
| Model: | ALSP50D4LED5050T1VS |
| Diameter: | 50x50mm |
| Height: | 10.7mm |
| Angle: | TypeI VS |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 5050 LED |
| Lighting applications | Sport Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.The design of TYPE I-Very Short sport light lenses helps reduce glare, providing a comfortable viewing experience for both athletes and spectators.
2.2x2 sport lenses are versatile and can be applied to different sports fields, providing tailored illumination for activities such as tennis, basketball, or volleyball.
3.The 2x2 sport lens contributes to energy-efficient lighting solutions, reducing power consumption and operational costs.

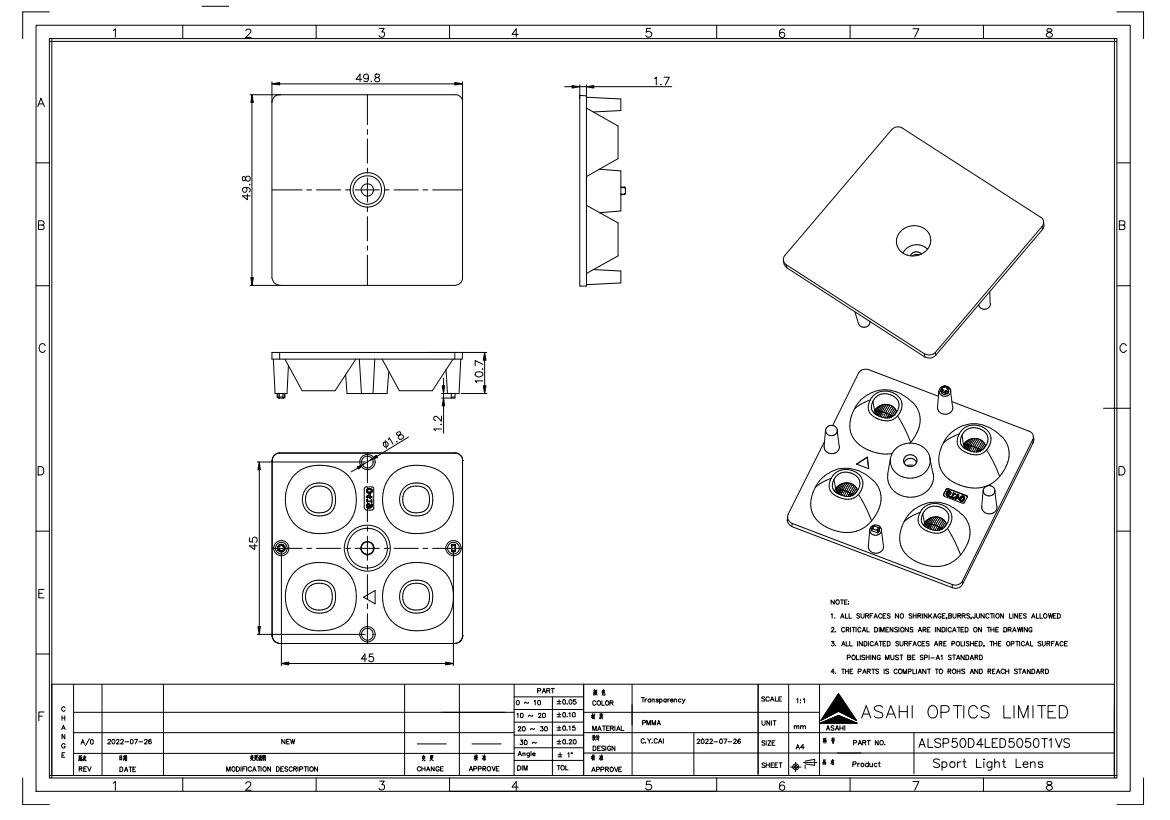

Asahi-Optics-ALSP50D4LED5050T1VS-Drawing.pdf
Asahi-Optics-ALSP50D4LED5050T1VS-Drawing.dwg
Asahi-Optics-ALSP50D4LED5050T1VS-PC-IES
Asahi-Optics-ALSP50D4LED5050T1VS 3D Drawing.stp
