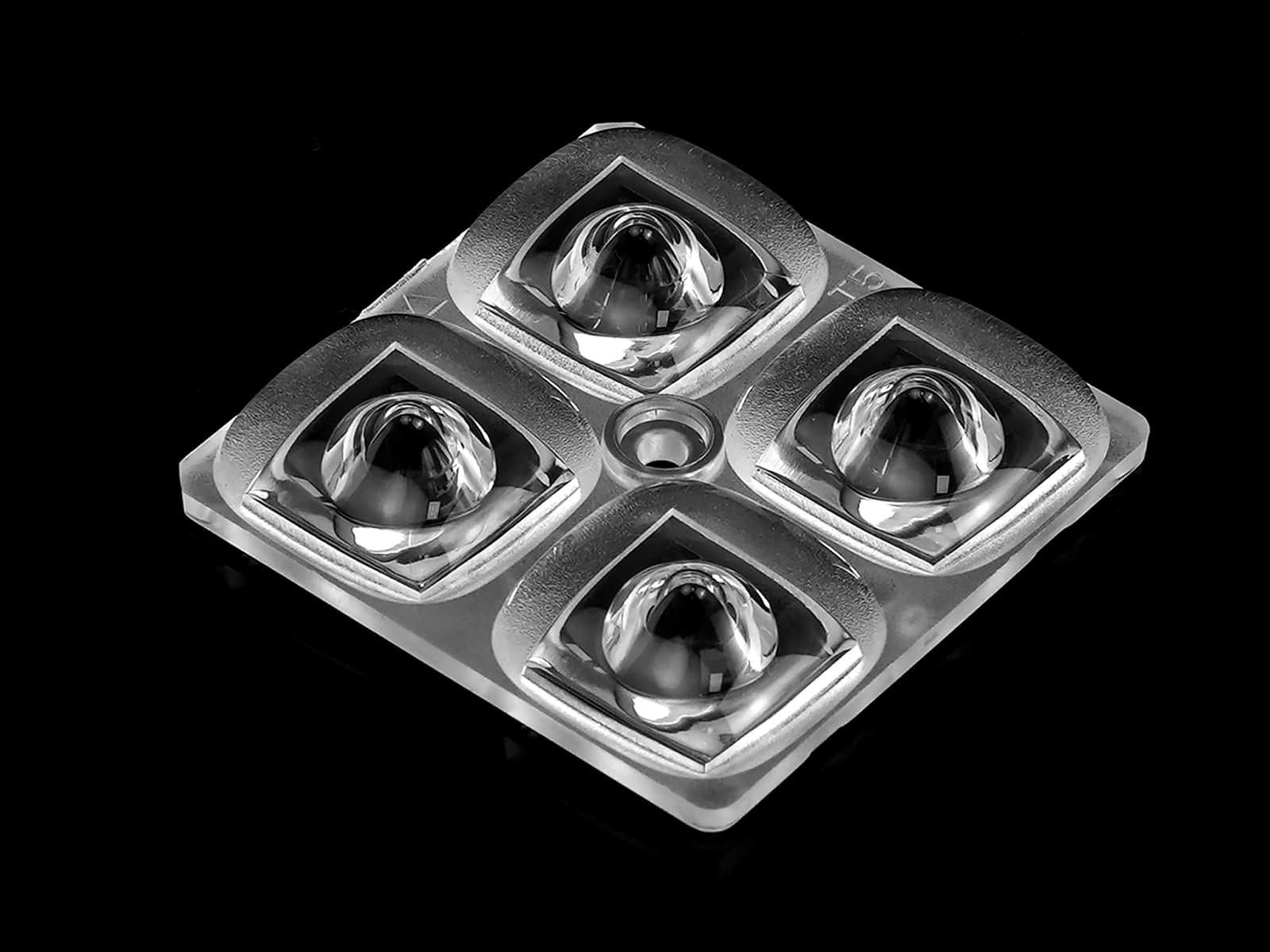

2x2 TypeV Wide Beam Parking Garage Light Lens

Model: ALST50D4LEDT5Q

Diameter: 50x50mm

Height: 8.8mm

Angle: T5

Material: PC

Transmittance: >88%

LED Type: 5050LED

Lighting Applications: Area Lighting

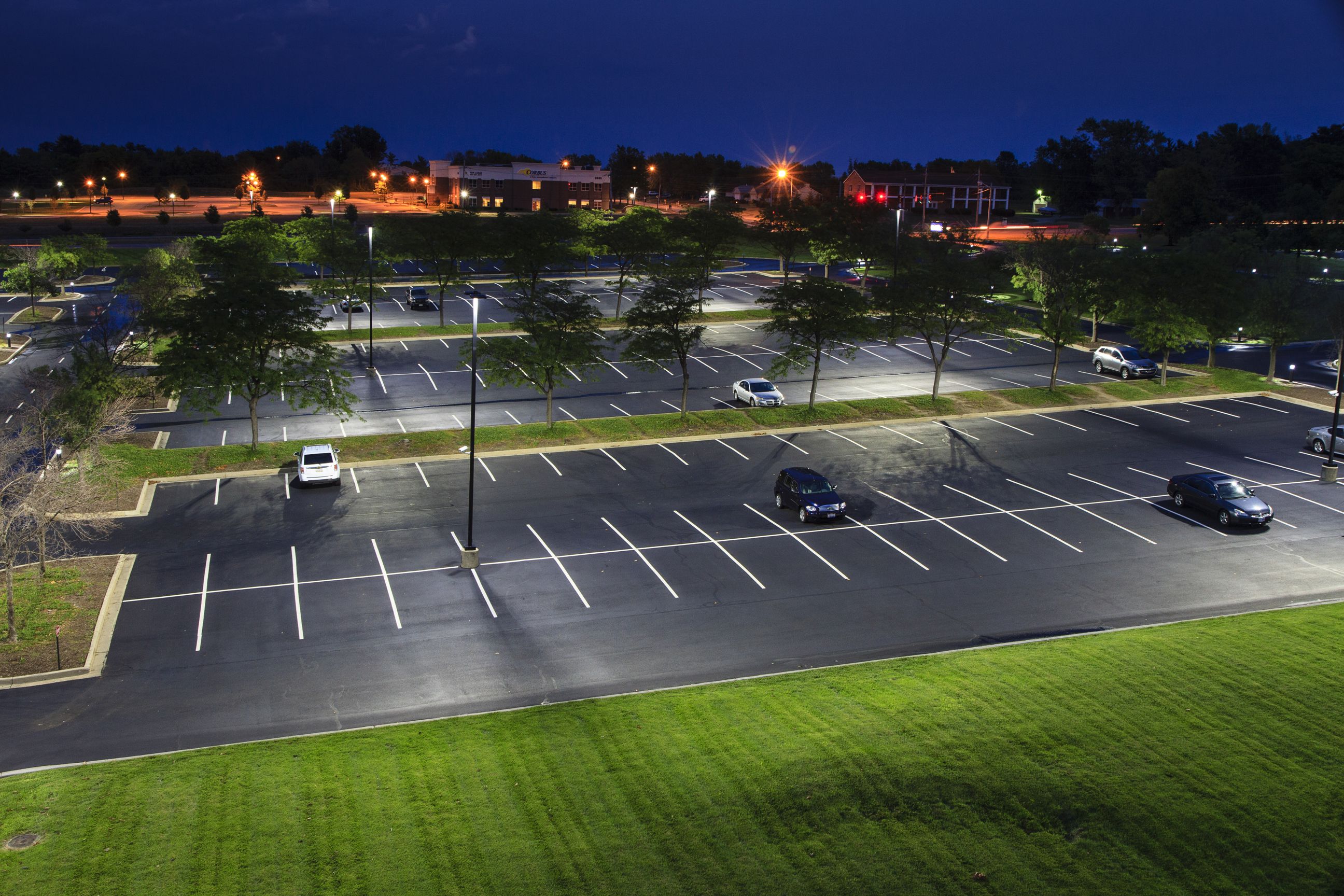

1. The 2x2 Type V lens provides a wide and uniform distribution of light, making it suitable for applications that require coverage over a large area, such as street lighting and parking lot illumination.

2. The uniform distribution helps reduce glare issues, improving the comfort and safety of nighttime driving and pedestrian activities.

3. Minimizes light loss and optical inefficiencies, maximizing the luminaire's overall efficiency and light output

2. The uniform distribution helps reduce glare issues, improving the comfort and safety of nighttime driving and pedestrian activities.

3. Minimizes light loss and optical inefficiencies, maximizing the luminaire's overall efficiency and light output

Specifications

Model:	ALST50D4LEDT5Q
Diameter:	50x50mm
Height:	8.8mm
Angle:	TypeV
Material：	PC
Transmittance：	>90%
LED Type	5050LED
Lighting applications	Area Lighting

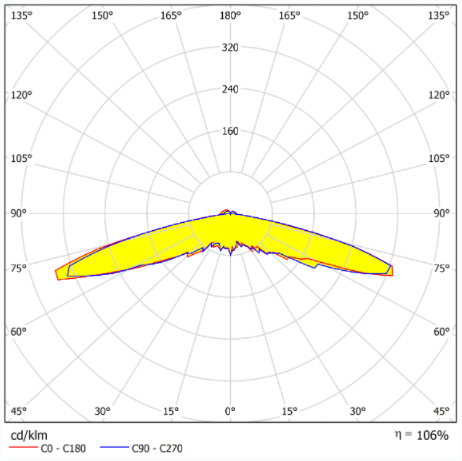

Light Distribution Curve

area lighting

ALST50D4LEDT5Q 773

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
