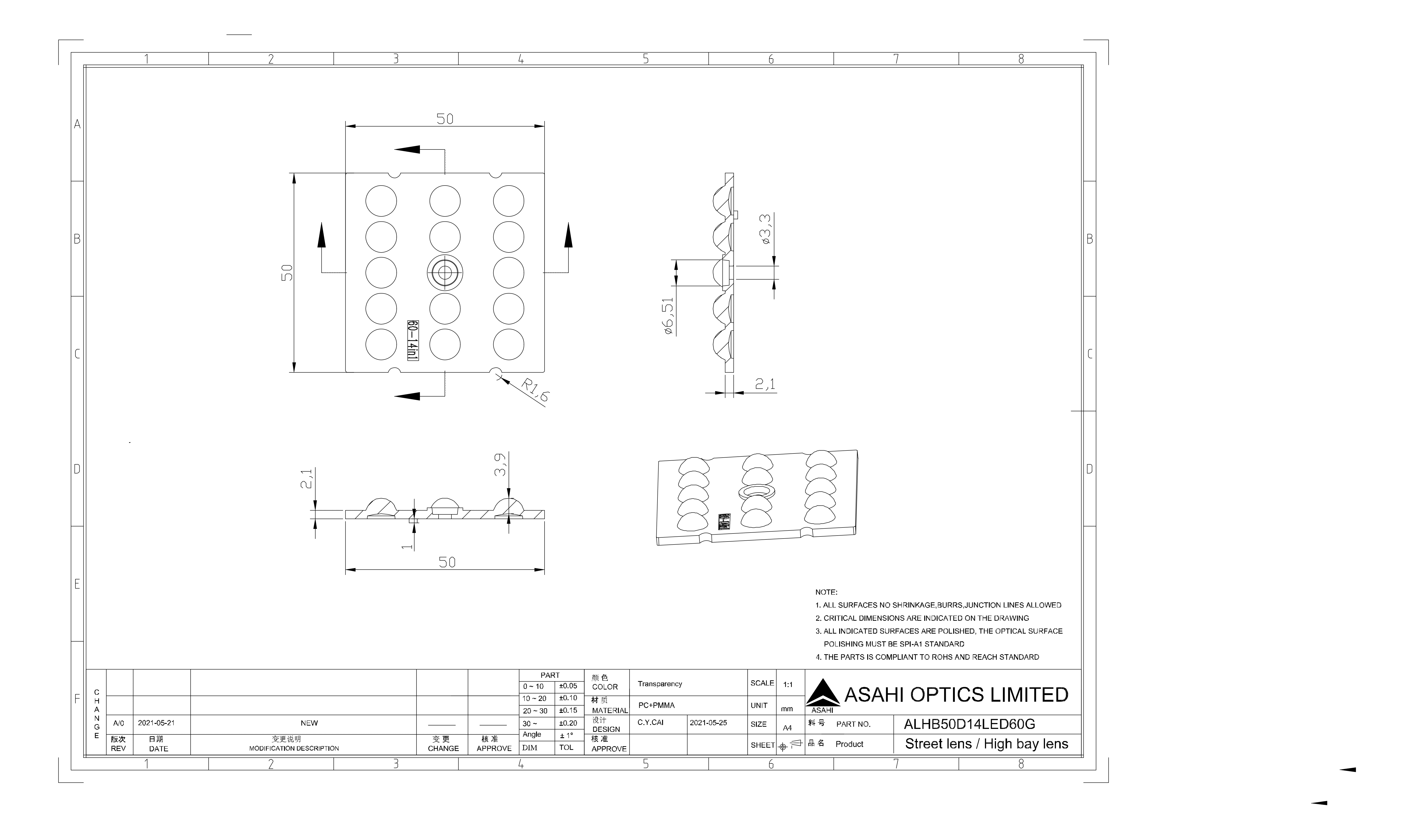

Model: ALHB50D14LED60G
Size: 50x50(mm)
Height: 3.9mm
Angle: 60°
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: Street lighting, High Bay light
1. Specifically designed for street lights and high bay lights, the 50×50mm square lens panel integrates 14 lens units.
2. The 60° beam angle balances coverage and intensity, suitable for medium‑height lighting scenarios.
3. Made of PC material with >88% transmittance, compatible with 2835/3030 LEDs. With a height of only 3.9mm, it is extremely thin and light, facilitating integration into compact luminaires and delivering uniform and efficient downward lighting.
Distribution
Specifications
| Model: | ALHB50D14LED60G |
| Size: | 50x50(mm) |
| Height: | 3.9mm |
| Angle: | 60° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Street lighting, High Bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
