Model: ASEL12D Series
Size: 12mm width
Height: -
Angle: 30°,40°,60°,145°,Asy25°,Asy45°
Material: 6063 T5 Aluminum + PMMA lens + Plastic Endcap
Transmittance: >90%
LED Type: 2835/3030/3535LED
Lighting Applications: Linear Lighting, Reatail ,corridor and shelf lighting

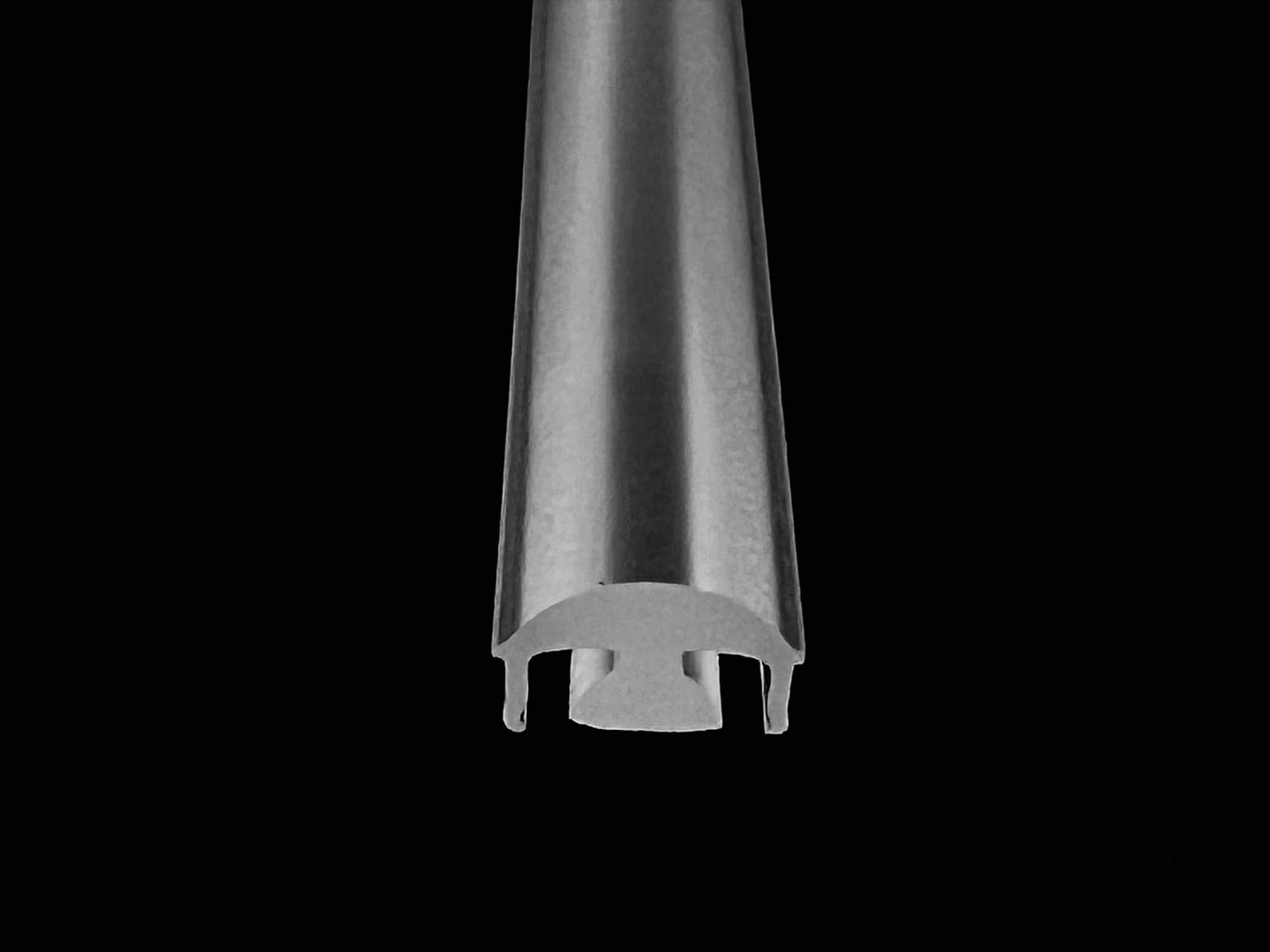

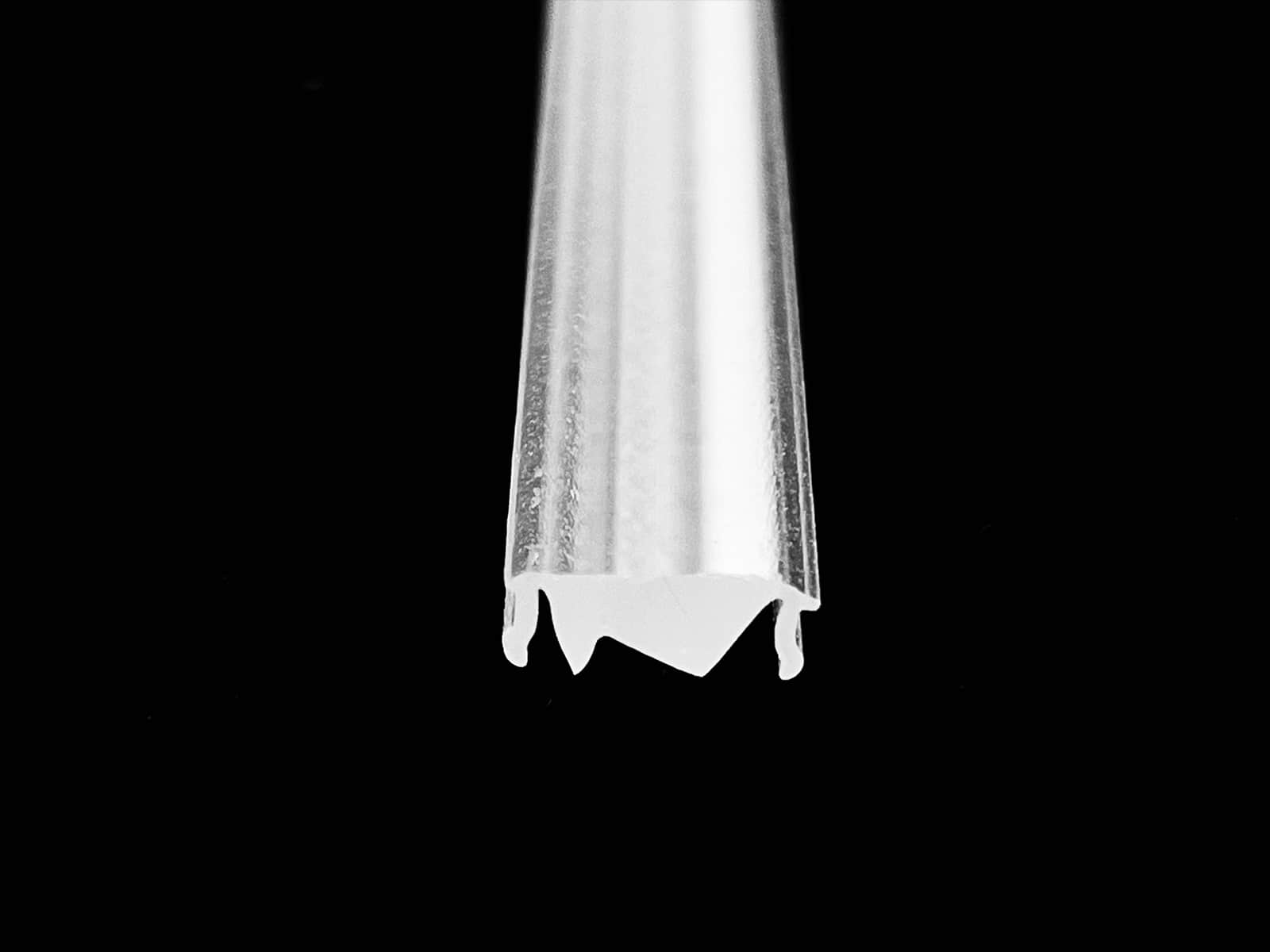

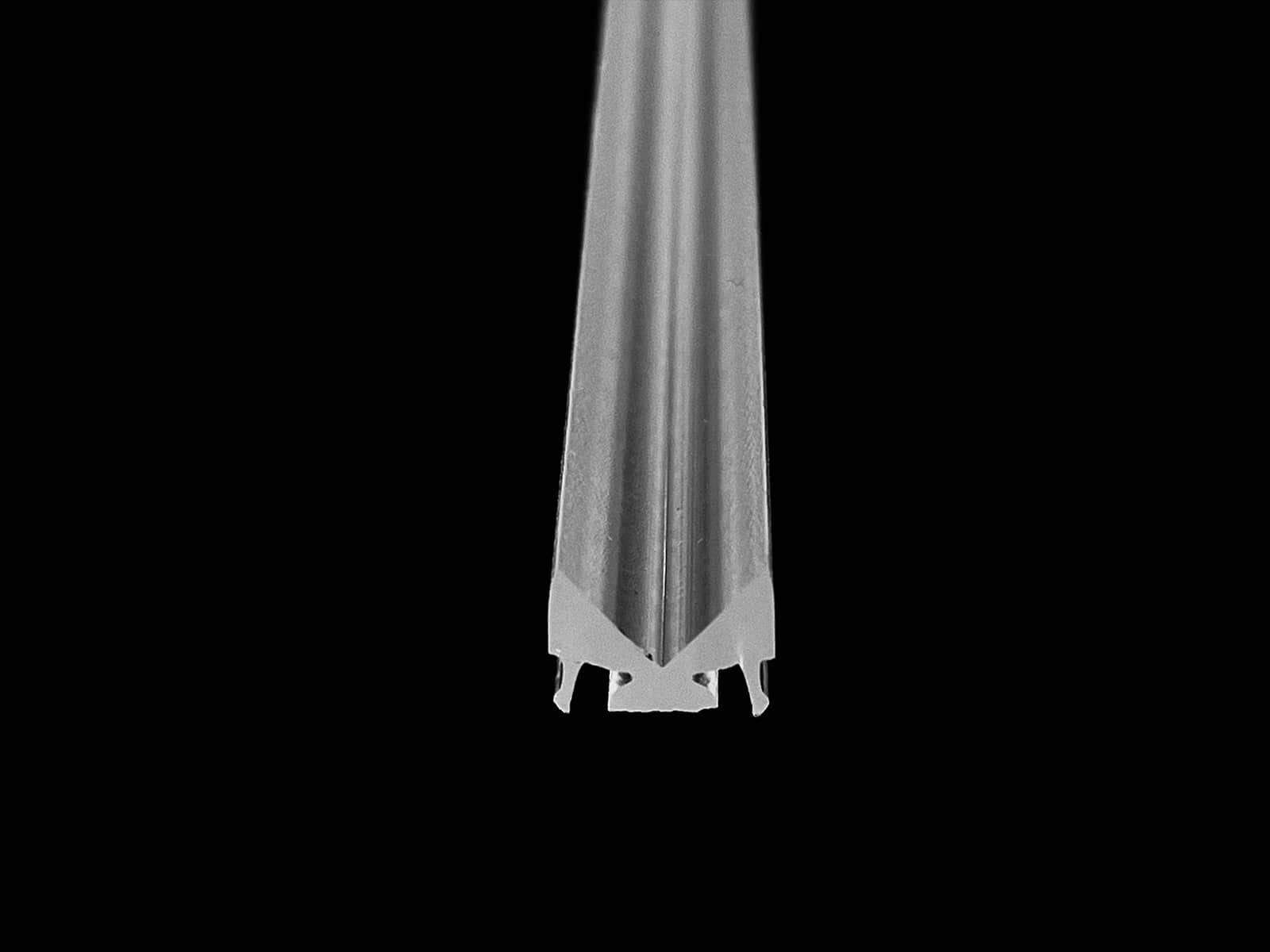

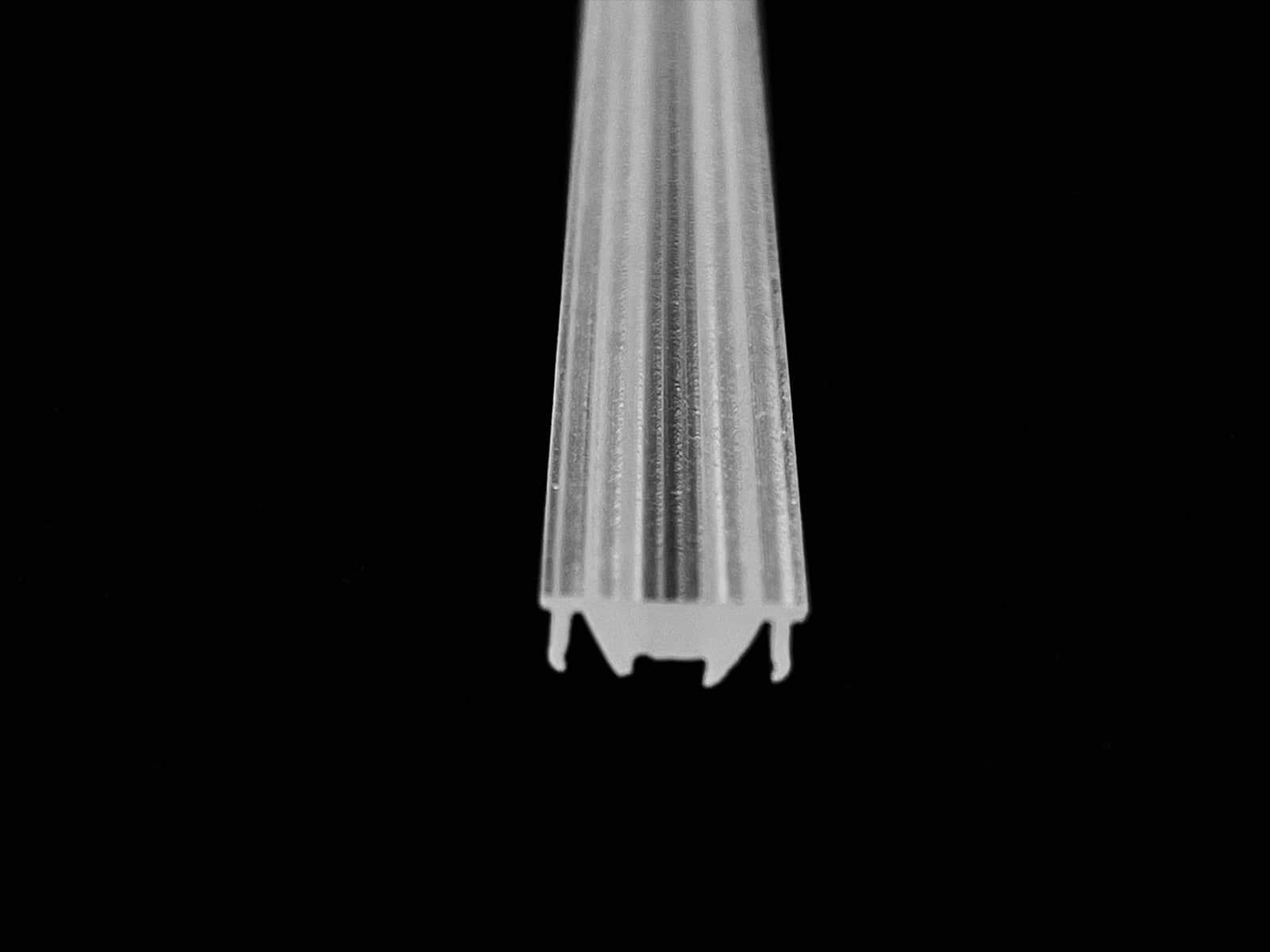

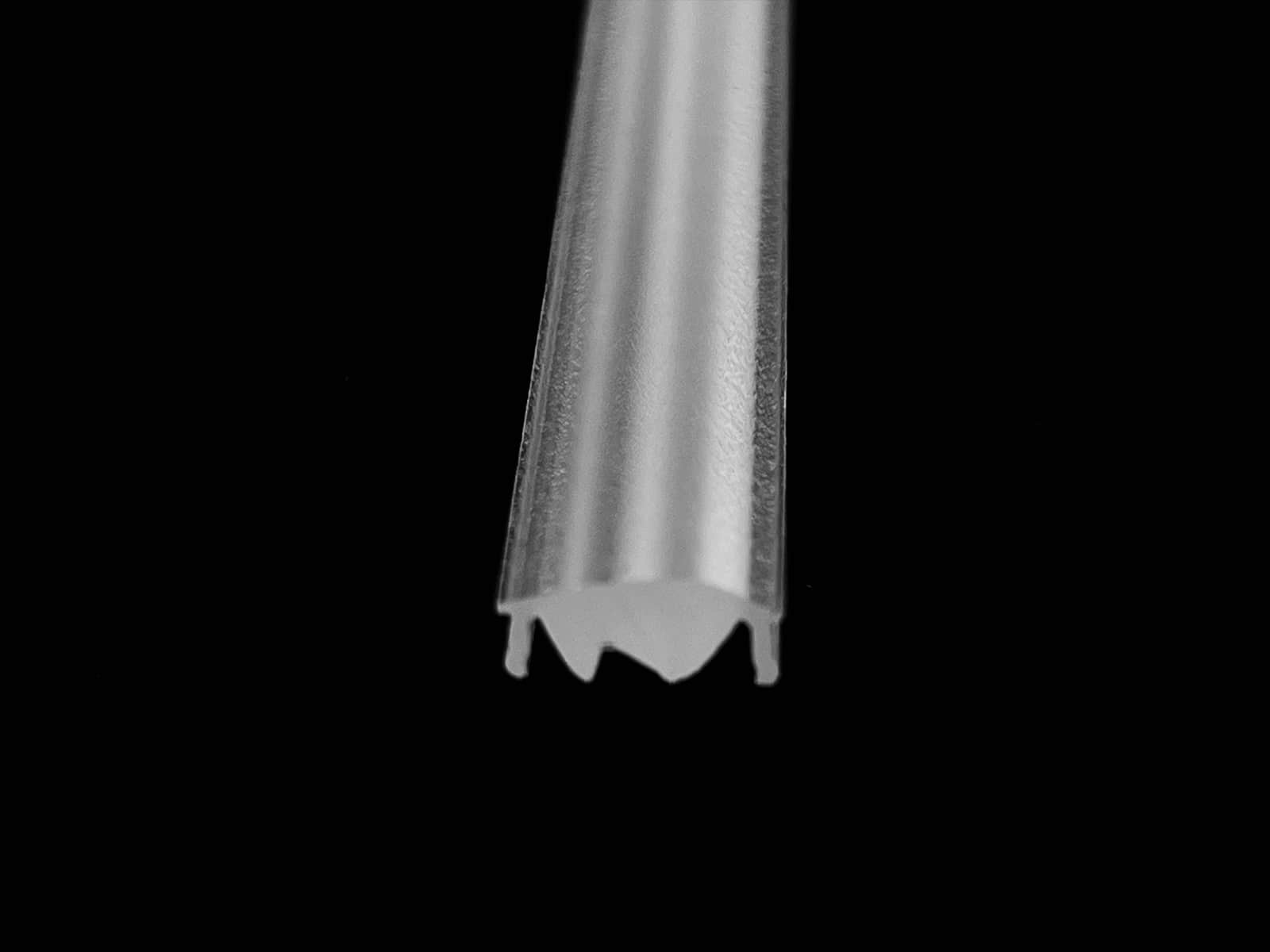

1. Made of 6063 T5 aluminum + PMMA lens + plastic end caps. Compact structure with an ultra-thin 12mm design. High-transmittance PMMA lens (>90%) delivers excellent optical efficiency.
2. Multiple beam angle options available (symmetric 30°/40°/60°/145°, asymmetric 25°/45°), adapting to different mounting heights and lighting targets. The aluminum provides good heat dissipation. Suitable for commercial displays, shelf lighting, and aisle lighting, enhancing the quality of light in the space.

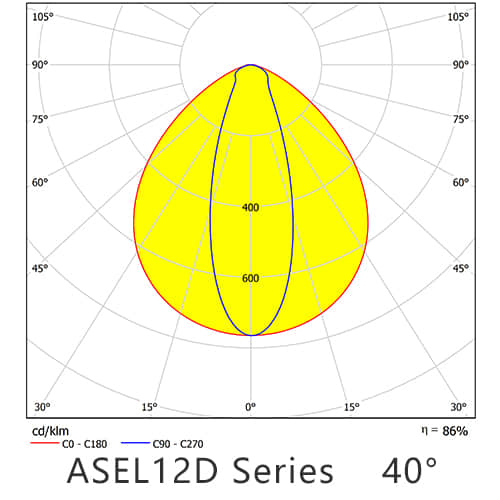

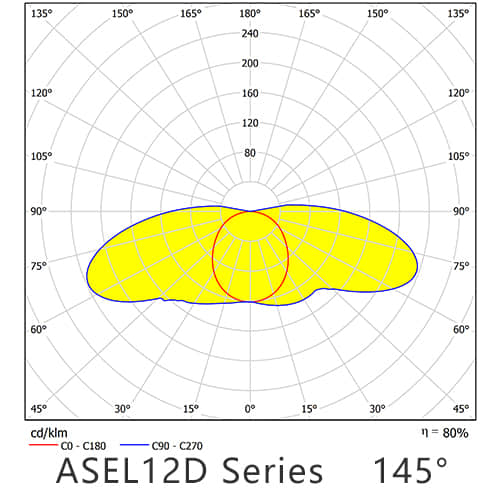

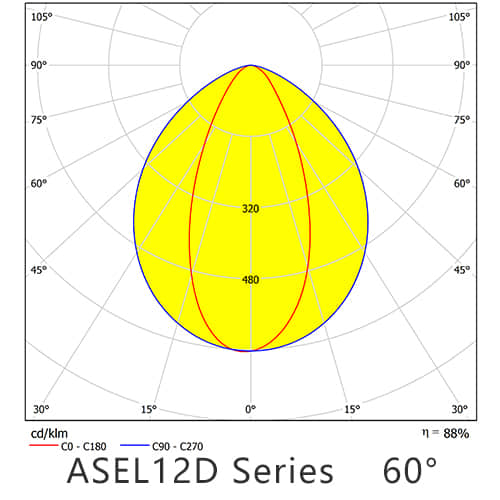

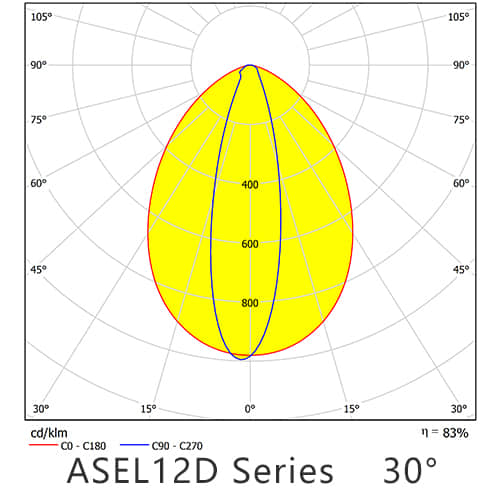

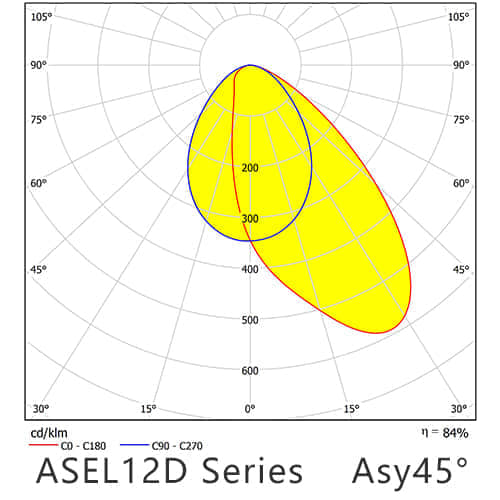

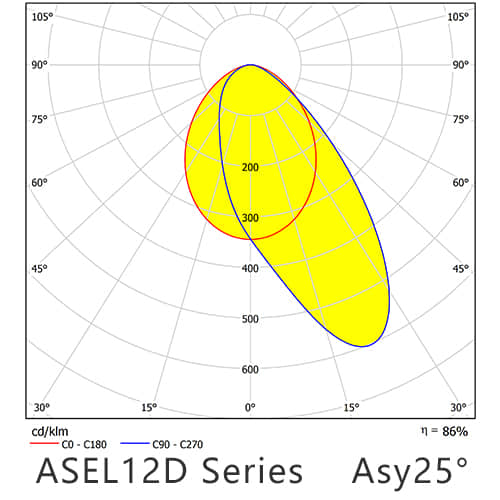

Distribution

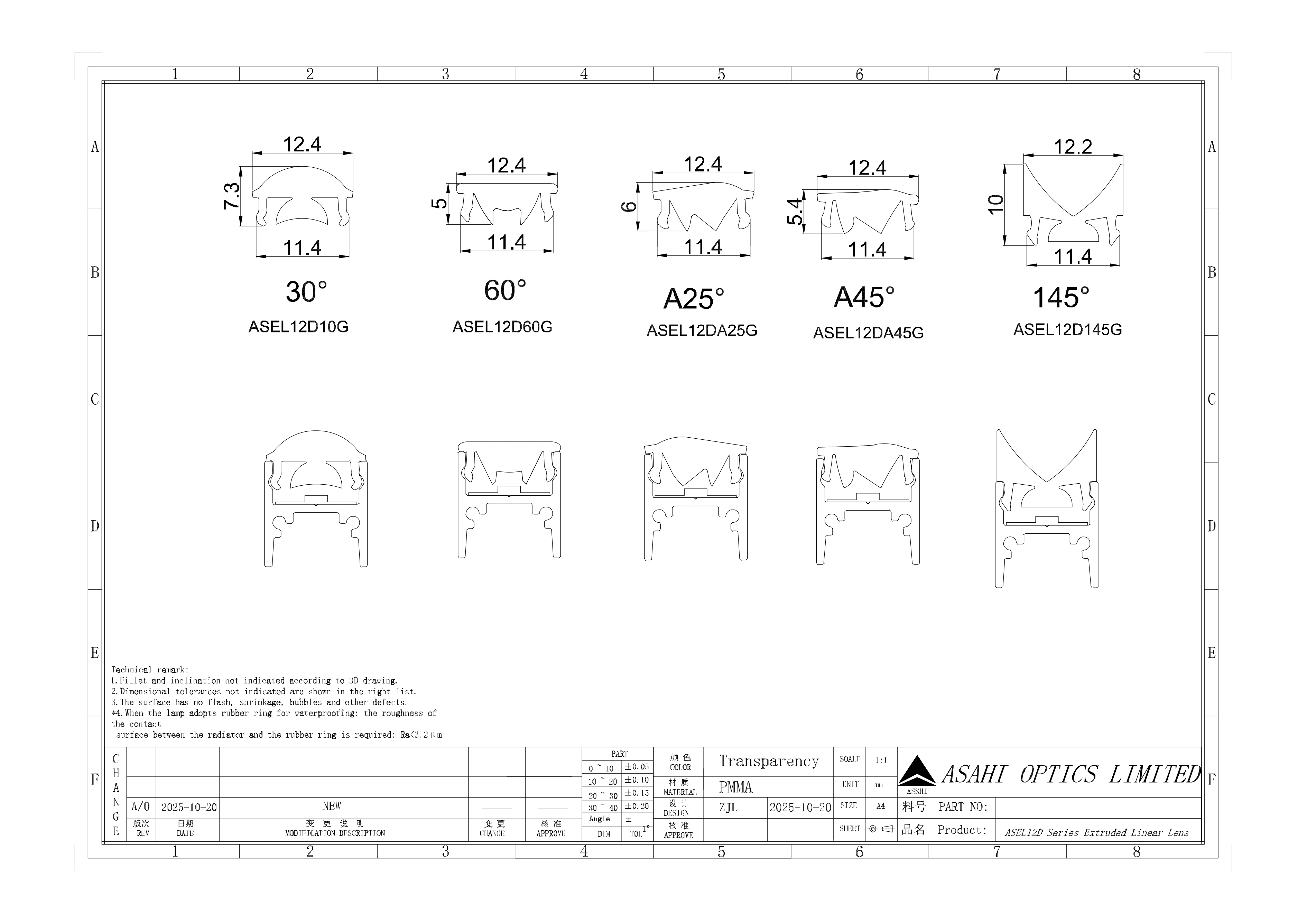

Specifications
| Model: | ASEL12D Series |
| Size: | 12mm width |
| Height: | - |
| Angle: | 30°,40°,60°,145°,Asy25°,Asy45° |
| Material： | 6063 T5 Aluminum + PMMA lens + Plastic Endcap |
| Transmittance： | 90% |
| LED Applications | 2835/3030/3535LED |
| Lighting applications | Linear Lighting, Reatail ,corridor and shelf lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
