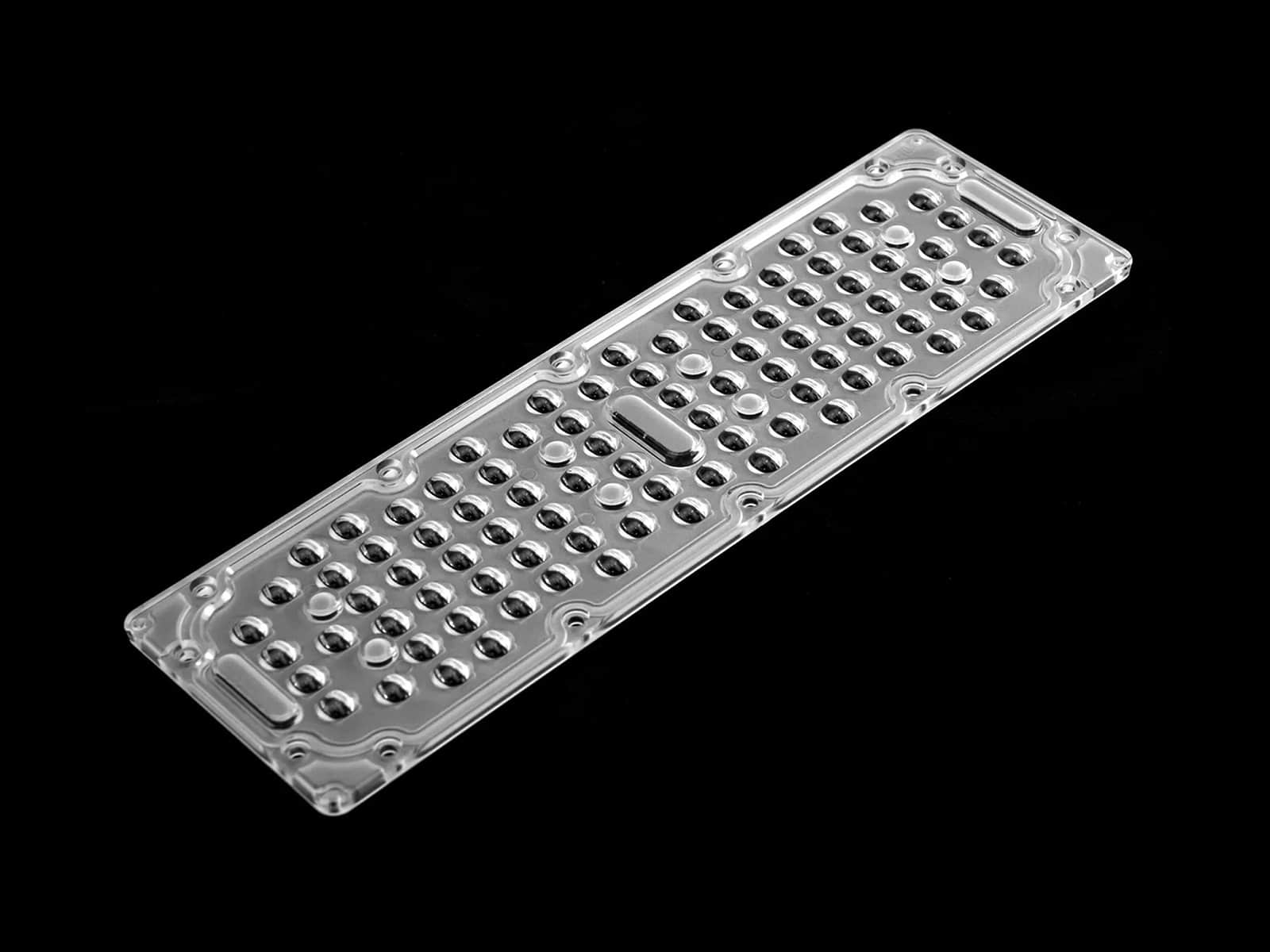

Model: ARST256D90LEDT2M
Diameter: 256x78.5mm
Height: 7.35mm
Angle: T2M
Material: PC-1250Z TEIJIN
Transmittance: >93%
LED Type: 3030LED
Lighting Applications: Street lighting,Architecture lighting
1. Angle of 80x150°, suitable for streetlight illumination.
2. Constructed with UV-resistant PC material, ensuring excellent durability and resistance to yellowing.
3. The lens holds an IP66 rating, with a high level of protection against dust and water ingress. This makes it suitable for outdoor applications where exposure to challenging weather conditions is a concern, ensuring reliable performance in various environments.

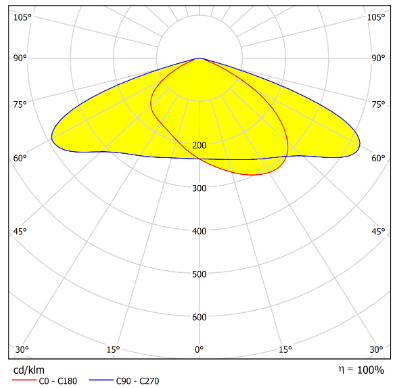

Distribution
Specifications
| Model: | ARST256D90LEDT2M |
| Diameter: | 256x78.5mm |
| Height: | 7.35mm |
| Angle: | T2M |
| Material： | PC-1250Z |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting,Architecture lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARST256D90LEDT2M lens 3D drawing.STP

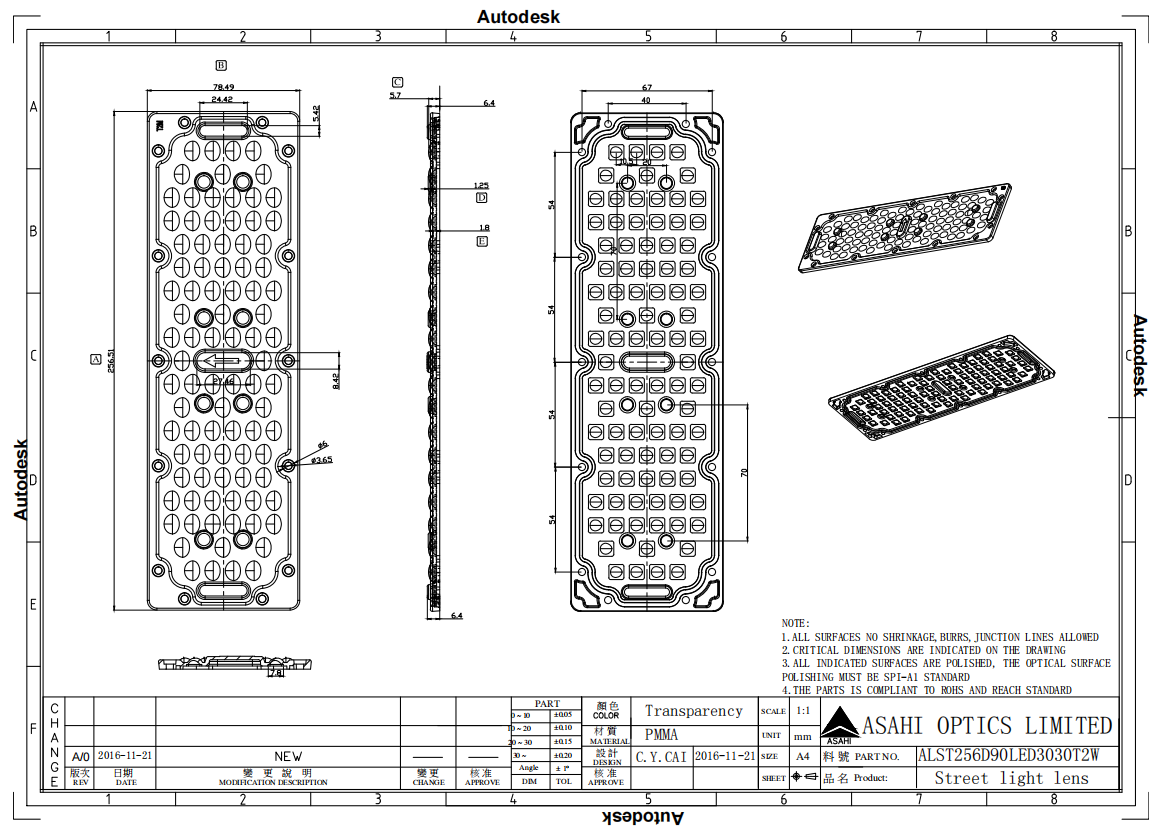

ASAHI OPTICS ARST256D90LEDT2M Drawing.dwg
