Model: AJST270D28LEDT2
Diameter: 270mm
Height: 75mm
Angle: Type II
Material: PC-1250Z
Transmittance: >90%
LED Type: 4x3030/ 5050LED
Lighting Applications: Street lighting
1.The 28LEDs lens is compatible with “4x3030”and“5050”LEDs.
2. IP66 rated for dust and water resistance, making it suitable for use in indoor and outdoor environments.
3. This street lens is made from high-quality PC material with a temperature resistance of up to 120°C, ensuring long-term durability and stability.

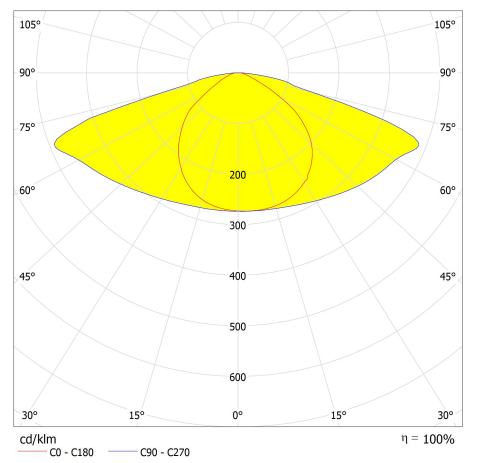

Distribution
Specifications
| Model: | AJST270D28LEDT2 |
| Diameter: | 270mm |
| Height: | 75mm |
| Angle: | Type II |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 4x3030/ 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS AJST270D28LEDT2 Drawing.dwg
ASAHI OPTICS AJST270D28LEDT2 Drawing.pdf
ASAHI OPTICS AJST270D28LEDT2 IES
