Model: AJST236D64LED90110G
Diameter: 236mm
Height: 71mm
Angle: 90x110°
Material: PC-1250Z
Transmittance: >90%
LED Type: 2835/3030 LED

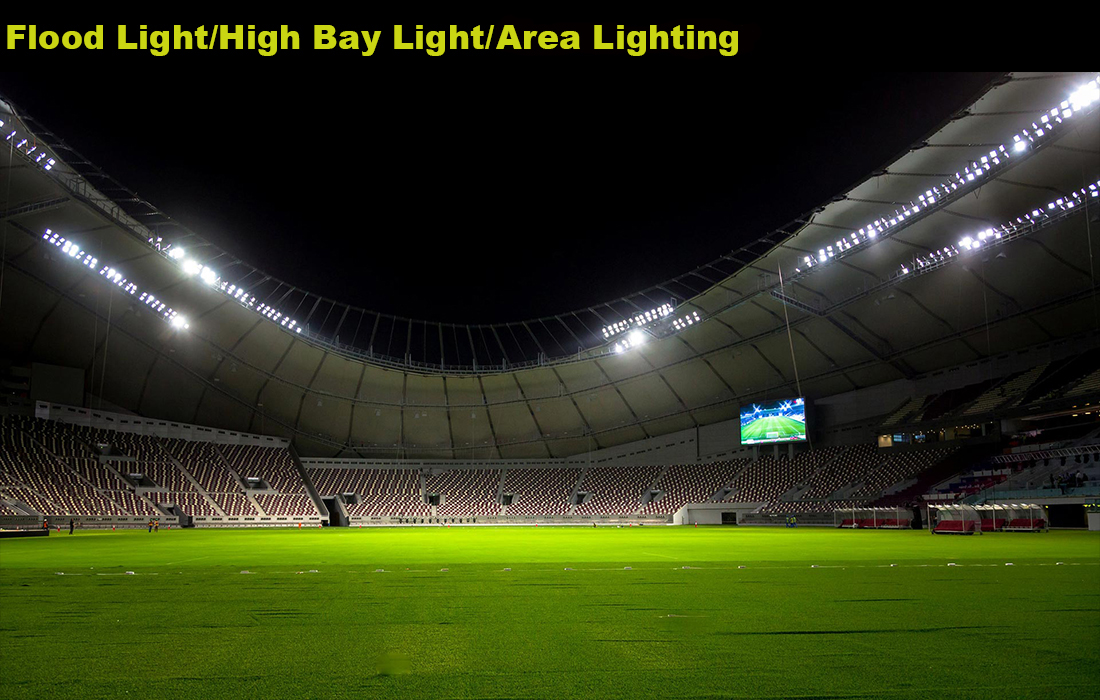

Lighting Applications: Flood Lighting, Area Lighting

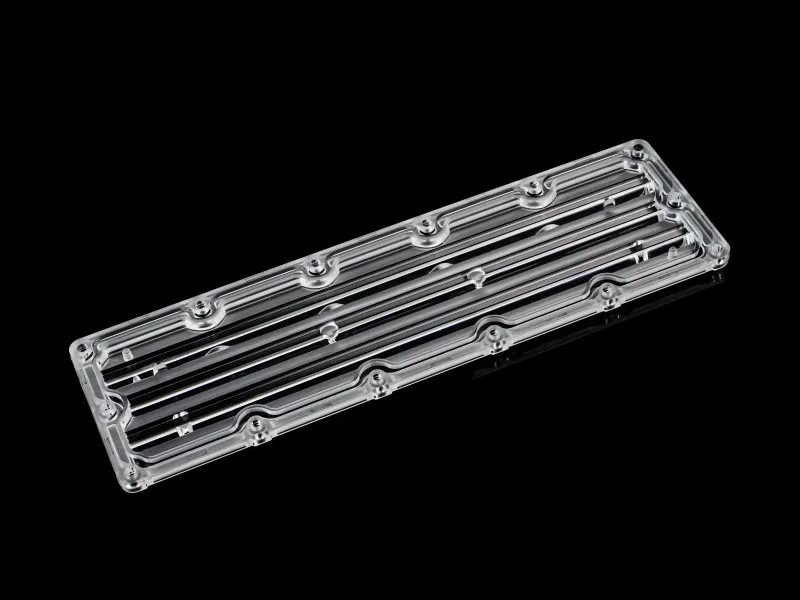

1.The linear design, coupled with a 90x110° beam angle, makes the product well-suited for flood lighting applications.
2.With an IP66 rating, the product demonstrates excellent resistance against dust and water ingress, makes it suitable for outdoor use, ensuring reliable performance even in challenging weather conditions.
3.This item is made of high quality PC material,with excellent UV resistance and a light transmittance exceeding 90%,

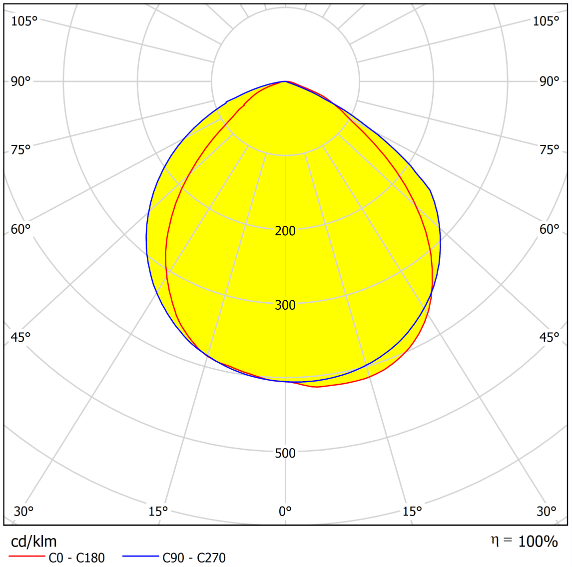

Distribution
Specifications
| Model: | AJST236D64LED90110G |
| Diameter: | 236mm |
| Height: | 71mm |
| Angle: | 90x110° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/3030 LED |
| Lighting applications | Flood Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
