Model: ALST50D12LED3030T2S
Diameter: 50x50mm
Height: 7.85mm
Angle: Type II Short
Material: PMMA
Transmittance: >93%
LED Type: 3030LED

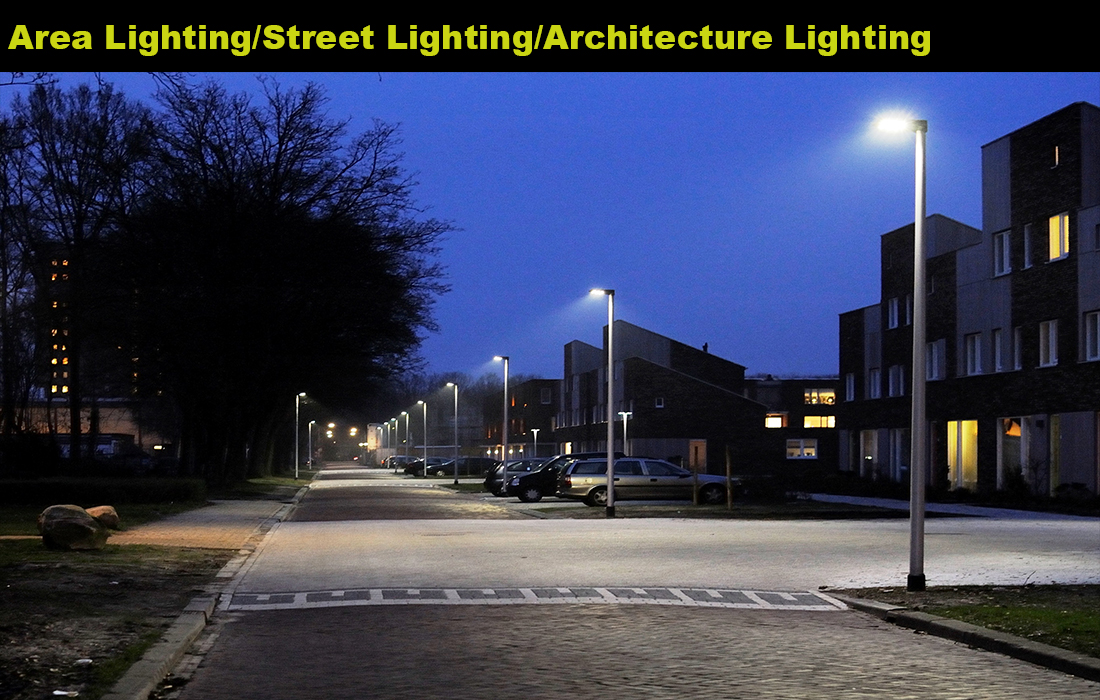

Lighting Applications: Area Lighting
1. The design of the 12X1 TYPE II-Short lens is tailored for directed illumination, concentrating the beam in a narrower horizontal area. It is suitable for scenarios that require lighting along roads or walkways.
2. Directed lighting helps efficiently utilize energy by ensuring that light is concentrated in the areas that require illumination, reducing unnecessary energy waste.

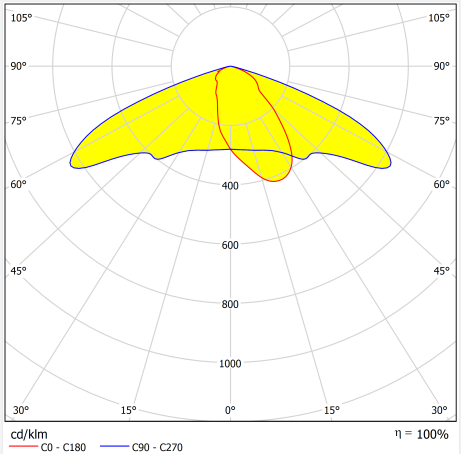

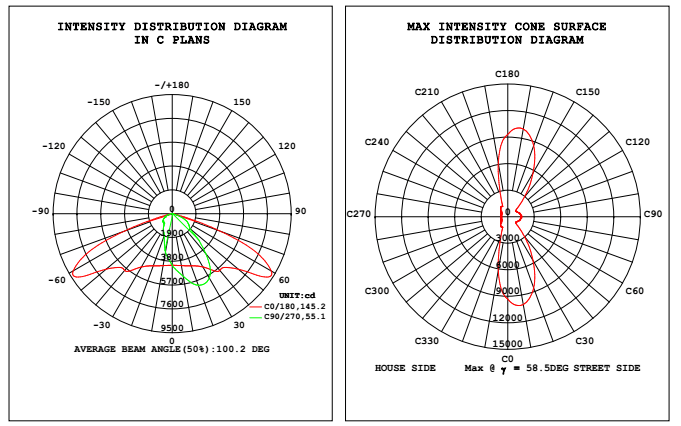

Distribution
Specifications
| Model: | ALST50D12LED3030T2S |
| Dimeter: | 50x50mm |
| Height: | 7.85mm |
| Angle: | Type II Short |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Area Lighting,Street Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

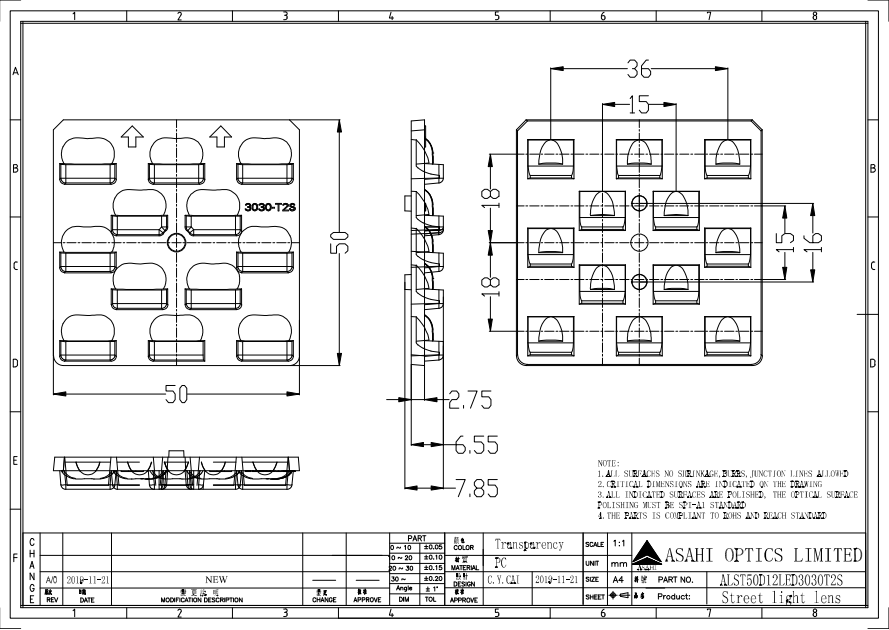

ASAHI OPTICS ALST50D12LED3030T2S Drawing.dwg
ASAHI OPTICS ALST50D12LED3030T2S Drawing.pdf
ASAHI OPTICS ALST50D12LED3030T2S Test Report.pdf
ASAHI OPTICS ALST50D12LED3030T2S lens IES.ies
