Model: AJST275D35LED120G
Diameter: 275mm
Height: 8.0mm
Angle: 120°
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting

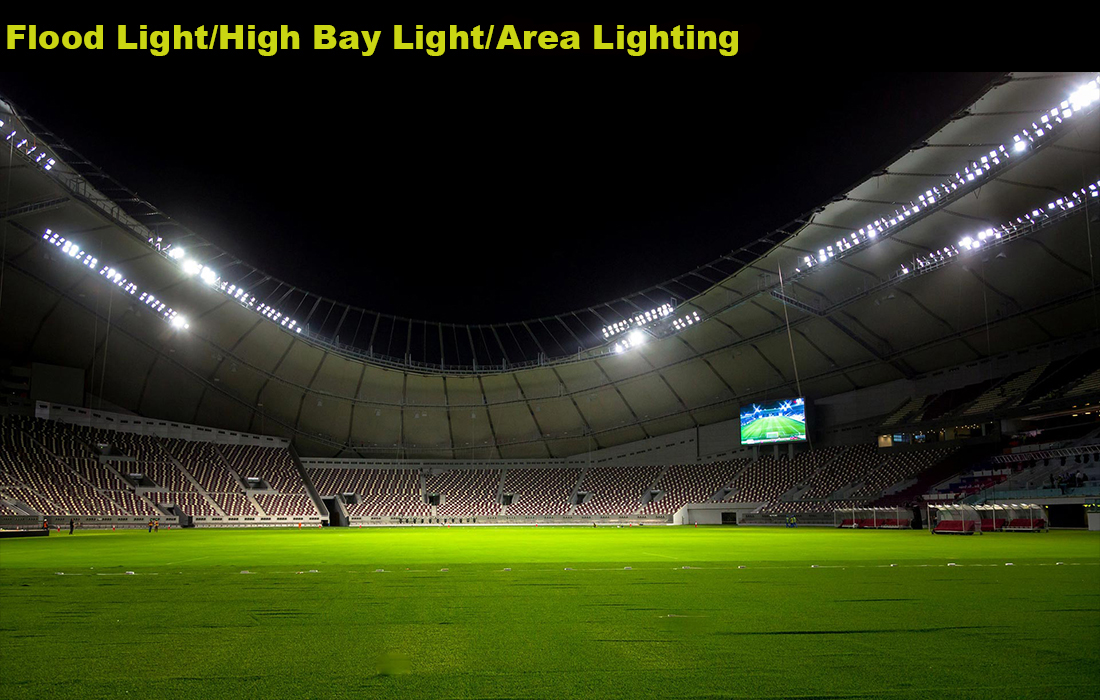

1.The 120° beam angle allows effective coverage of large areas and is particularly suitable for high bay environments such as factories and warehouses.
2.35 LED module LENS is the structure of flat cover, customers can design the number of LEDs according to the actual demand, which can be better adapted to the respective lighting demand.
Distribution
Specifications
| Model: | AJST275D35LED120G |
| Diameter: | 275mm |
| Height: | 8.0mm |
| Angle: | 120° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

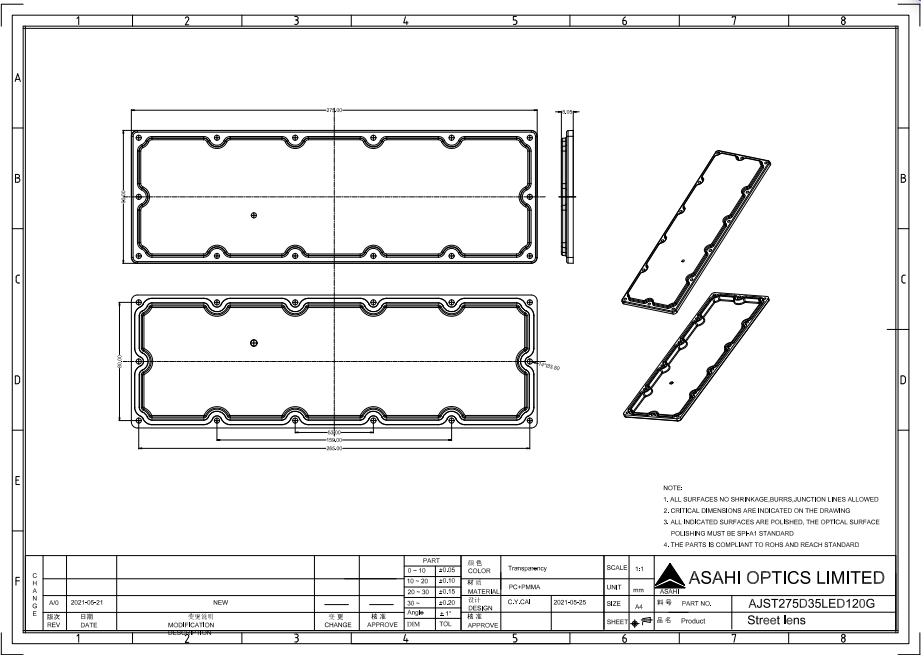

Asahi AJST275D35LED120G Drawing.dwg
Asahi AJST275D35LED120G Drawing.pdf
Asahi AJST275D35LED-PCB Drawing.dwg
Asahi AJST275D35LED-PCB Drawing.pdf
