Model: ALHB50D24LEDT120
Diameter: 50x50mm
Height: 2.9mm
Angle: 120°
Material: PC
Transmittance: >93%
LED Type: 3030LED
Lighting Applications: Street lighting
1. The high quality 4X6 layout 120-degree lensis ideal for outdoor applications such as decks, courtyards, parking lots, etc., due to its wide Angle of 120 degrees.
2. Since it is outdoor lighting, we mostly use PC materials to produce our 24in1 lens. Because PC materials can withstand higher temperatures than PMMA materials.
3. Provides a wide beam coverage, making it ideal for illuminating large areas with a uniform and consistent light pattern.

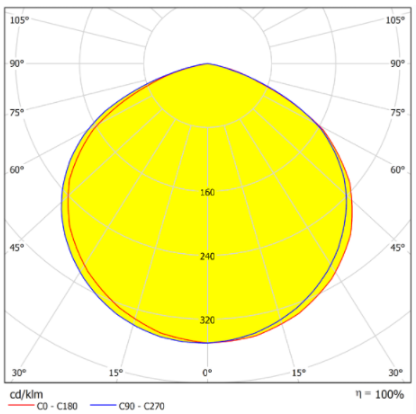

Distribution
Specifications
| Model: | ALHB50D24LEDT120 |
| Diameter: | 50x50mm |
| Height: | 2.9mm |
| Angle: | 120° |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Flood lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D24LEDT120 lens 3D Drawing.stp

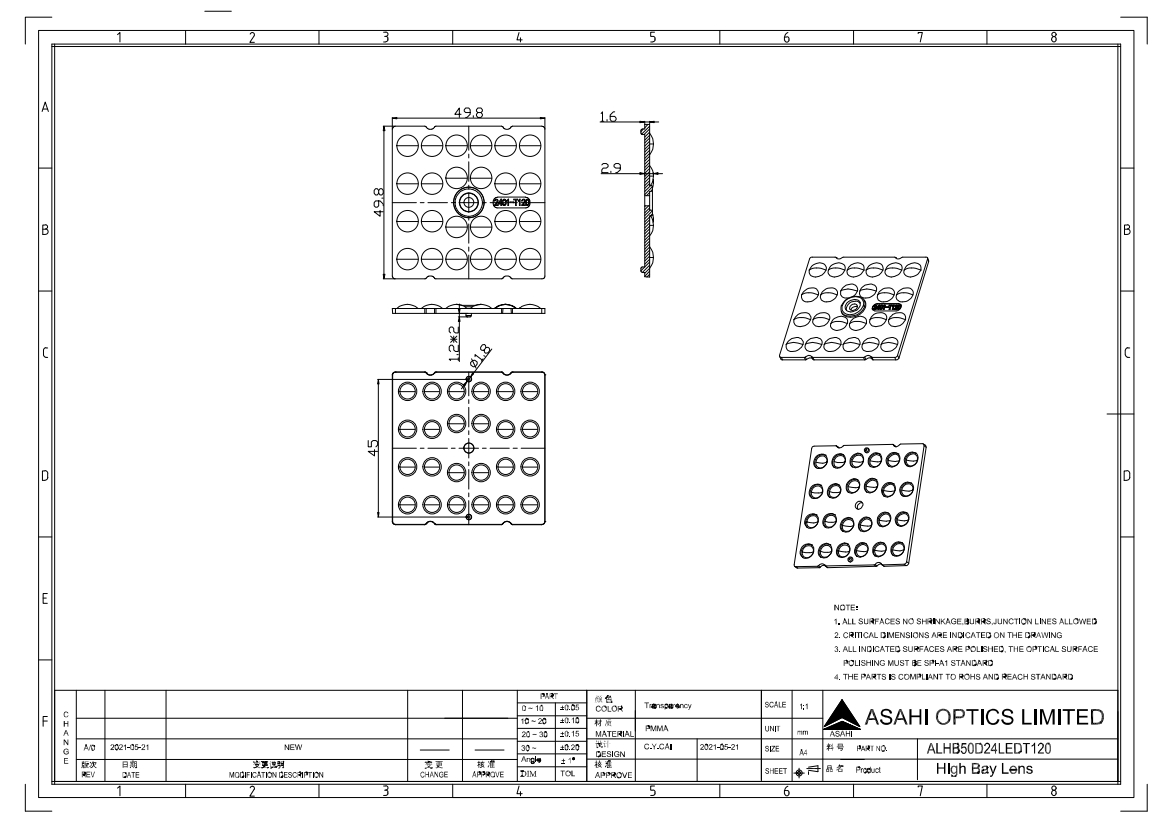

ASAHI OPTICS ALHB50D24LEDT120 Drawing.dwg
ASAHI OPTICS ALHB50D24LEDT120 Drawing.pdf
ASAHI OPTICS ALHB50D24LEDT120 lens IES.ies
