Model: AJHB252D84LED
Size: 252x70 (mm)
Height: 7.8mm
Angle: 30°,60°,90°,80x150°
Material: PC
Transmittance: >88%
LED Type: 2835/3030 LED
Lighting Applications: Street lighting, High Bay lighting

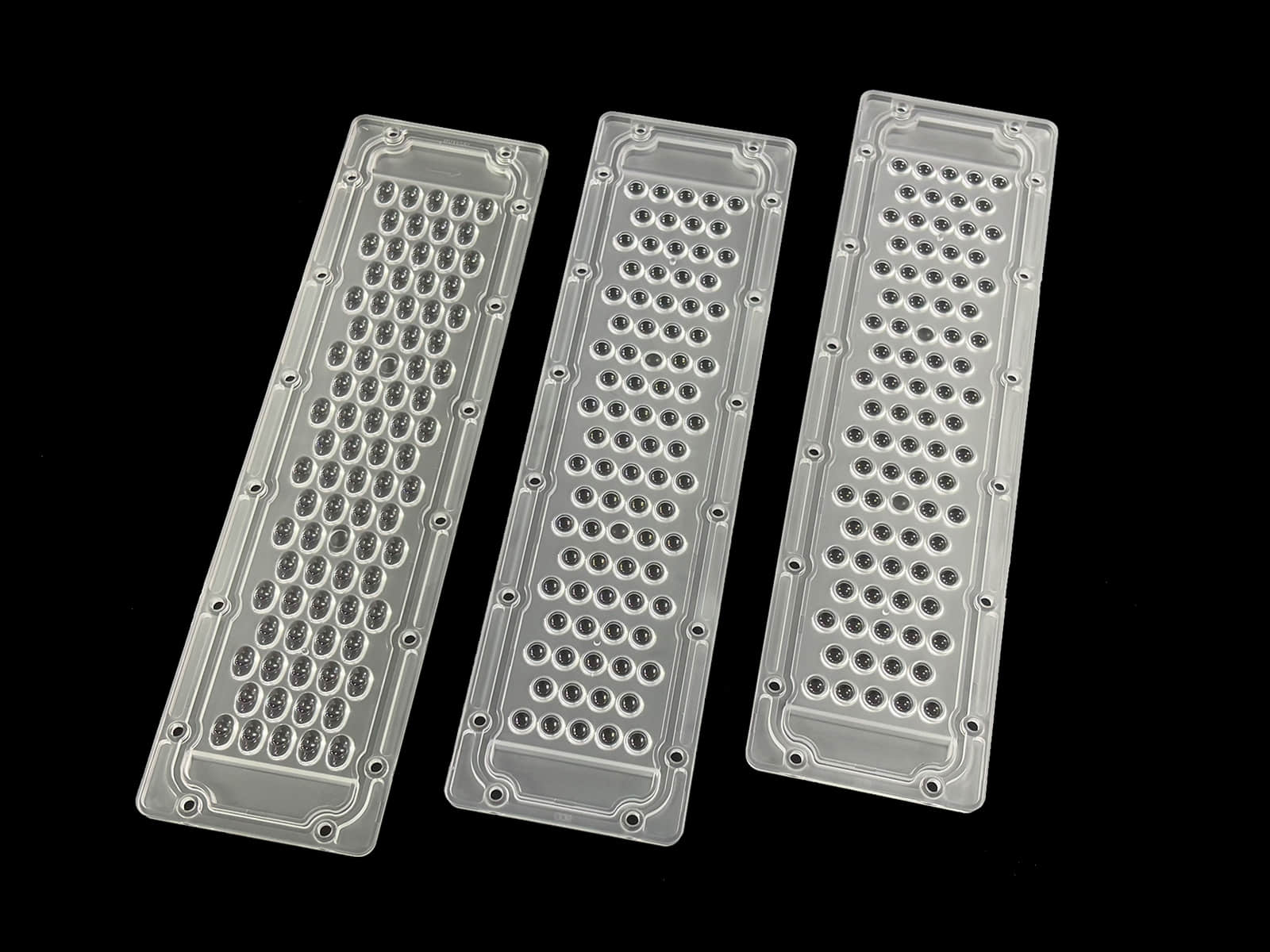

1. AJHB252D84LED is a high-power, high-density multi-lens module designed specifically for demanding applications such as road lighting and industrial high-bay lighting.
2. This module integrates 84 independent optical units, offering four professional beam distributions including 30°, 60°, 90°, and 80x150° asymmetric light, providing a powerful, uniform, and flexible all-in-one secondary optical engine for highly efficient lighting systems.

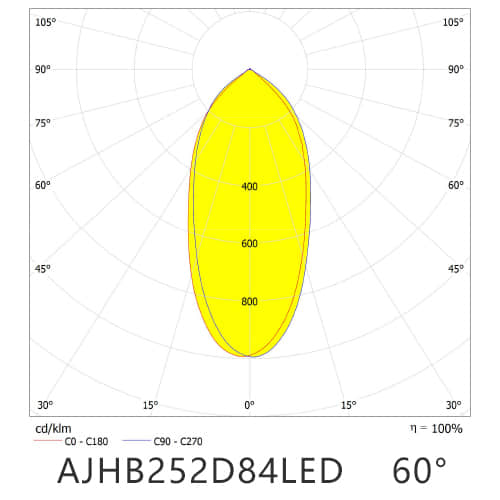

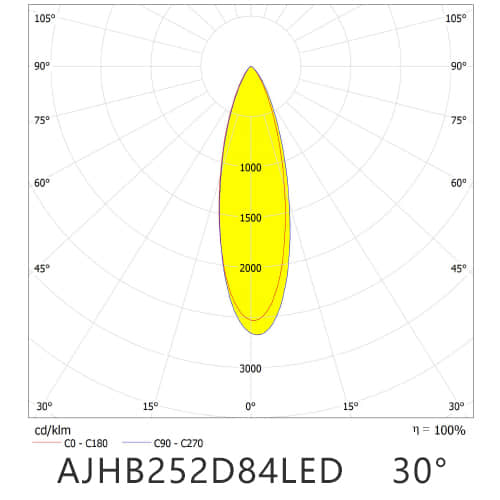

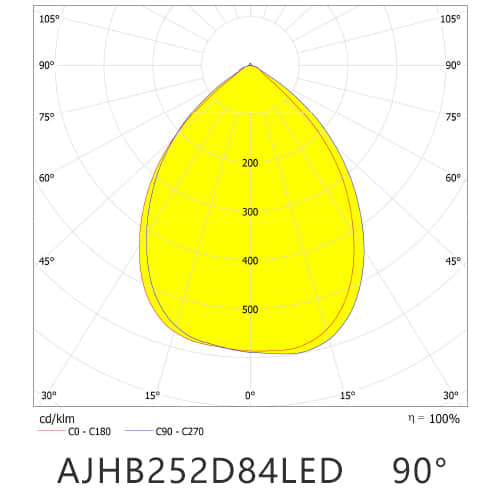

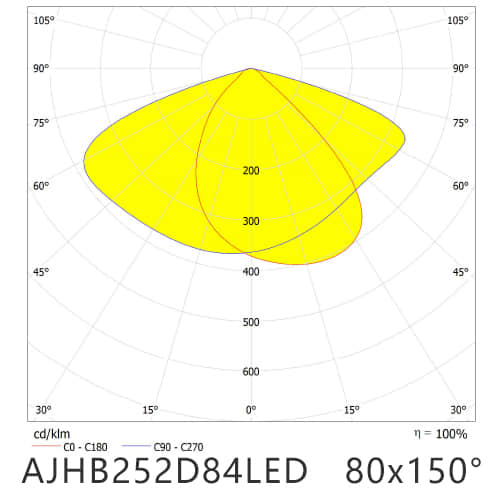

Distribution
Specifications
| Model: | AJHB252D84LED |
| Size: | 252x70 (mm) |
| Height: | 7.8mm |
| Angle: | 30°,60°,90°,80x150° |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 2835/3030 LED |
| Lighting applications | Street lighting, High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
