Model: AR5035

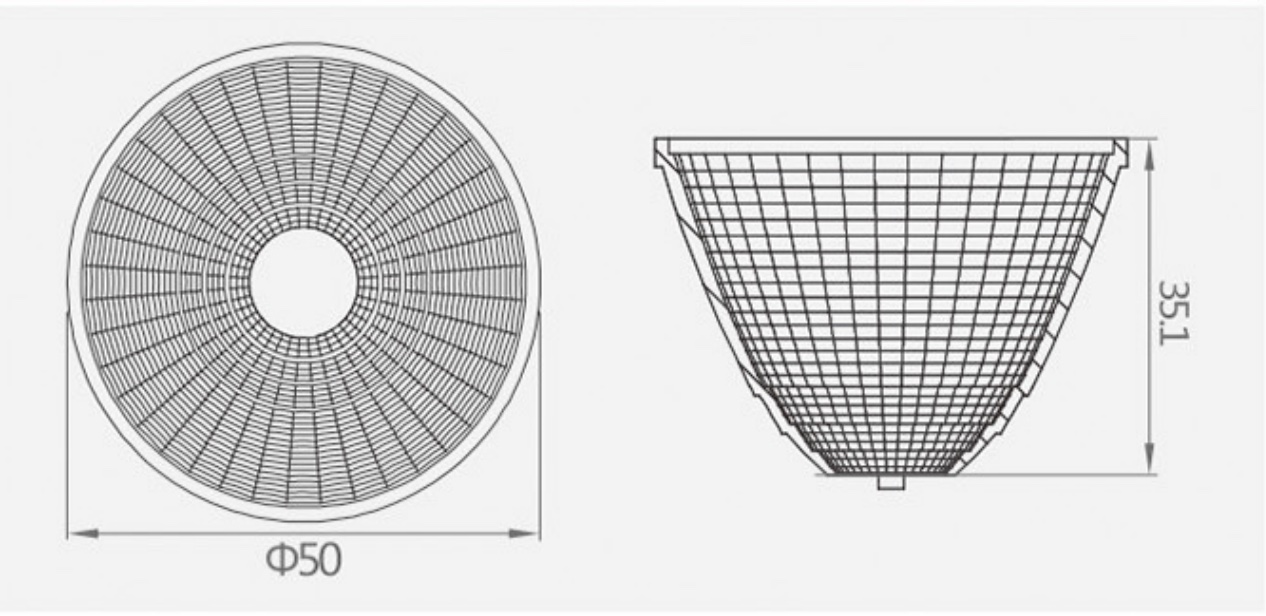

Diameter: 50mm, 11.5mm
Height: 35.1mm

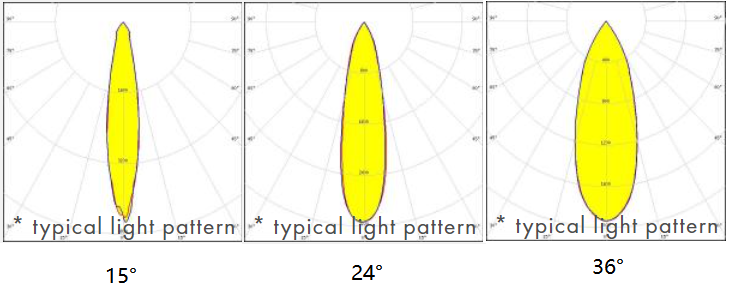

Angle: 15°, 24°, 38°
Material: PC+Aluminum Coating
Transmittance: 88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

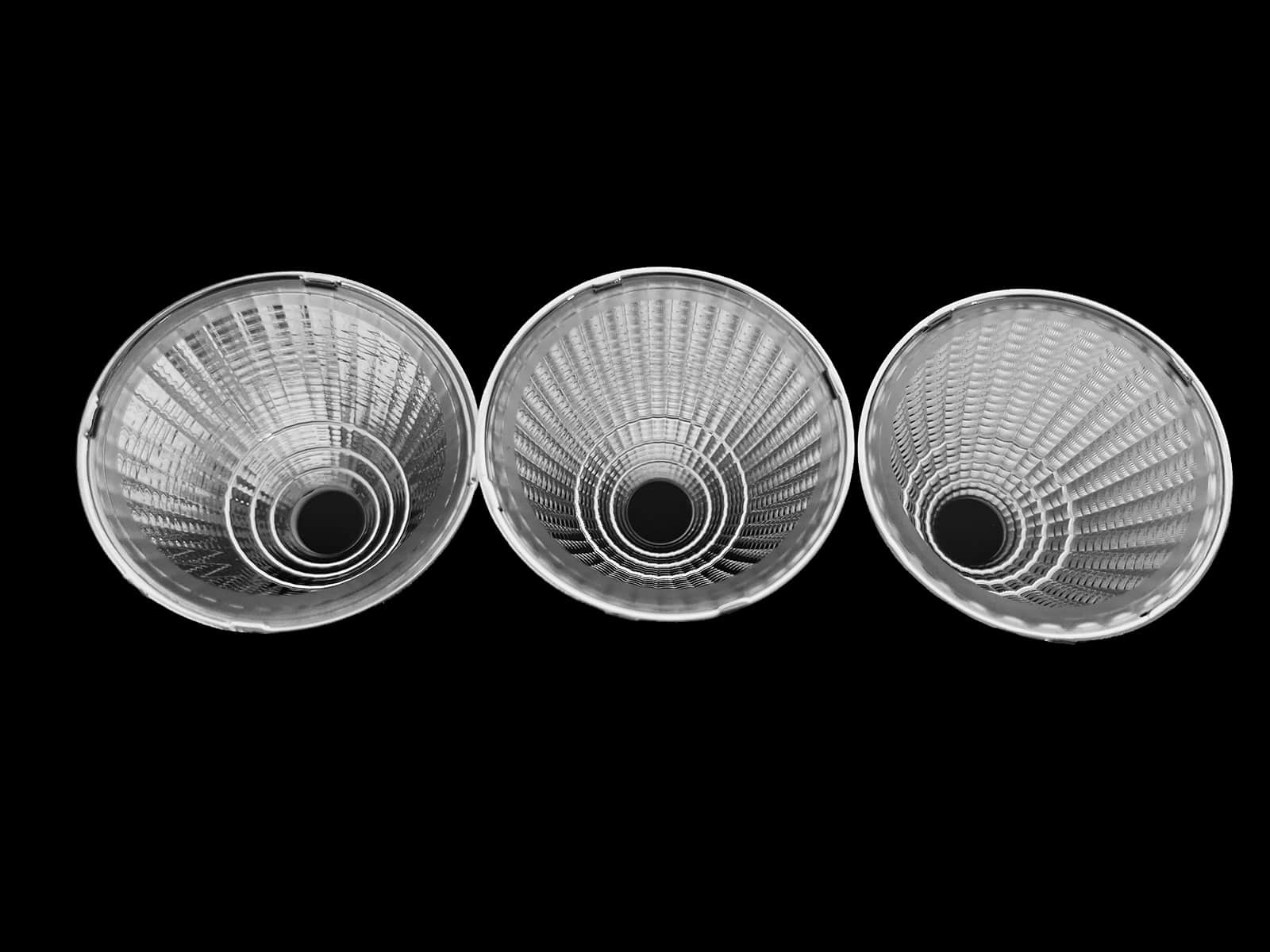

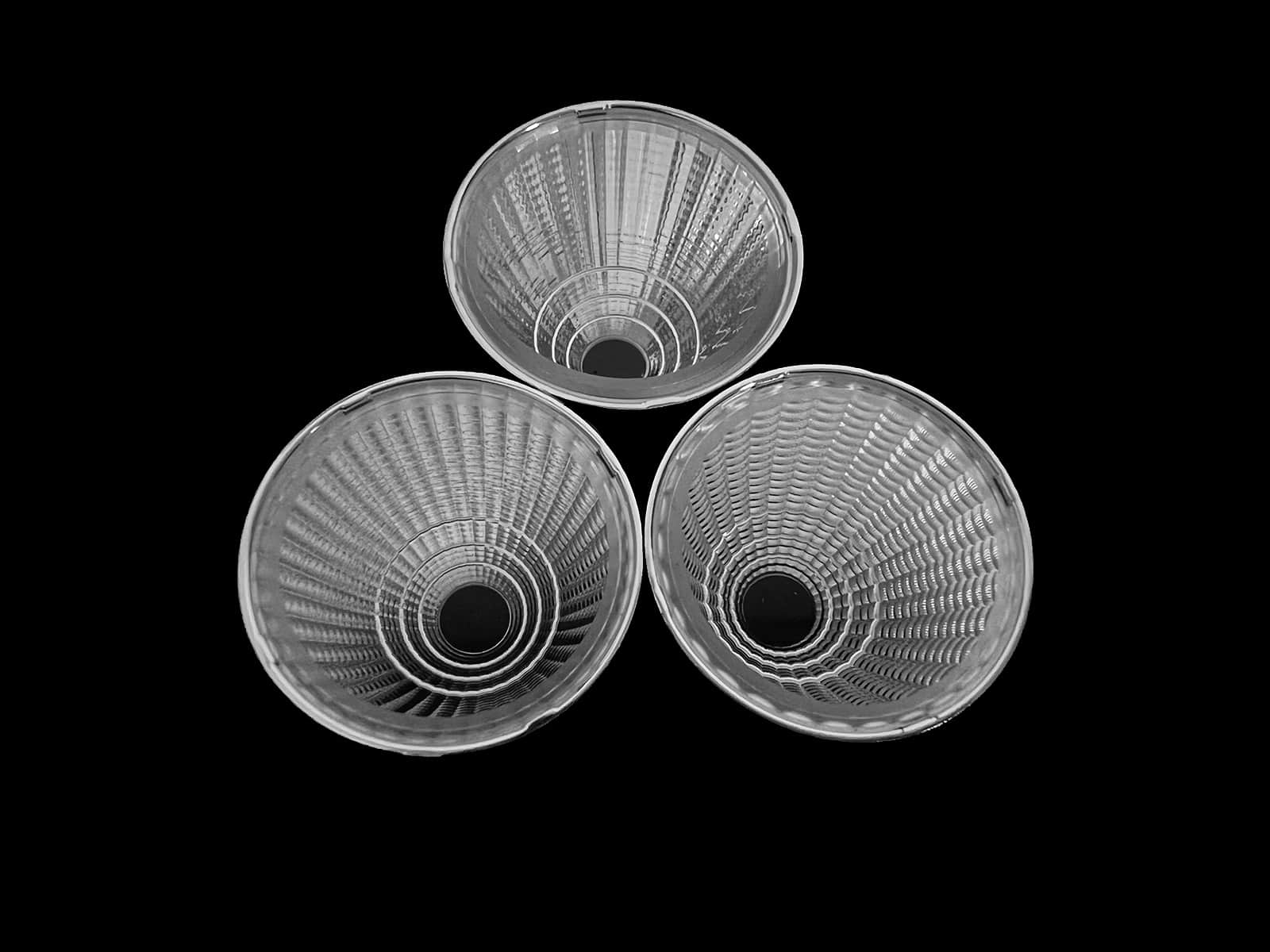

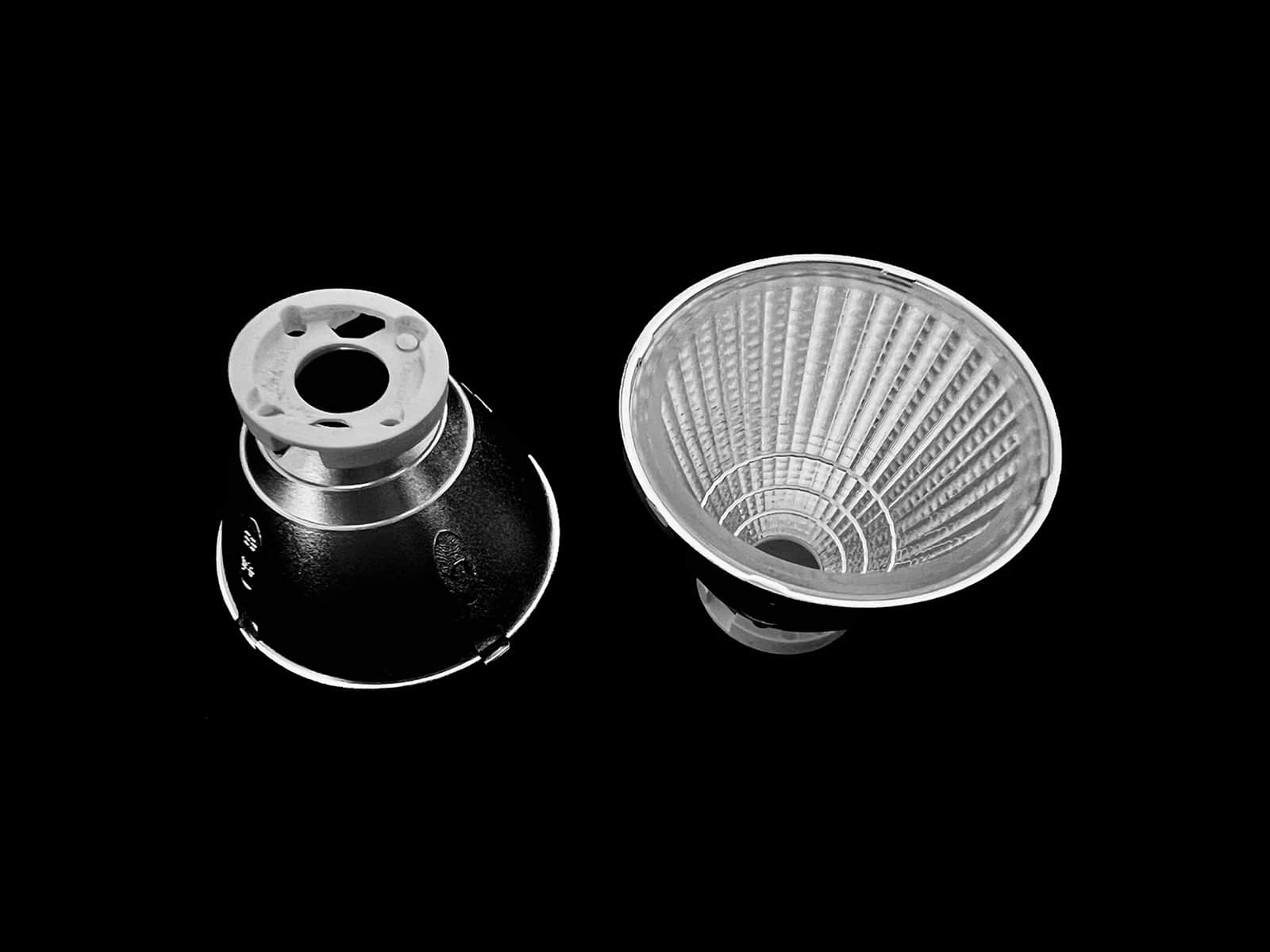

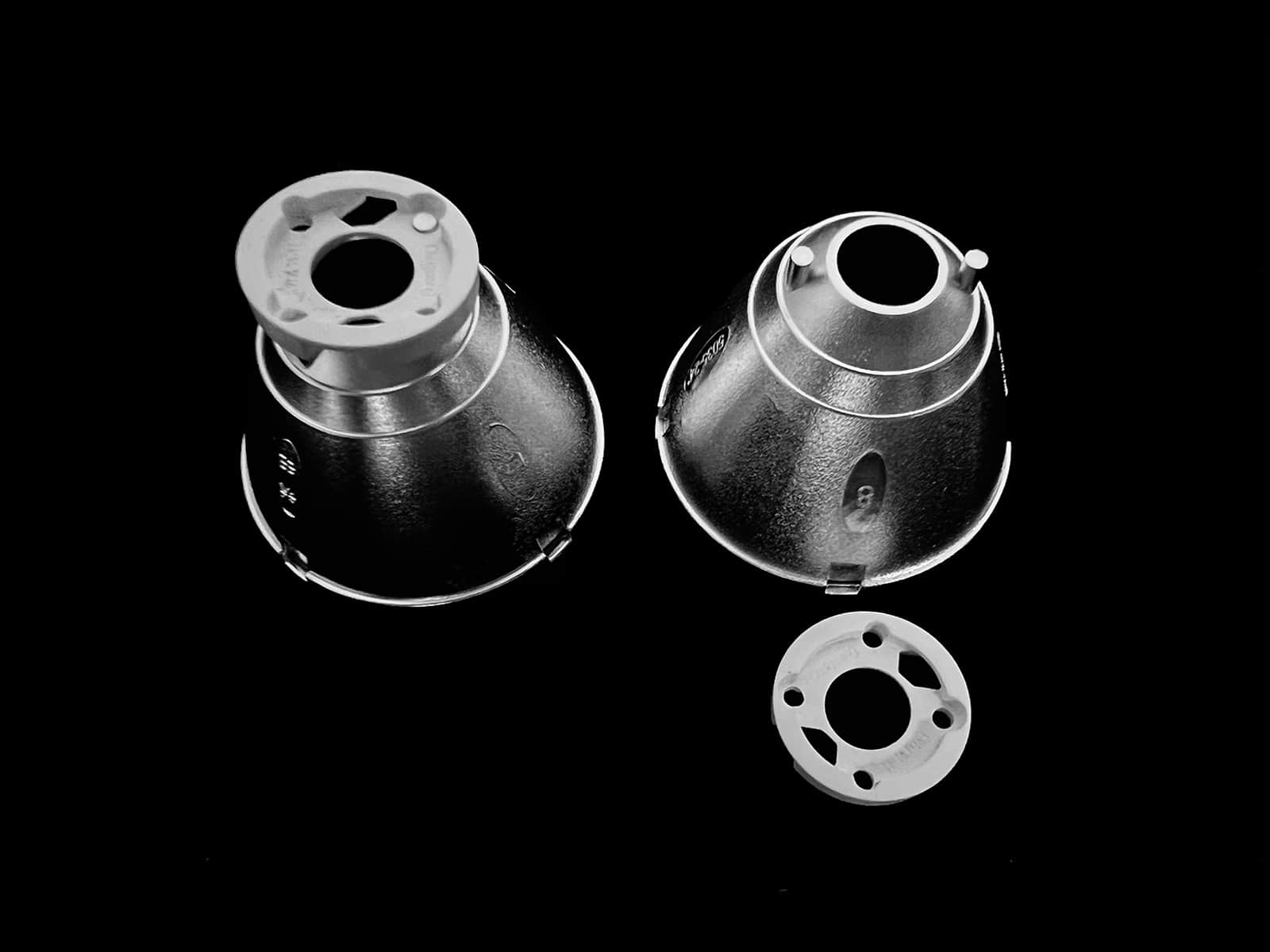

1, 50mm Aluminum Coating LED Optical Reflector With Holder, A reflector, in the context of COB LEDs, is an accessory used to control and direct the light emitted by the LEDs.
2, The main purpose of a COB LED reflector is to enhance the efficiency and directionality of the light output. By using a reflector, the light emitted by the COB LEDs can be concentrated and directed toward a specific area or target. This can be beneficial in applications where focused illumination is required, such as in spotlights or task lighting.

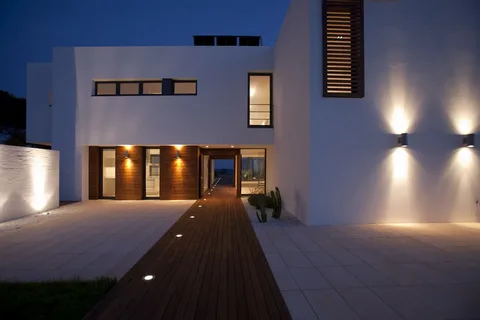

3, COB LED reflectors are utilized for illuminating pathways, walkways, and sidewalks in outdoor areas such as parks, campuses, and residential complexes. The reflectors help to direct the light downward, ensuring clear visibility and guiding people along designated paths.
Specifications
| Model: | AR5035 |
| Diameter: | 50.0mm |
| Height: | 35.1mm |

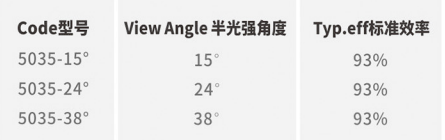

| Angle: | 15°, 24°, 38° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
