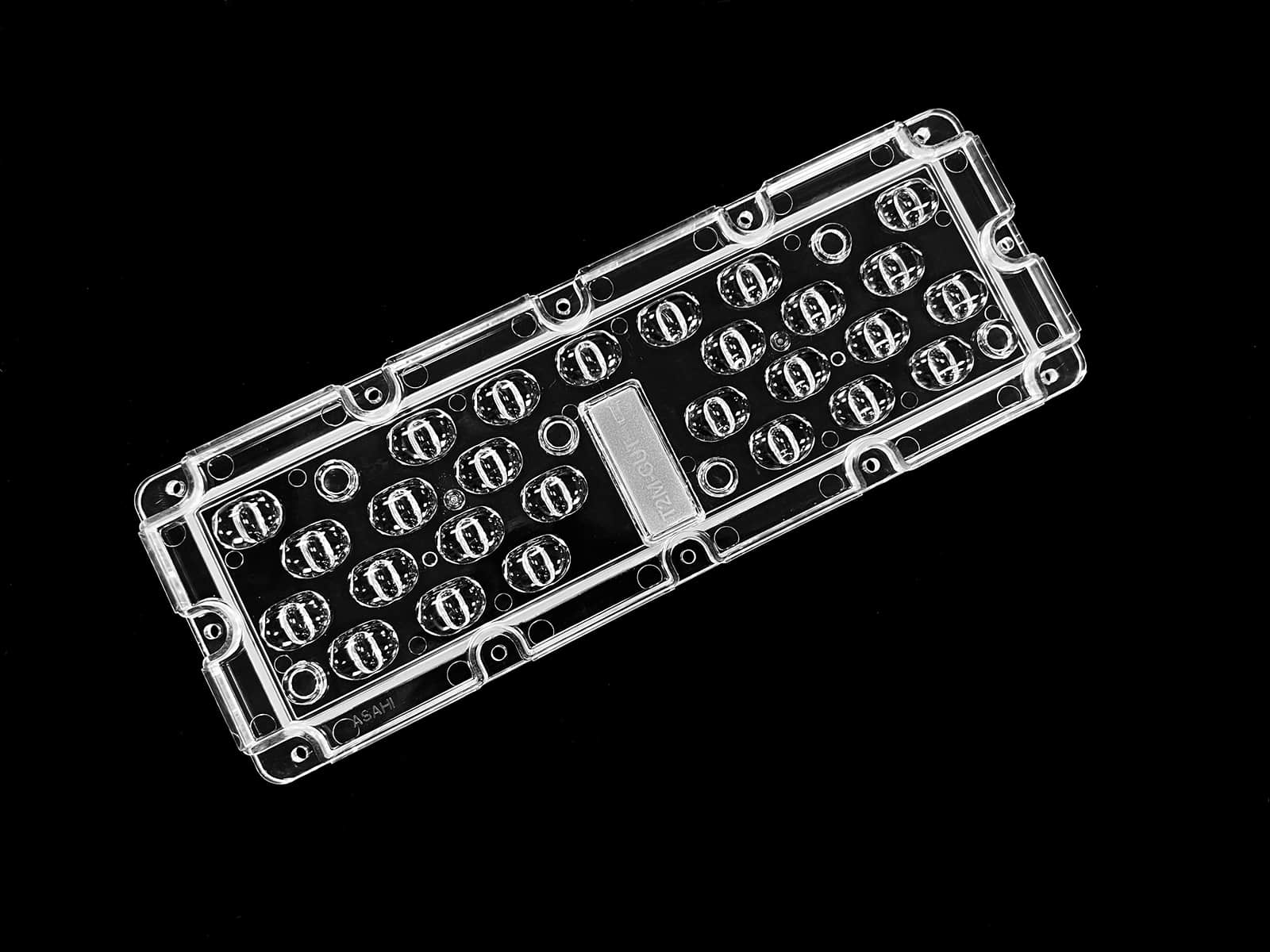

27LEDs LENS for Street Lighting T2M

Model: ALST27LED5050T2M-cutoff

Diameter: 220mm

Height: 8.04mm

Angle: T2M-cutoff

Material: PC

Transmittance: >90%

LED Type: 5050LED

Lighting Applications: Street Lighting

1. This 27LEDs lens is developed for TYPE II-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires with excellent backlight control, illuminance uniformity, and cutoff light distribution.

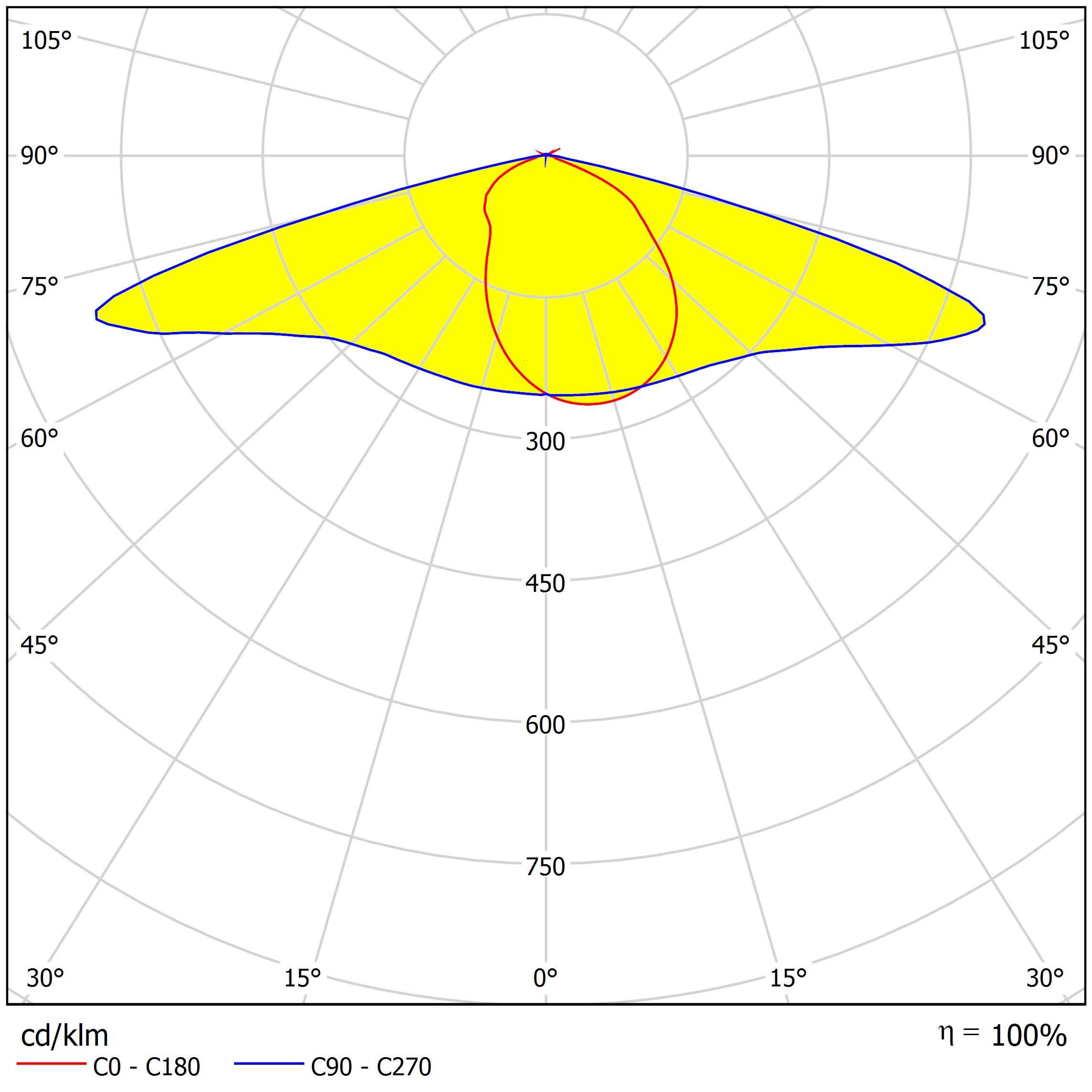

2. The street light optical diagram T2M-cutoff is strictly required by Brazil government have to pass IMMETRO certification.

Specifications

Model:	ALST27LED5050T2M-cutoff
Diameter:	220mm
Height:	8.04mm
Angle:	T2M-cutoff
Material：	PC
Transmittance：	>90%
LED Applications	5050LED
Lighting applications	Street Lighting
