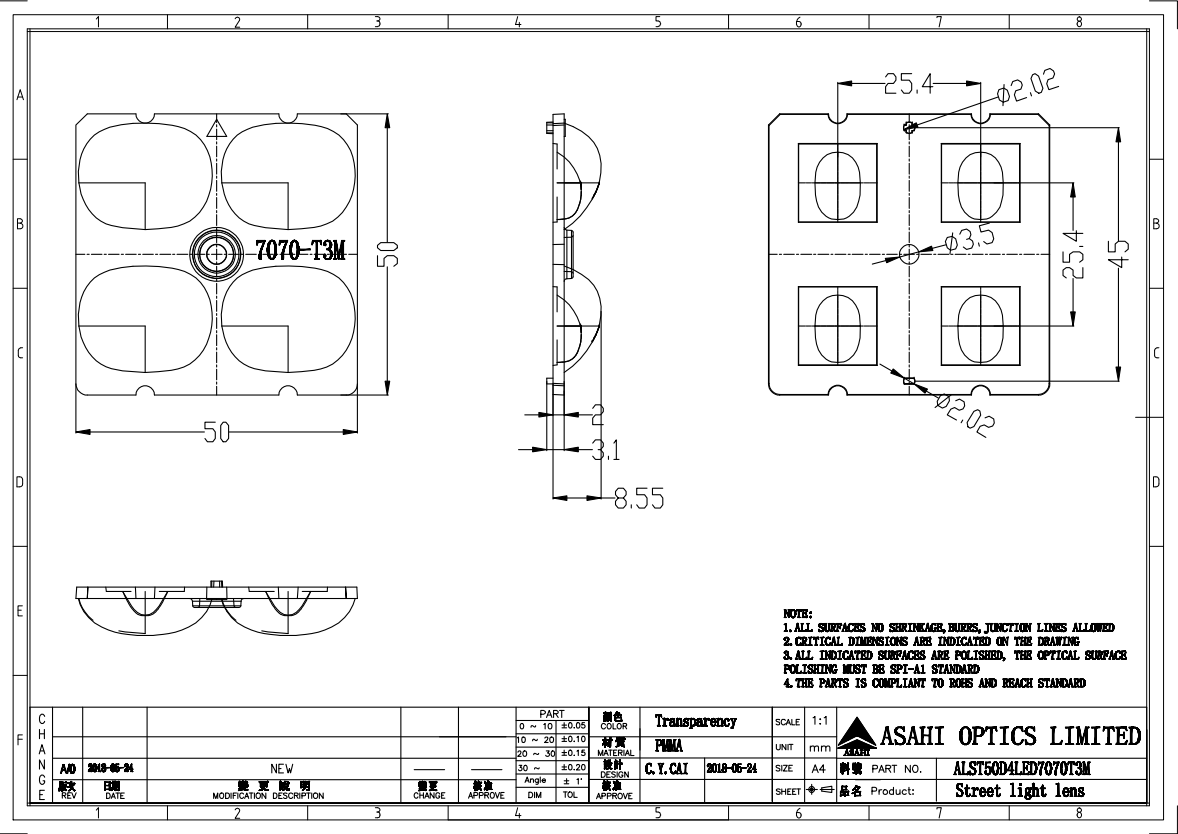

Model: ALST50D4LED7070T3M
Diameter: 50x50mm
Height: 7.95mm
Angle: Type III Asymmetric
Material: PMMA
Transmittance: >93%
LED Type: 7070LED
Lighting Applications: Street Lighting
1. The 2x2 lens is designed for high power 7070LED.
2. The design of the 2x2 Type III-Medium lens provides wide horizontal illumination, suitable for streetlight applications that require even light distribution on wider roads or squares,ensuring effective lighting coverage across the entire region.

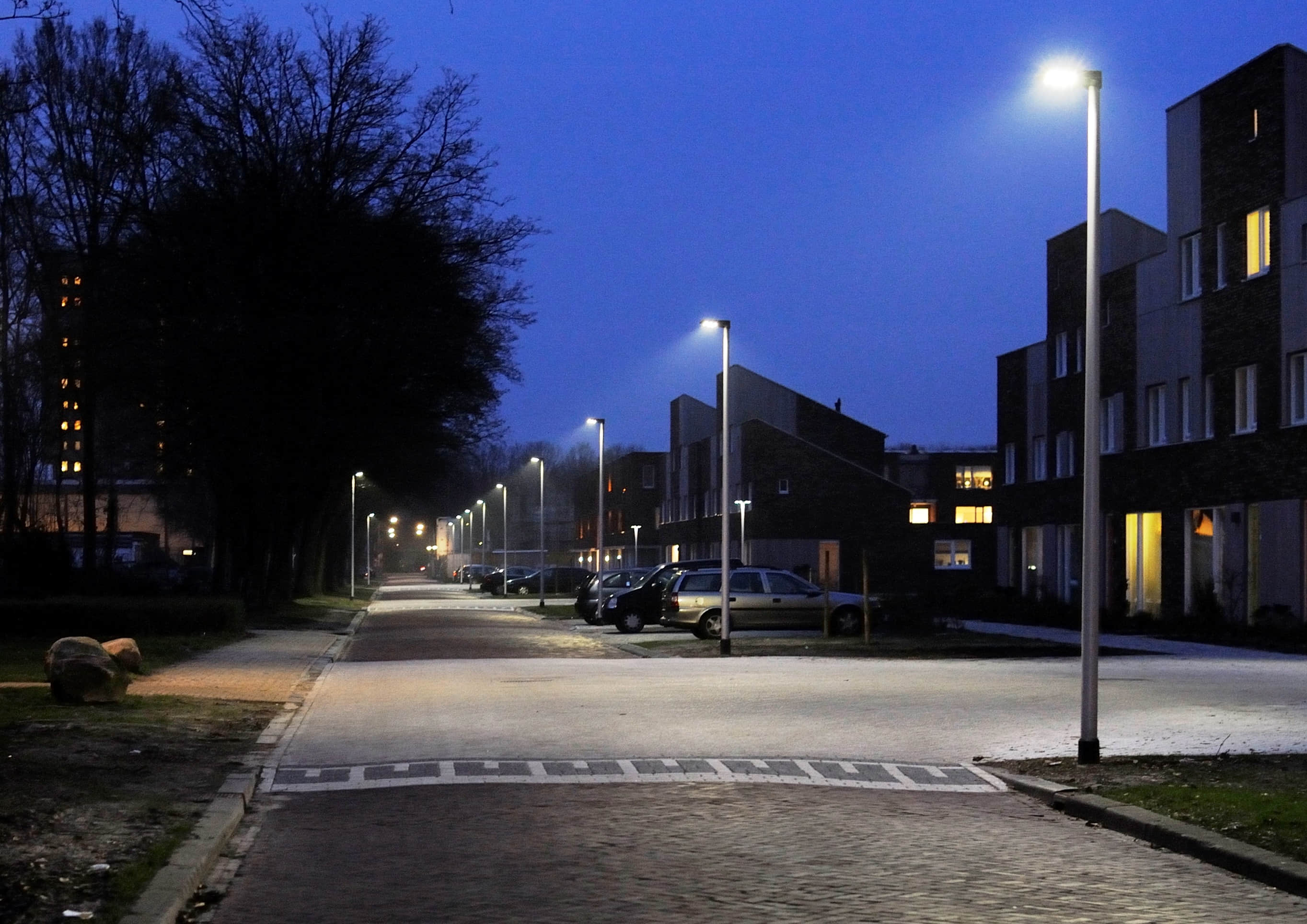

3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

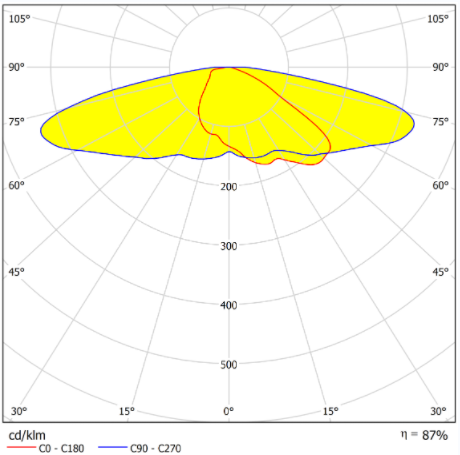

Distribution
Specifications
| Model: | ALST50D4LED7070T3M |
| Diameter: | 50x50mm |
| Height: | 7.95mm |
| Angle: | Type III-Medium |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 7070LED |
| Lighting applications | Street Lighting |
LED Type
XHP70.3
OSCONIQ™ P 7070
LUXEON 7070 HE
149 Series
EMC7070LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x2 lens is designed for high power 7070LED.
2. The design of the 2x2 Type III-Medium lens provides wide horizontal illumination, suitable for streetlight applications that require even light distribution on wider roads or squares,ensuring effective lighting coverage across the entire region.
3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
