Model: ALST173D12LED5050T2M-L
Diameter: 173x71.4mm
Height: 9.88mm
Angle: T2M-Long
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 5050LED

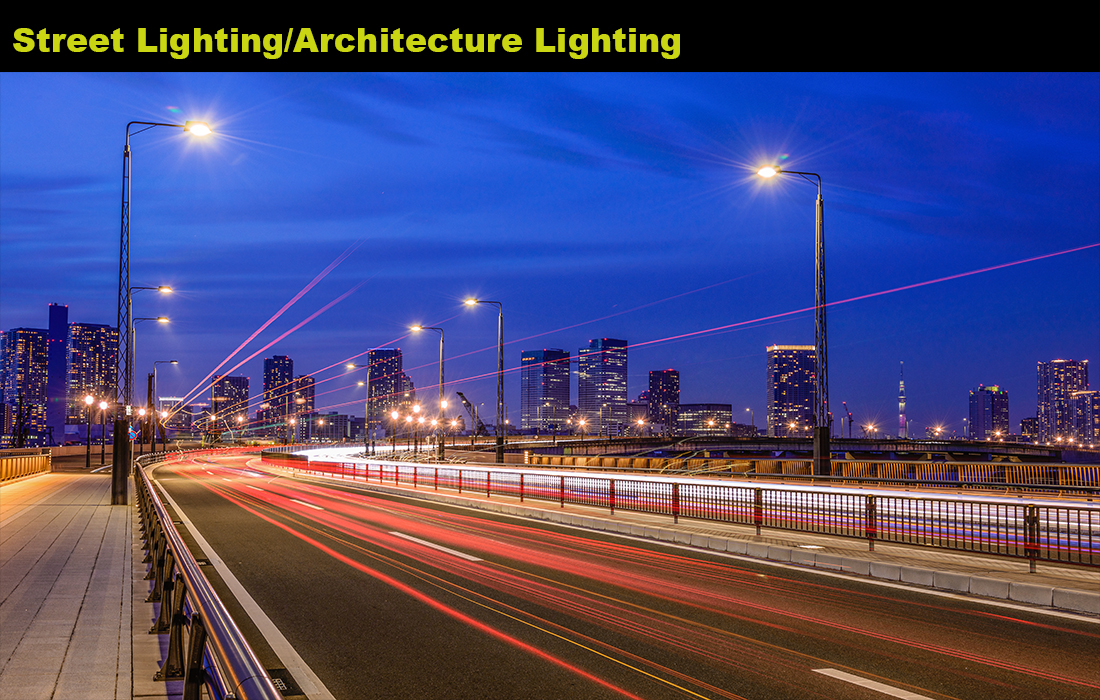

Lighting Applications: Street lighting,Architecture lighting
1. The 2x6 lens is designed for IESNA Type II (medium) beam for long pole distances and up to 8x mounting height. Suitable for European P-class and pathway lighting.
2. 2x6 TypeII-Medium Long lens provides clear and uniform illumination, improving visibility for pedestrians, cyclists, and motorists, enhancing safety.
3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

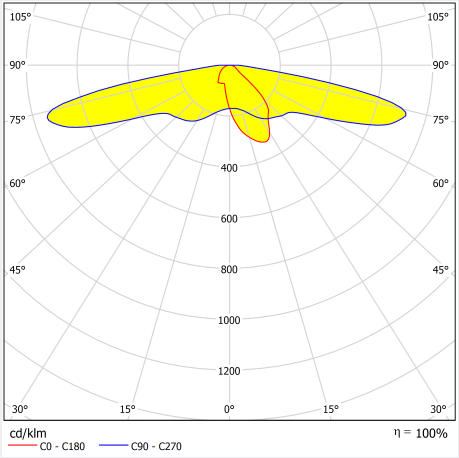

Distribution
Specifications
| Model: | ALST173D12LED5050T2M-L |
| Diameter: | 173x71.4mm |
| Height: | 9.88mm |
| Angle: | T2M-Long |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

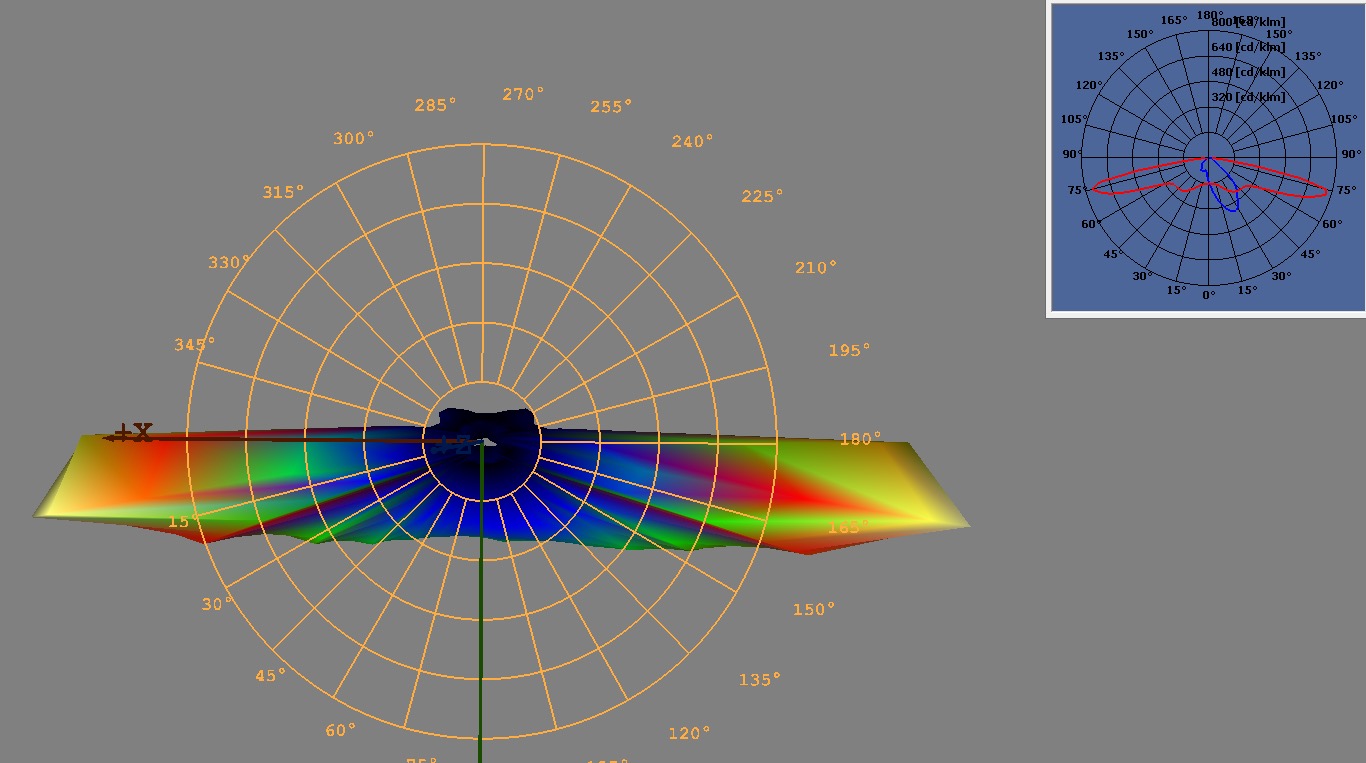

The 2x6 lens is designed for IESNA Type II (medium) Long beam for long pole distances and up to 8x mounting height. Suitable for European P-class and pathway lighting.
ASAHI OPTICS ALST173D12LED5050T2M-L Drawing.dwg
ASAHI OPTICS ALST173D12LED5050T2M-L Drawing.pdf
ASAHI OPTICS ALST173D12LED5050T2M-L PCB Drawing.dwg
