PAR lighting Track lighting 12 in 1 LED lens array

Model: AMU67D11H12W

Diameter: 67mm

Height: 11mm

Angle: 10°, 15°, 25°, 30°, 45°, 60°, 70°

Material: PMMA

Transmittance: >88%

LED Type: 2835/ 3535LED

Lighting Applications: PAR lights

1.12 in1 arrays 67X11mm diameter, suitable with projection LED lighting.

2.This series offers lenses with diameters spanning from 23 mm to 110 mm, available in configurations of 3 to 24 lens cones. Combined with a variety of beam modes, this creates a diverse and comprehensive product lineup to meet various needs

Distribution

---

Specifications

Model:	AMU67D11H12W
Diameter:	67mm
Height:	11mm
Angle:	10°, 15°, 25°, 30°, 45°, 60°, 70°
Material：	PMMA
Transmittance：	>88%
LED Applications	2835/ 3535LED
Lighting applications	PAR lights

LED Type

XPE

XPE2

XP-G2

XP-G3

OSLON SSL80

SQUARE

LUXEON HL4Z

NVSW219GL

PK2E-2LVE-B2R8N

PK2N-4LVE-SBVR8

Packaging

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

the 12in1 led lens is designed for 3535LEDs for PAR Lamp Lights

It has been at the forefront of lighting technology, illuminating stages, churches, auditoriums, convention centers, and studios with the renowned Parabolic Aluminized Reflector (PAR) Can lights.

Our innovative optics Retrofit Solutions are specifically designed for your existing incandescent and halogen-sealed beam PAR 56 & PAR 64 Can Lights.

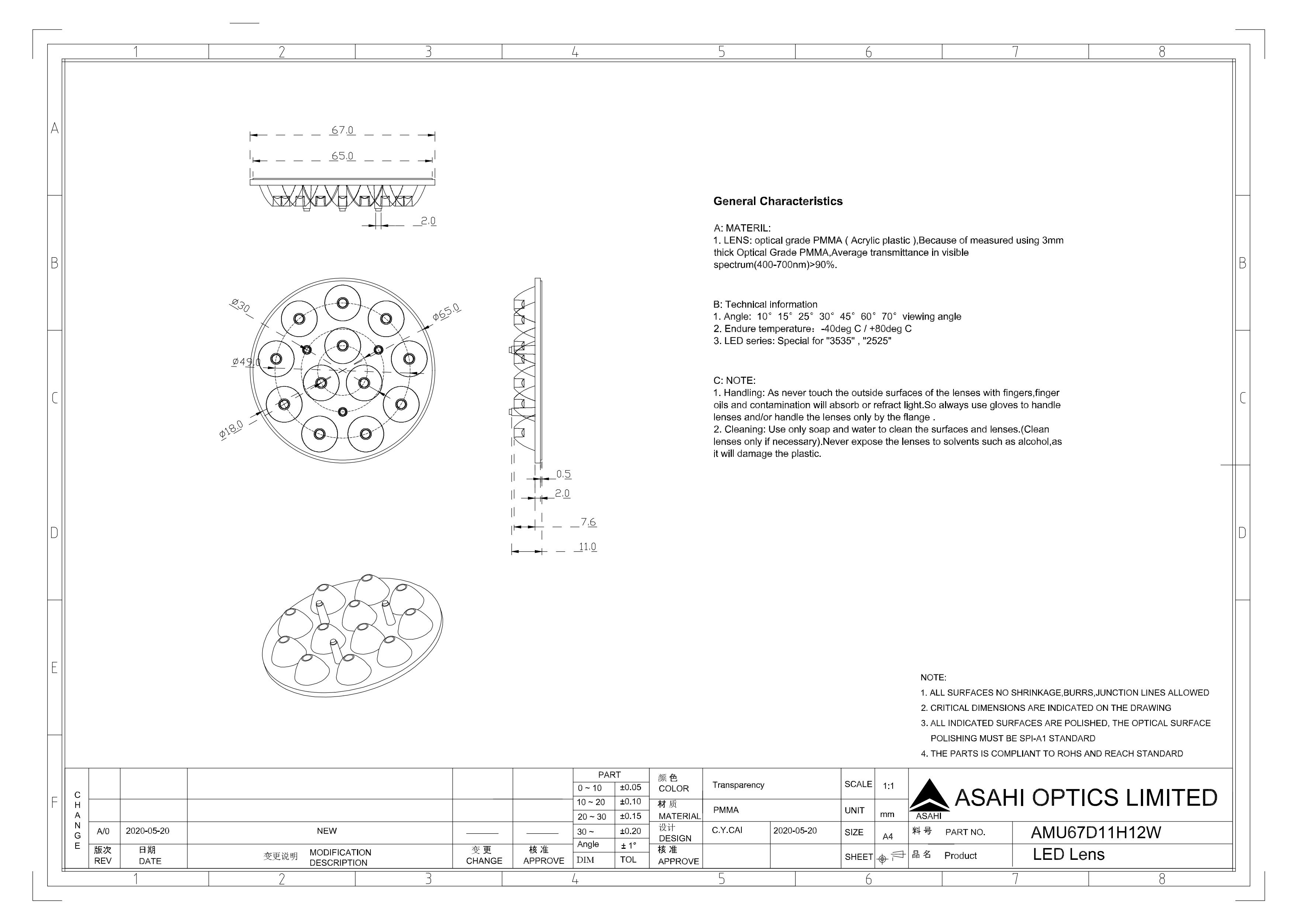

Asahi Optics AMU67D11H12W Drawing.dwg

Asahi Optics AMU67D11H12W Drawing.pdf
