3535LED 2x6 Zhaga Streets Lens T2M Horizontal Direction

Array ( [catid] => 321 [catorder] => 0 [catstatus] => 1 [contenttype] => 6 [authorid] => 0 [catname] => Product [upid] => 0 [urlpath] => product [attrcat] => 1 [attrtable] => [shorttitle] => [redirecturl] => [attr1] => 0 [attr10] => 0 [attr9] => 0 [attr8] => 0 [attr7] => 0 [attr6] => 0 [attr5] => 0 [attr4] => 0 [attr3] => 0 [attr2] => 0 [ishomepage] => 0 [catimage] => [catimages] => [cattpl] => [contenttpl] => [metatitle] => China LED Lens Manufacturers - Asahi [metakeywords] => [metadescription] => Asahi Optics offers a large range of standard optics that can be designed into any application for custom arrays. If you require a custom solution, we have a customized design service for you. [othermetas] => [addtime] => 2025-02-09 23:40:21 [updatetime] => 2025-05-12 11:08:31 [brief] => [otherinfo1] => [otherinfo2] => [otherinfo3] => [otherinfo4] => [otherinfo5] => [otherinfo6] => [otherinfo7] => [otherinfo8] => [otherinfo9] => [otherinfo10] => [parents] => Array ( ) [child] => Array ( ) [children] => Array ( ) [layer] => 0 )

Model: ALST173D12LED3535T2M-H

Diameter: 173.0mm+71.4mm

Height: 9.10mm

Angle: T2M Horizontal

Material: PMMA

Transmittance: >93%

LED Type: "3535" LED

Lighting Applications: Street Light, Area lighting, High Bay

1. Featuring a horizontal installation design, this lens provides a distinctive advantage for specific lighting setups.

2. This lens is made of high quality PMMA material,the light transmission can reach ＞93%.

3. With excellent IP66-rated for enhanced protection against dust and water ingress.

Specifications

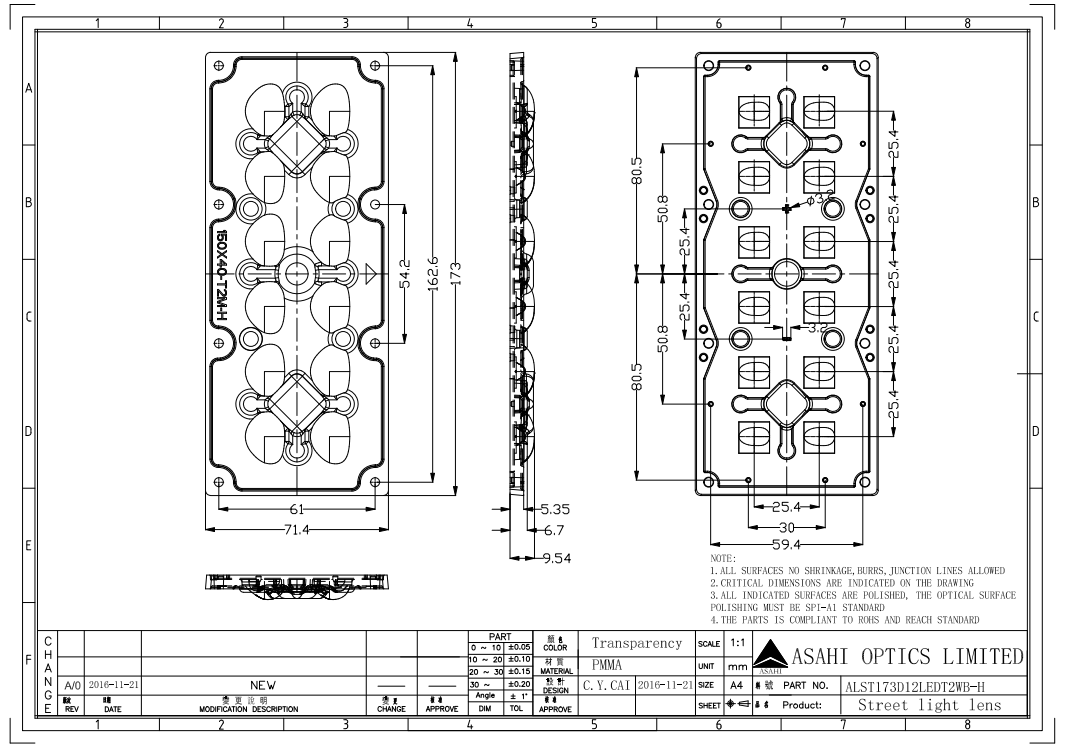

Model:	ALST173D12LED3535T2M-H
Diameter:	173*71.4mm
Height:	9.10mm
Angle:	T2M Horizontal
Material：	PMMA
Transmittance：	>93%
LED Applications	"3535" LED
Lighting applications	Street Lighting, Area lighting,

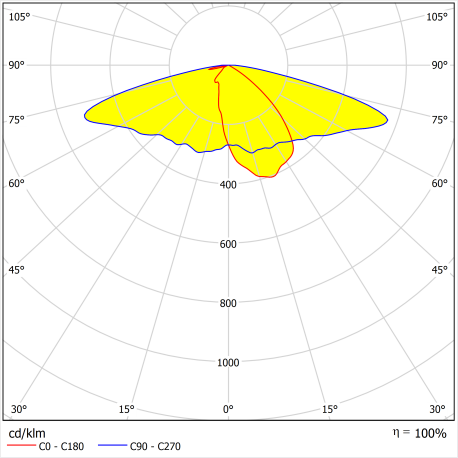

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
