Model: AJST304D22LEDT4S
Diameter: 304mm
Height: 8.6mm
Angle: TYPE4 Short
Material: PC
Transmittance: >88%
LED Type: 7070LED
Lighting Applications: Street lighting

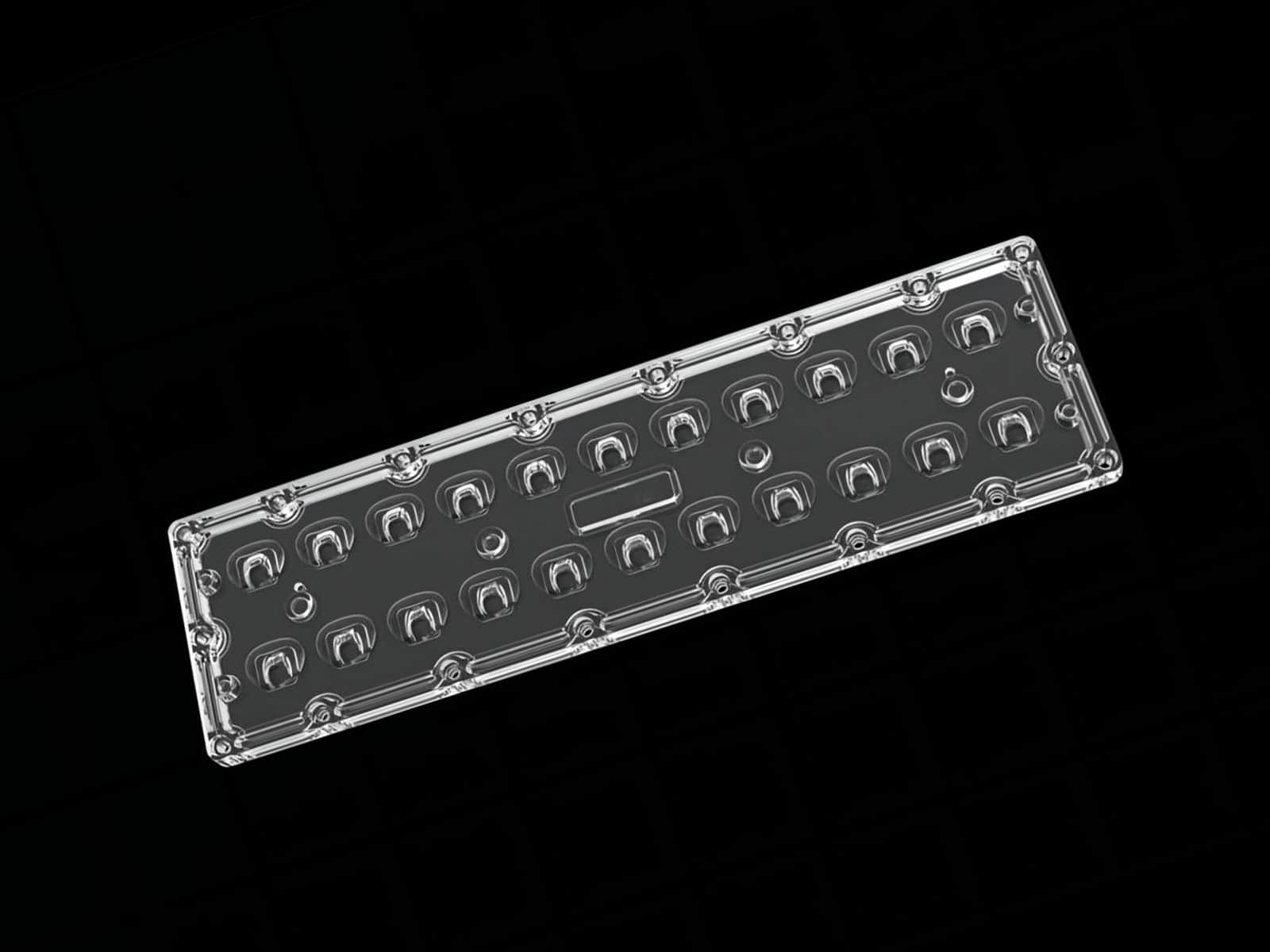

1.304x87mm 22in1 TYPE IV Short Beam angle Lens.

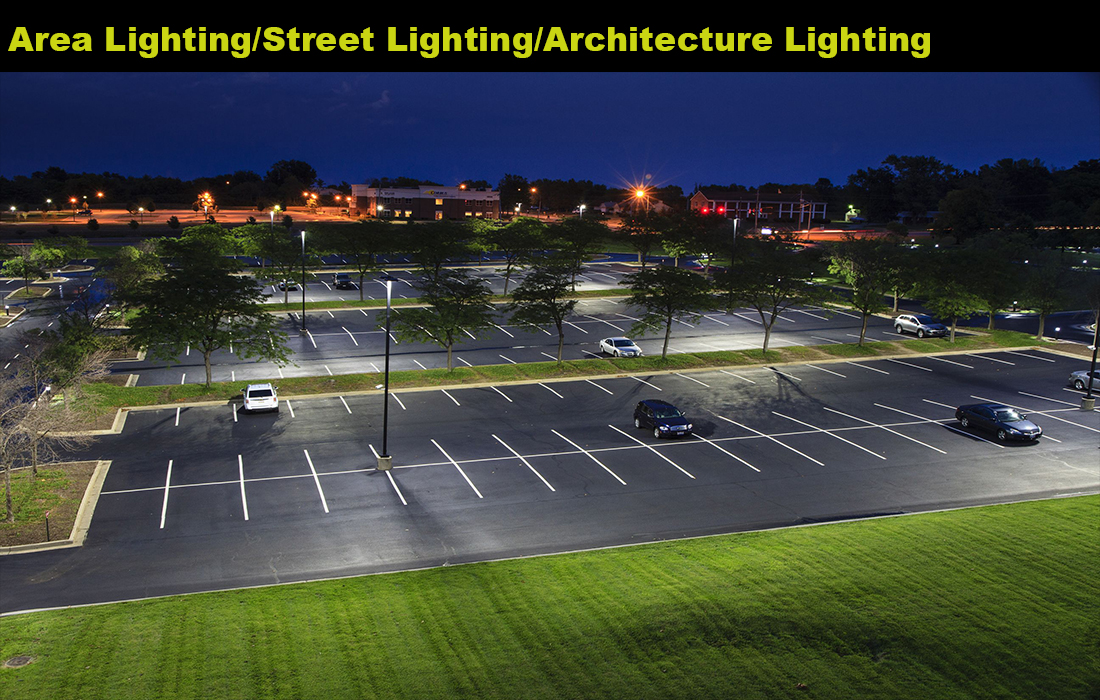

2.The T4 short angle can be used for close area illumination. Scenes that require high intensity lighting over short distances with wide coverage. For example, parking lot lighting: light is concentrated in the parking area to avoid scattering to surrounding roads or buildings.

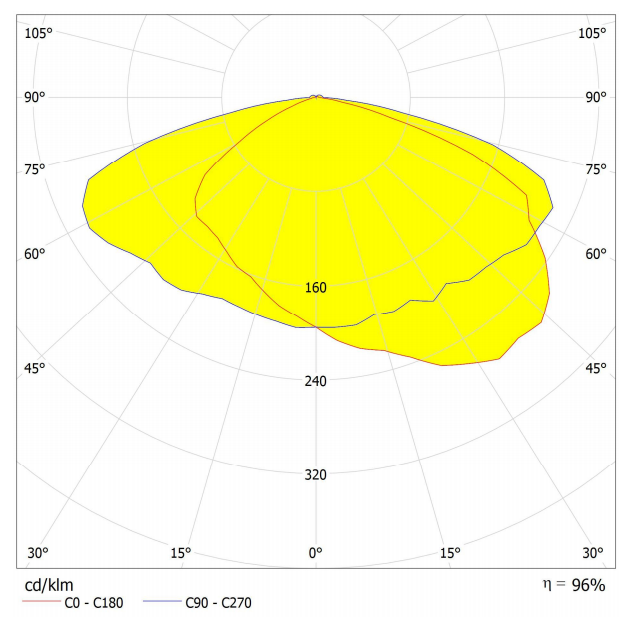

Distribution
Specifications
| Model: | AJST304D22LEDT4S |
| Diameter: | 304mm |
| Height: | 8.6mm |
| Angle: | TYPE4 Short |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 7070LED |
| Lighting applications | Street Lighting |
LED Type
XHP70.3
OSCONIQ™ P 7070
LUXEON 7070 HE
149 Series
EMC7070LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

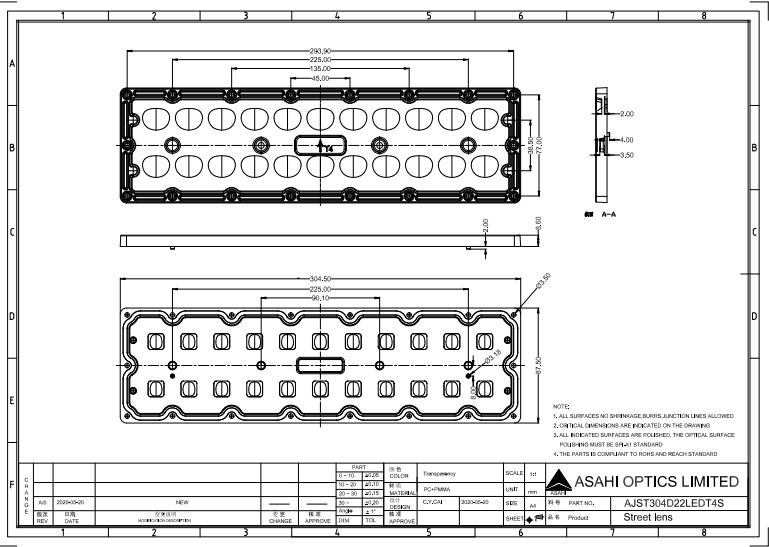

Asahi Optics AJST304D22LEDT4S Drawing.dwg
Asahi Optics AJST304D22LEDT4S Drawing.pdf
Asahi Optics AJST304D22LEDT4S.IES
