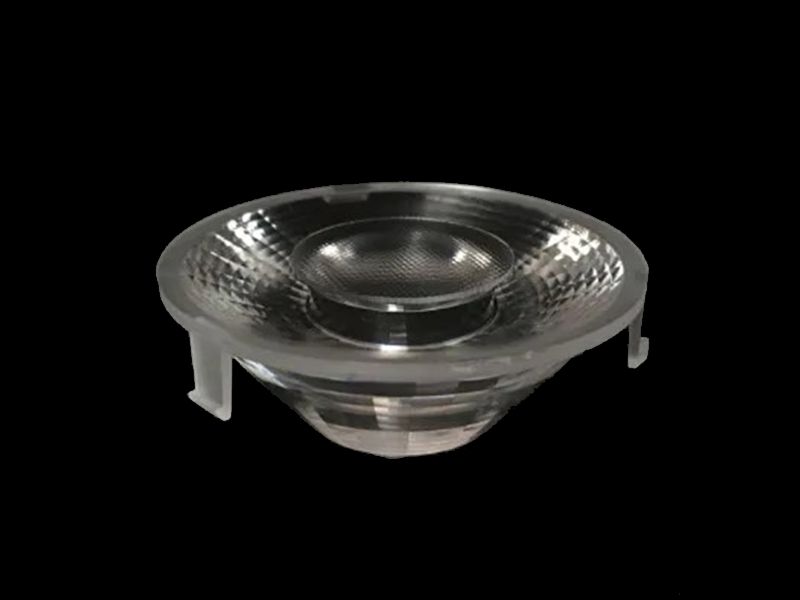

58mm Cob Chip Lens With Buckle For Easy Assemble

Model: AHCOB5831D

Diameter: 58.0mm

Height: 31.6mm

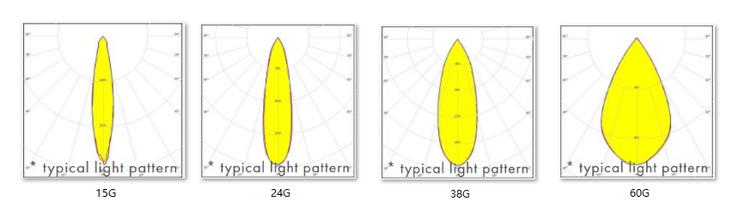

Angle: 15°; 24°; 38°; 60°

Material: PMMA

Transmittance: 90%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

1, 58mm Cob Chip Lens With Buckle For Easy Assemble

2, COB lenses are engineered to maximize the optics efficiency of COB LEDs. They are designed to minimize light loss and ensure a high percentage of the emitted light is effectively directed toward the target area. This results in improved energy efficiency and reduced wasted light.

3, COB lenses help create a uniform light distribution, minimizing hotspots and ensuring even illumination across the target area. This is particularly important in applications such as retail lighting and display lighting, where consistent and uniform lighting is required to highlight products or create visually appealing displays.

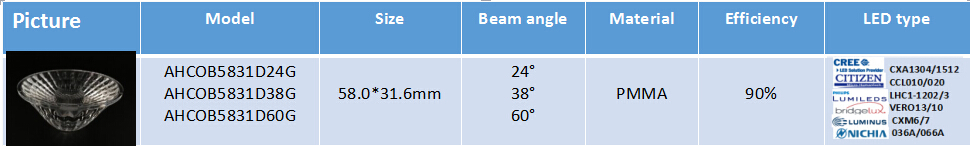

Specifications

Model:	AHCOB5831D
Diameter:	58.0mm
Height:	31.6mm
Angle:	13°,24°,38°,60°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting, Spot Light, Down Light

Specification Download

20160919142844154415 20160919143227912791

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
