Model: ALST173D24LEDT2M
Diameter: 173mm
Height: 9.3mm
Angle: T2M
Material: PC
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: Street lighting,Architecture lighting,High Bay lighting

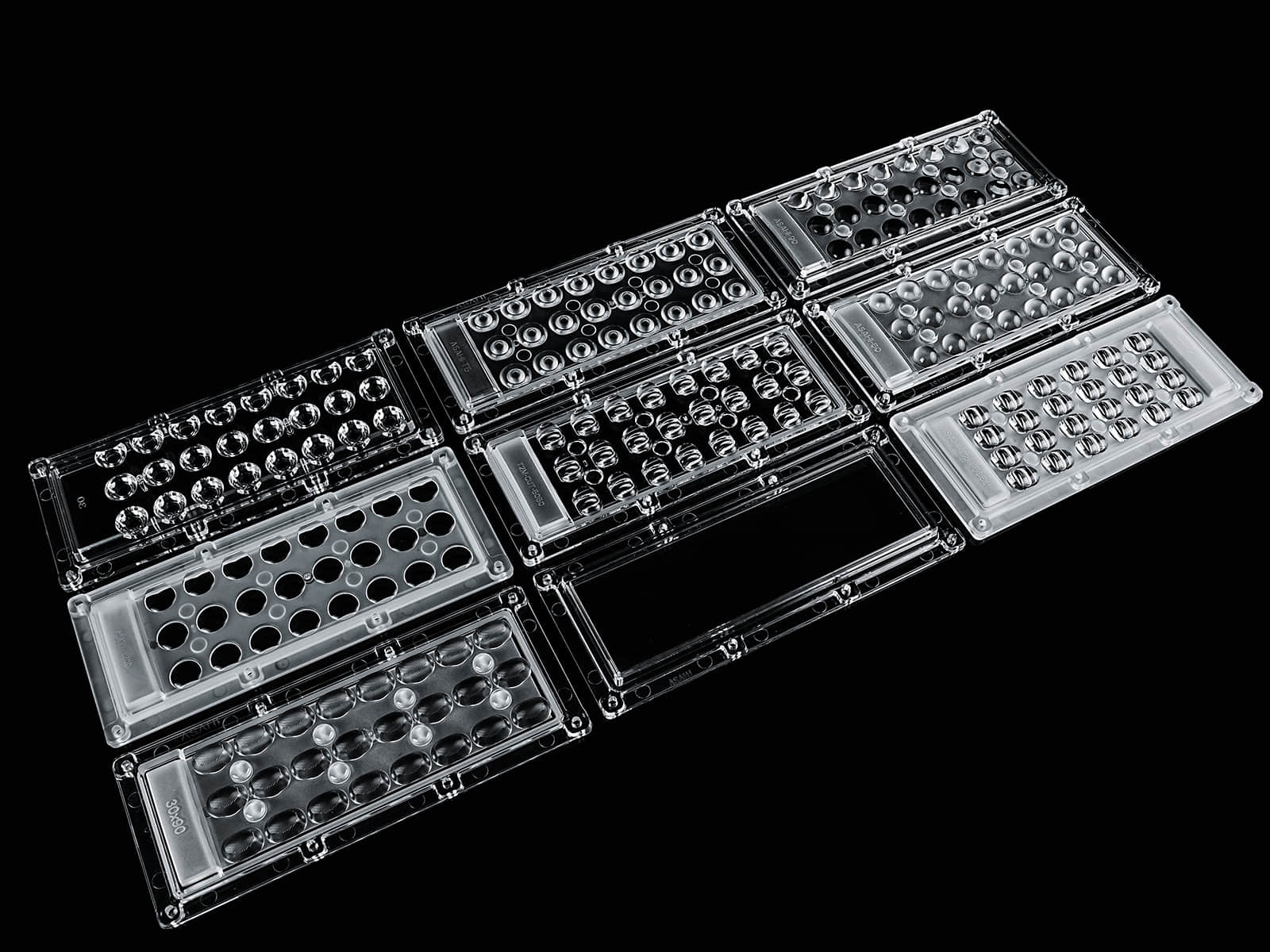

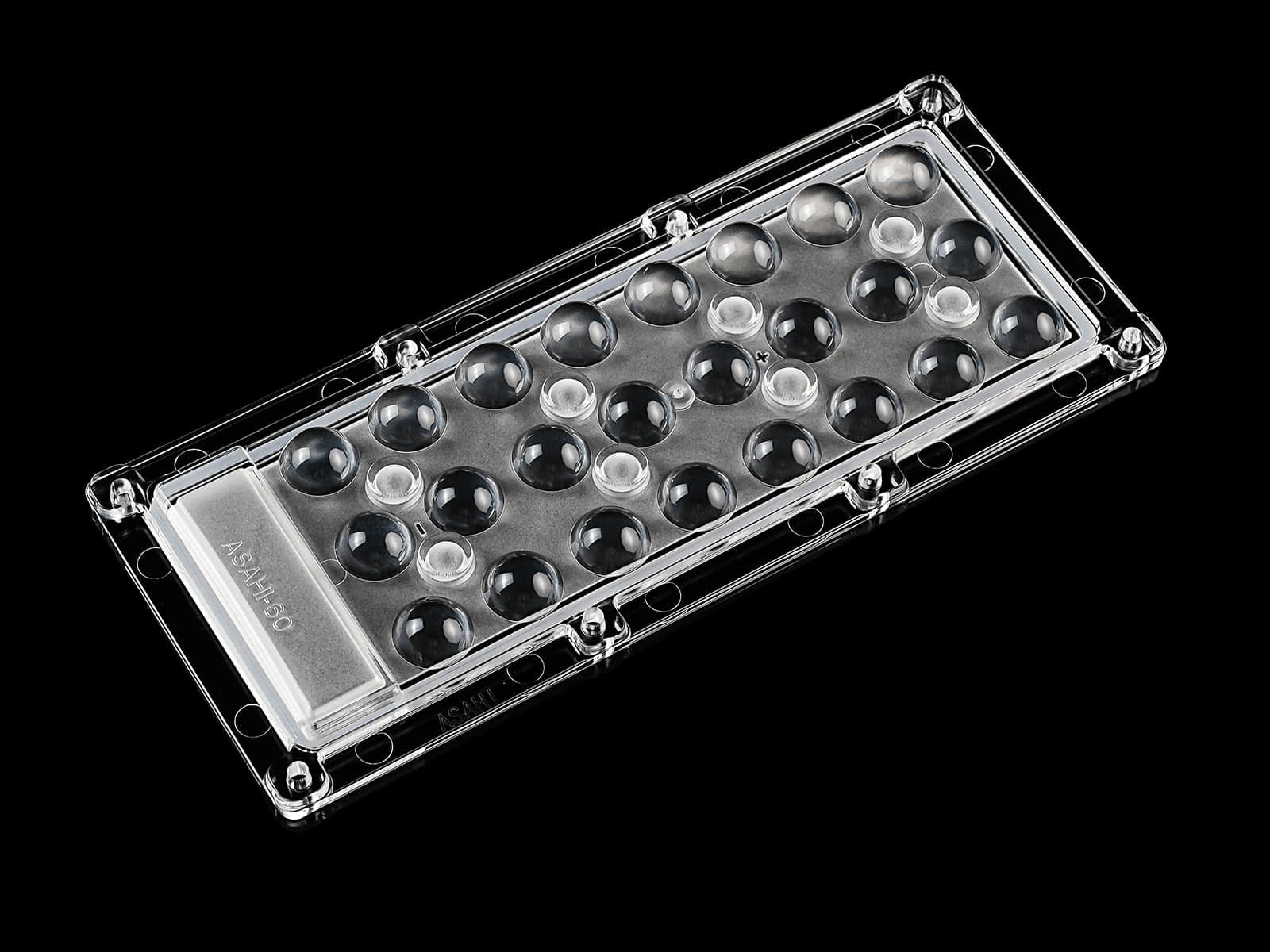

1. 3x8 IP lens 24LEDs, It shares the same profile 173mm*71.4mm as the 2x6 lens does.
2. It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED
3. With high weather resistance IP66. The IP66 rating ensures excellent protection against water and dust, making the lens suitable for outdoor street lighting in various weather conditions.

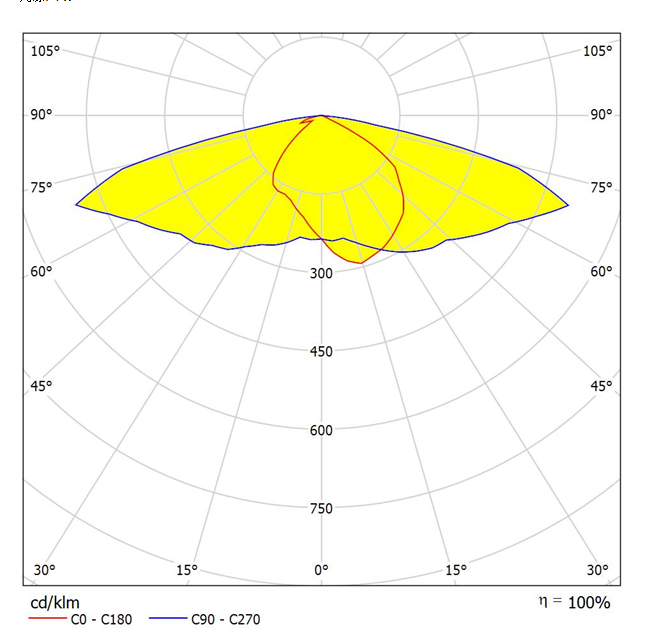

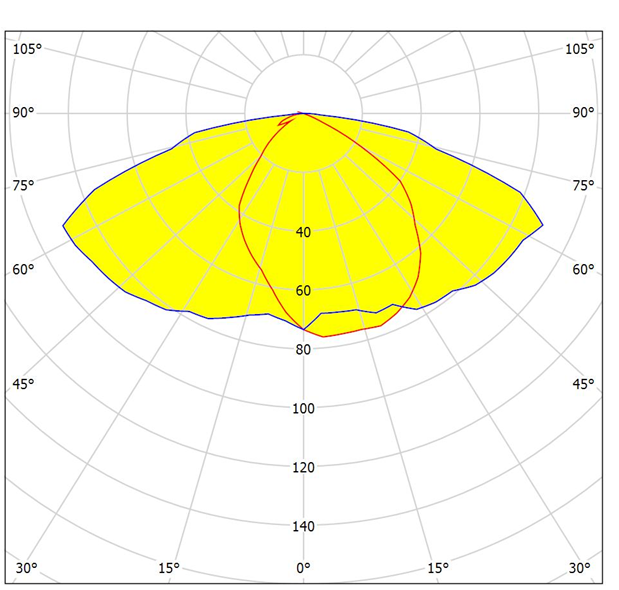

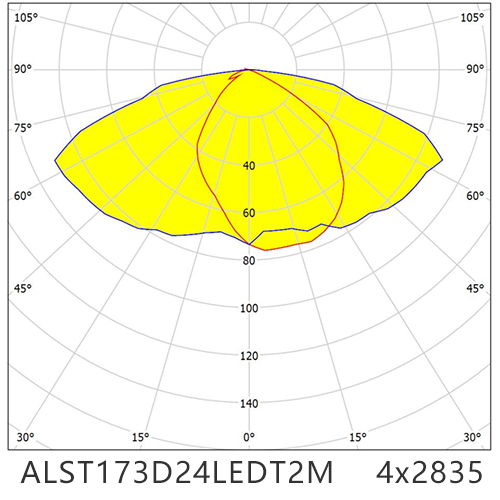

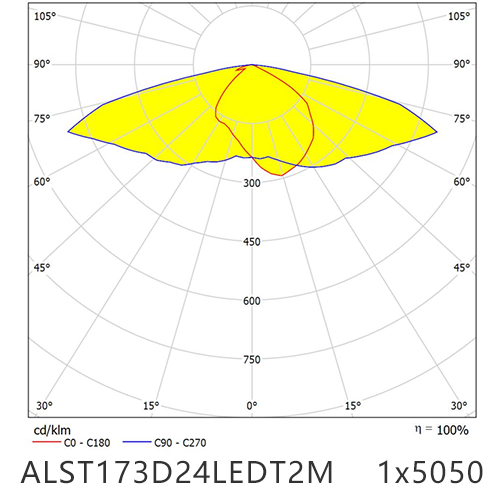

Distribution
Specifications
| Model: | ALST173D24LEDT2M |
| Diameter: | 173x71.4mm |
| Height: | 9.3mm |
| Angle: | T2M |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
It shares the same profile 173mmx71.4mm as the 2x6 lens does,
which is specially desgined for the application on corridors, such as logistics warehouses and supermarkets.
The beam angle is available for street light T2M, T5, and high bay lighting 30°, 60°，90°, 120°, 30x90
The high efficiency and powerful lumen output to meet customers’ required power
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED
ASAHI OPTICS ALST173D24LEDT2M 3D Drawing.stp
ASAHI OPTICS ALST173D24LEDT2M Drawing.dwg
ASAHI OPTICS ALST173D24LEDT2M Drawing.pdf
ASAHI OPTICS ALST173D24LED PCB Drawing.dwg
ASAHI OPTICS 3X8 LENS LED BOARD.jpg
