Model: AJHB252D72LED
Size: 252x70 (mm)
Height: 4.6mm
Angle: 60°,90°,80x150°
Material: PC
Transmittance: >88%
LED Type: 2835/3030 LED
Lighting Applications: Street lighting
1. AJHB252D72LED module integrates 72 independent optical units, offering multiple beam angle options, including 60°, 90°, and 80x150° for tailored illumination.
2. The centrally integrated groove design perfectly adapts to the heat dissipation structure, providing built-in cable and controller storage space, enhancing the overall aesthetic appeal of the luminaire design.

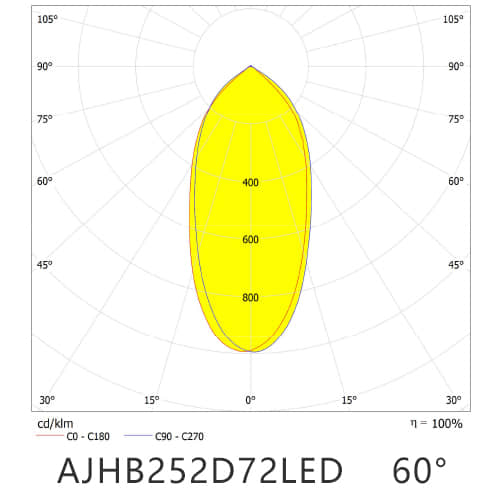

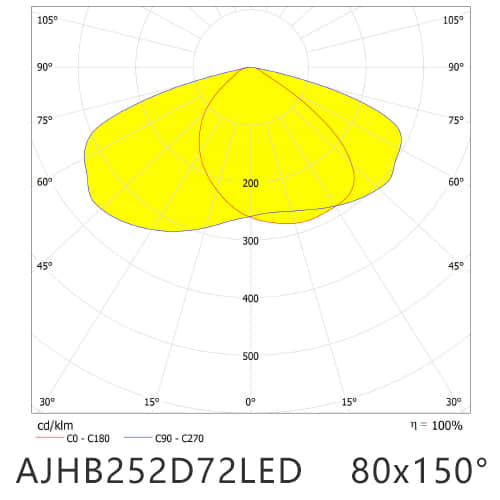

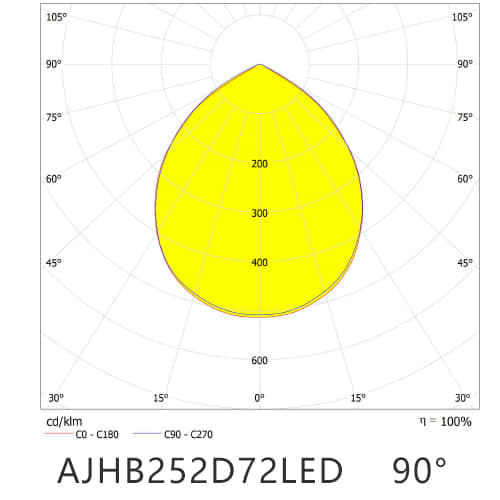

Distribution
Specifications
| Model: | AJHB252D72LED |
| Size: | 252x70 (mm) |
| Height: | 4.6mm |
| Angle: | 60°,90°,80x150° |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 2835/3030 LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
