Model: ASL280D26H24LED
Diameter: 280x26mm
Height: 13.43mm
Angle: 30°, 60°, 90°, 15x60°
Material: PMMA
Transmittance: 88%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting
1. The lens allows for the selection of different beam angles. This means that the light emitted from the fixture can be adjusted to provide various illumination patterns, ranging from narrow spots to wider floods.
2. The lens helps control the direction and spread of light emitted by the fixture, ensuring that the light is efficiently distributed in the desired area or surface within the selected beam angle. It provides flexibility in achieving different lighting effects and coverage.
3. The lens aids in distributing the light evenly across a specific area or surface within the selected beam angle. It helps minimize hotspots or dark spots, providing a uniform and consistent illumination from the linear lighting fixture.

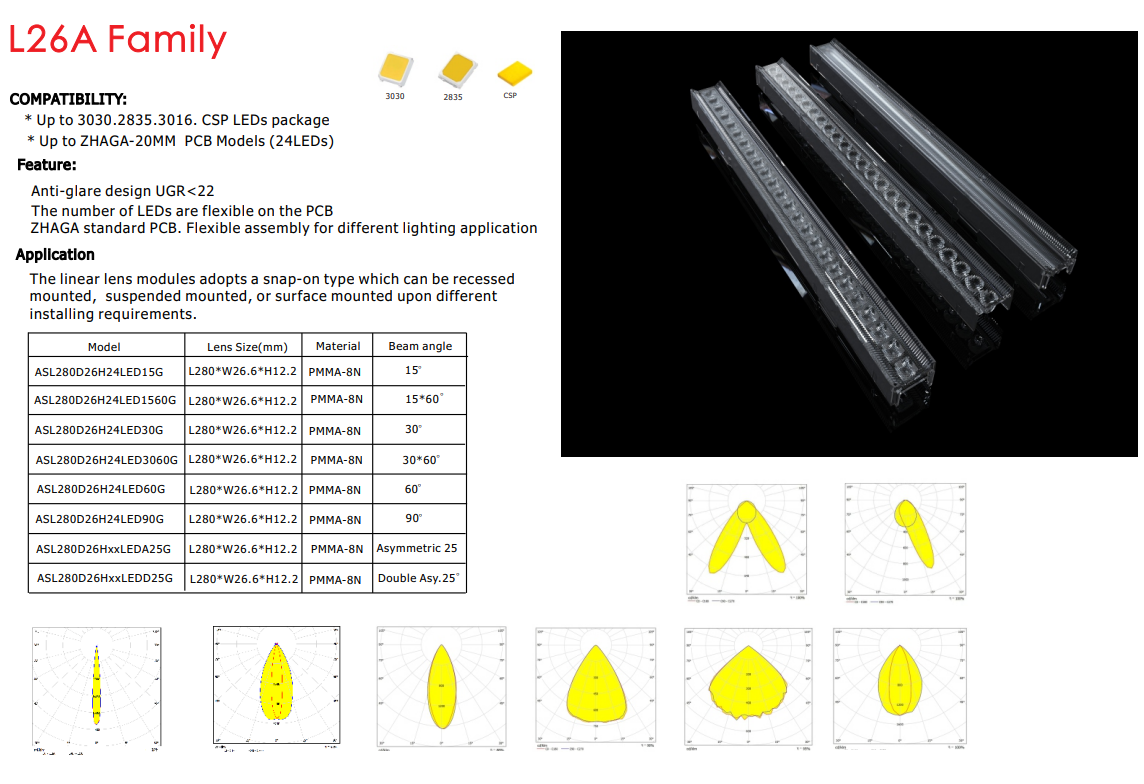

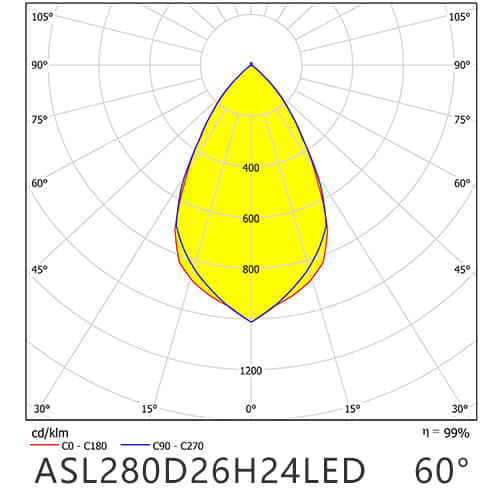

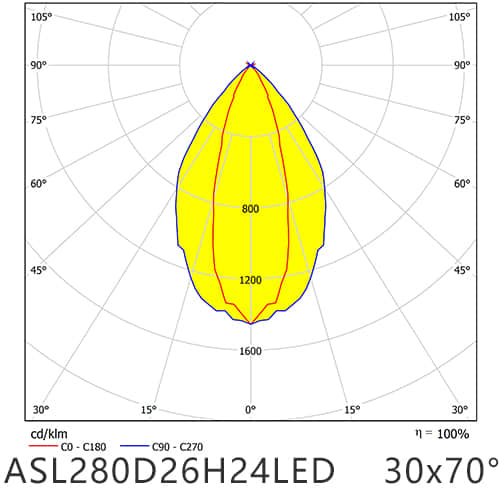

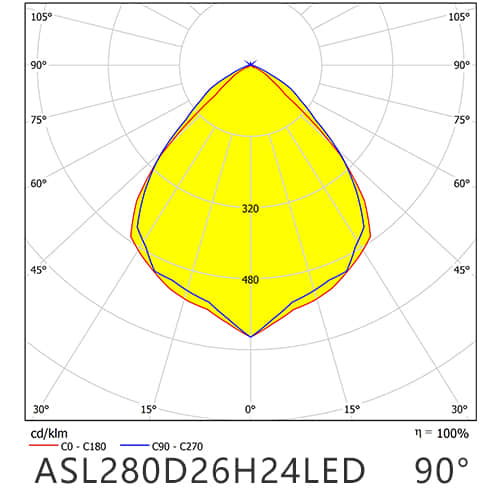

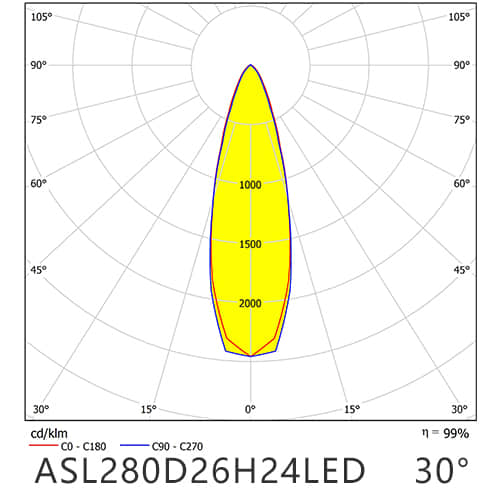

Distribution
Specifications
| Model: | ASL280D26H24LED |
| Diameter: | 280x26mm |
| Height: | 13.43mm |
| Angle: | 30°, 60°, 90°, 15x60° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting, Office Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ASL280D26H24LED 3D Drawing.stp
ASAHI OPTICS ASL280D26H24LED25G PCB Drawing.dxf
ASAHI OPTICS ASL280D26H24LED25G PCB Drawing.pdf
ASAHI OPTICS ASL280D26H24LED25G Lens IES.ies
ASAHI OPTICS ASL280D26H24LED35G Lens IES.ies
ASAHI OPTICS ASL280D26H24LED60G Lens IES.ies
ASAHI OPTICS ASL280D26H24LED90G Lens IES.ies
ASAHI OPTICS ASL280D26H24LED3070G Lens IES.ies
ASAHI OPTICS ASL280D26H24LED3090G Lens IES.ies
ASAHI OPTICS ASL280D26H24LED6090G Lens IES.ies
