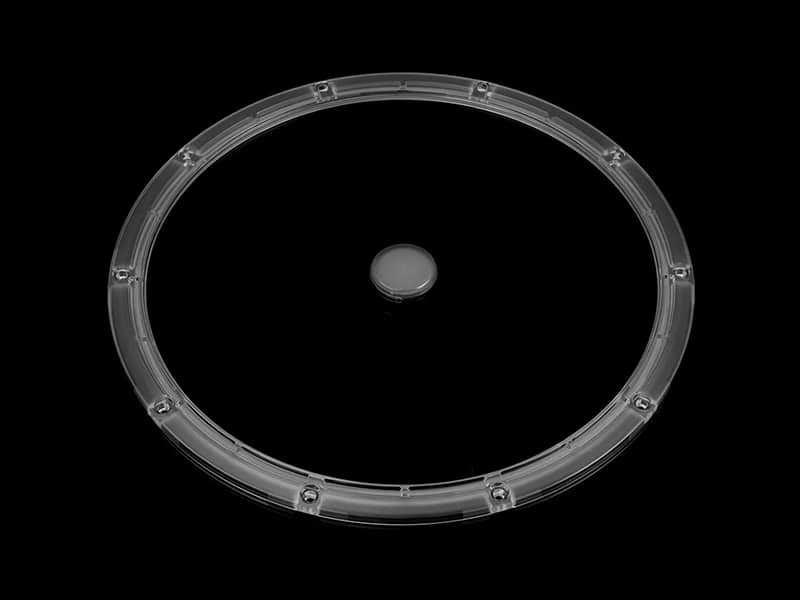

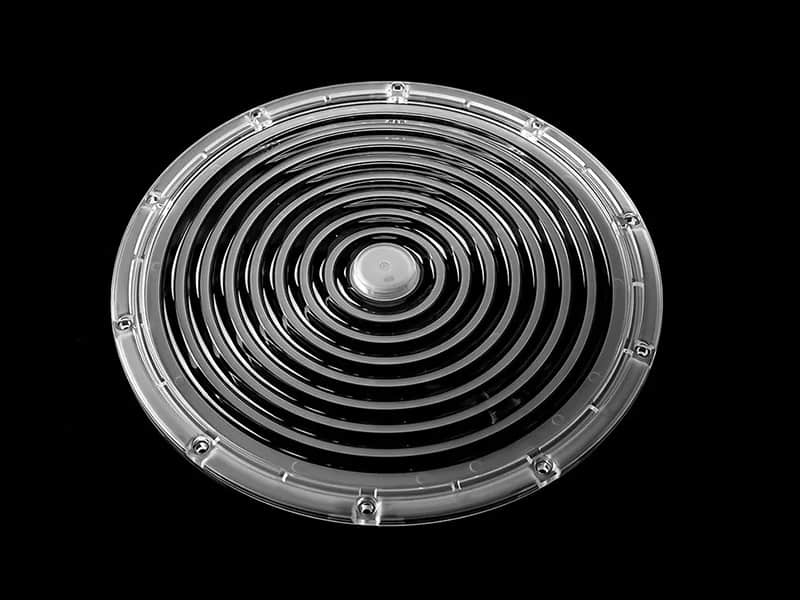

Model: UFO265D60G,90G,120G-200W-B26
Diameter: 265mm
Height: 7.0mm
Angle: 60°,90°,120°
Material: PC-1250Z TEIJIN
Transmittance: >88%
LED Type: 2835/ 3030LED

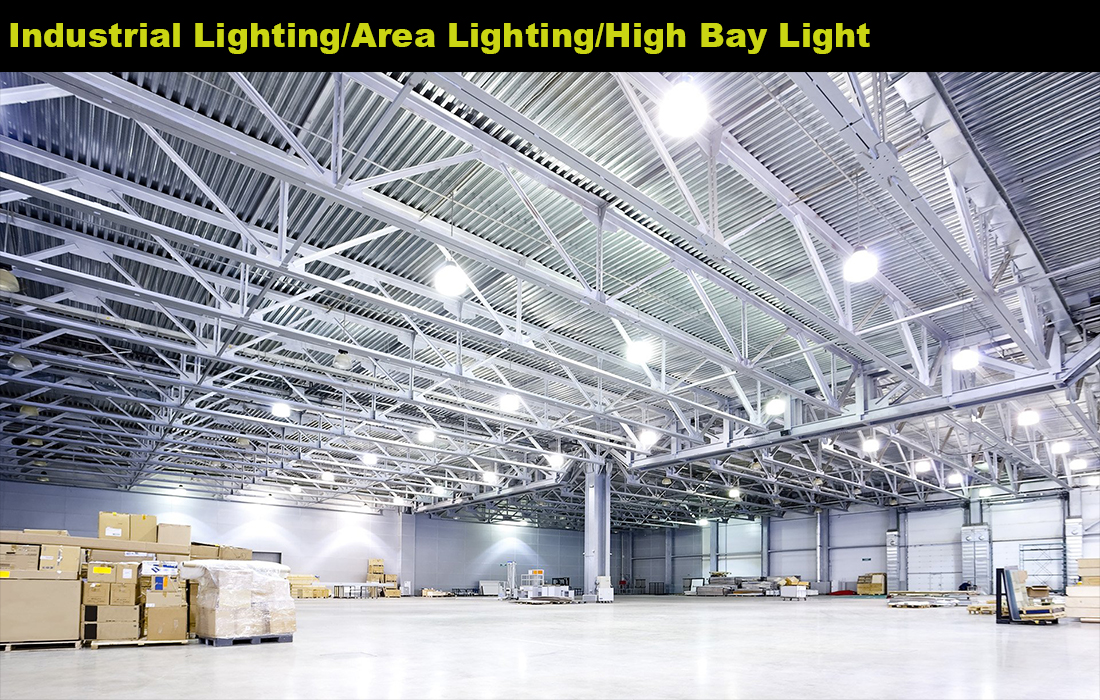

Lighting Applications: High Bay Lighting, Area Lighting
1.265mm UFO industrial light with a 200W 3030LED and is available in 60°, 90° and 120° options.
2.Among them, the 120-degree lens is designed with a flat shape to provide a wider range of lighting.
3.The 265mm diameter UFO lens apply to many different lighting application scenarios. Its size may be large enough to meet extensive lighting needs, including indoor and outdoor lighting, such as commercial buildings, industrial areas, parking lots, stadiums, etc.

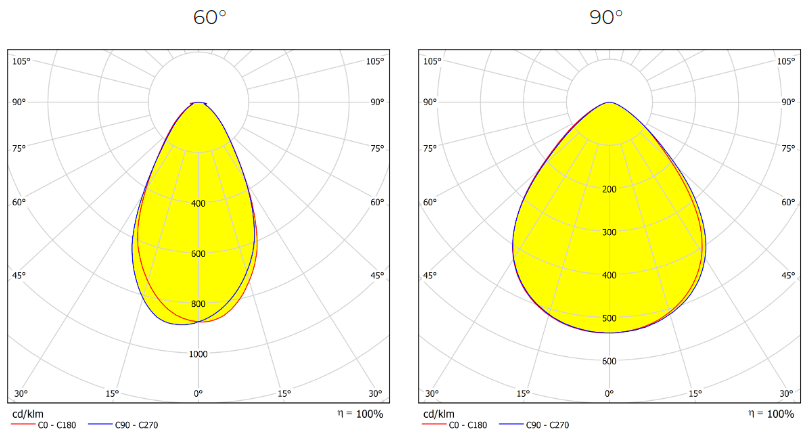

Distribution
Specifications
| Model: | UFO265D60G,90G,120G-200W-B26 |
| Diameter: | 265mm |
| Height: | 7.0mm |
| Angle: | 60°,90°,120° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Industrial lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS UFO265D60G,90G-200W-B26 lens 3D drawing.STP
ASAHI OPTICS UFO265D120G-200W-B26 lens 3D drawing.STP

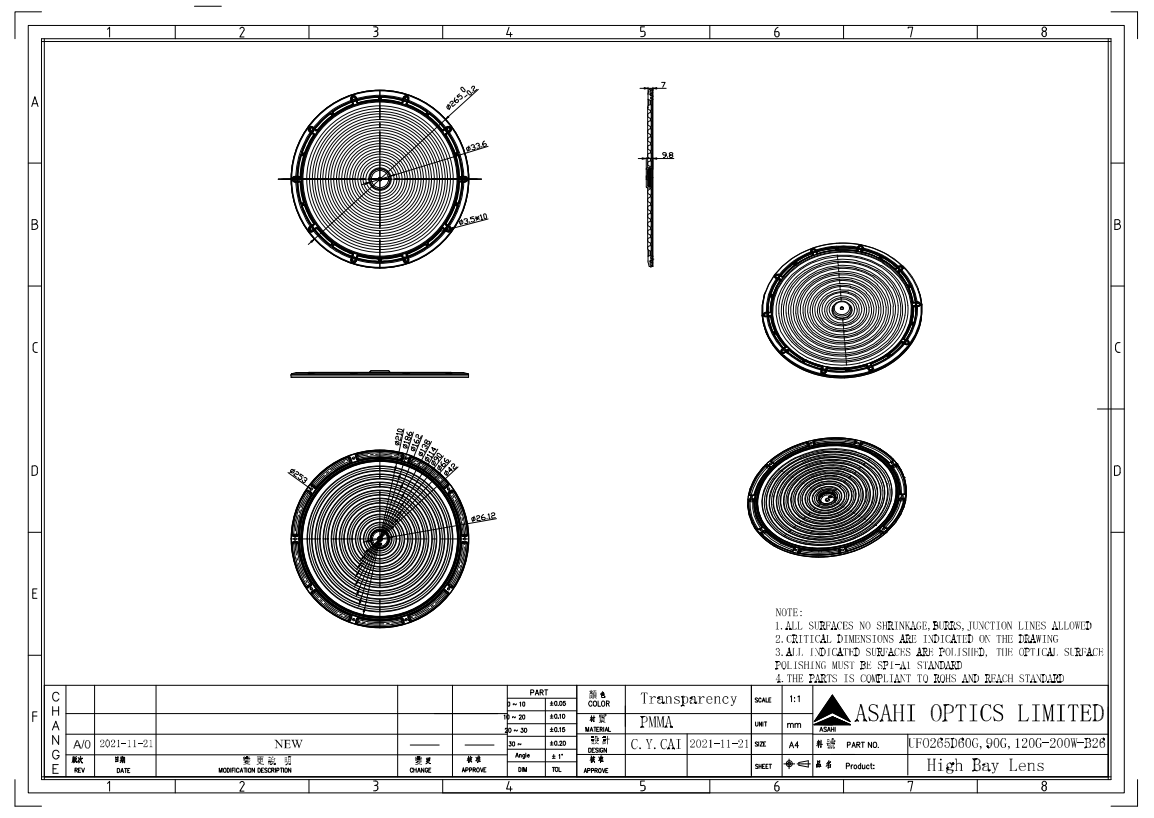

ASAHI OPTICS UFO265D60G,90G,120G-200W-B26 Drawing.dwg
ASAHI OPTICS UFO265D60G,90G,120G-200W-B26 Drawing.pdf
ASAHI OPTICS UFO265D60G-200W-B26 lens IES.ies
ASAHI OPTICS UFO265D90G-200W-B26 lens IES.ies
ASAHI OPTICS UFO265D120G-200W-B26 lens IES.ies
