Model: ASL280D40HXXLEDDA25G
Diameter: 280mm
Height: 40mm
Angle: Double Asymmetric 25°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 2835/ 3030LED

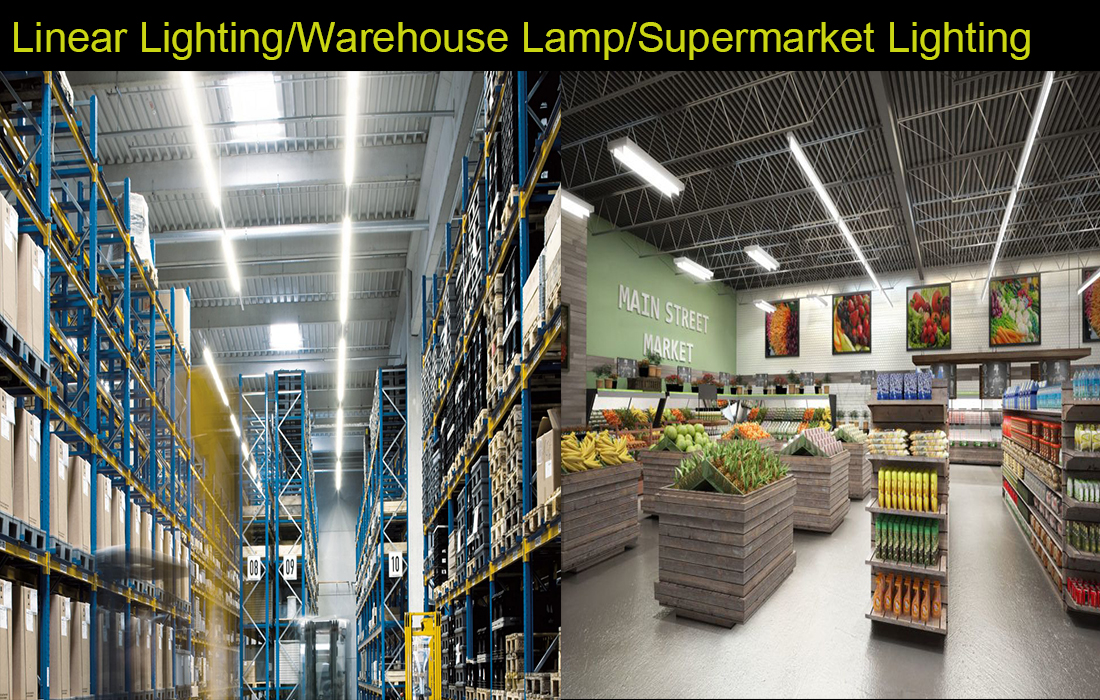

Lighting Applications: Linear Lighting, Area Lighting
1. It's compatible with Zhaga standard PCB.
2. PMMA material with 93% lighting efficiency.
3. Excellent lighting performance for indoor lighting.
4. Lower UGR to protect human eyes.
5. Asahi often offer a range of customization options for indoor linear lighting lenses. These options include different levels of light diffusion, beam angles, and color temperature control. Customized lenses allow designers and architects to tailor the lighting to specific requirements, creating unique and personalized lighting solutions.

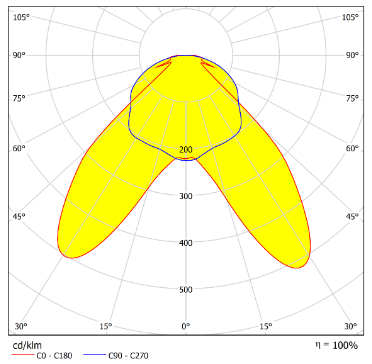

Distribution
Specifications
| Model: | ASL280D40HXXLEDDA25G |
| Diameter: | 280mm |
| Height: | 40mm |
| Angle: | double asymmetric 25° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Linear Lighting, OfficeLighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

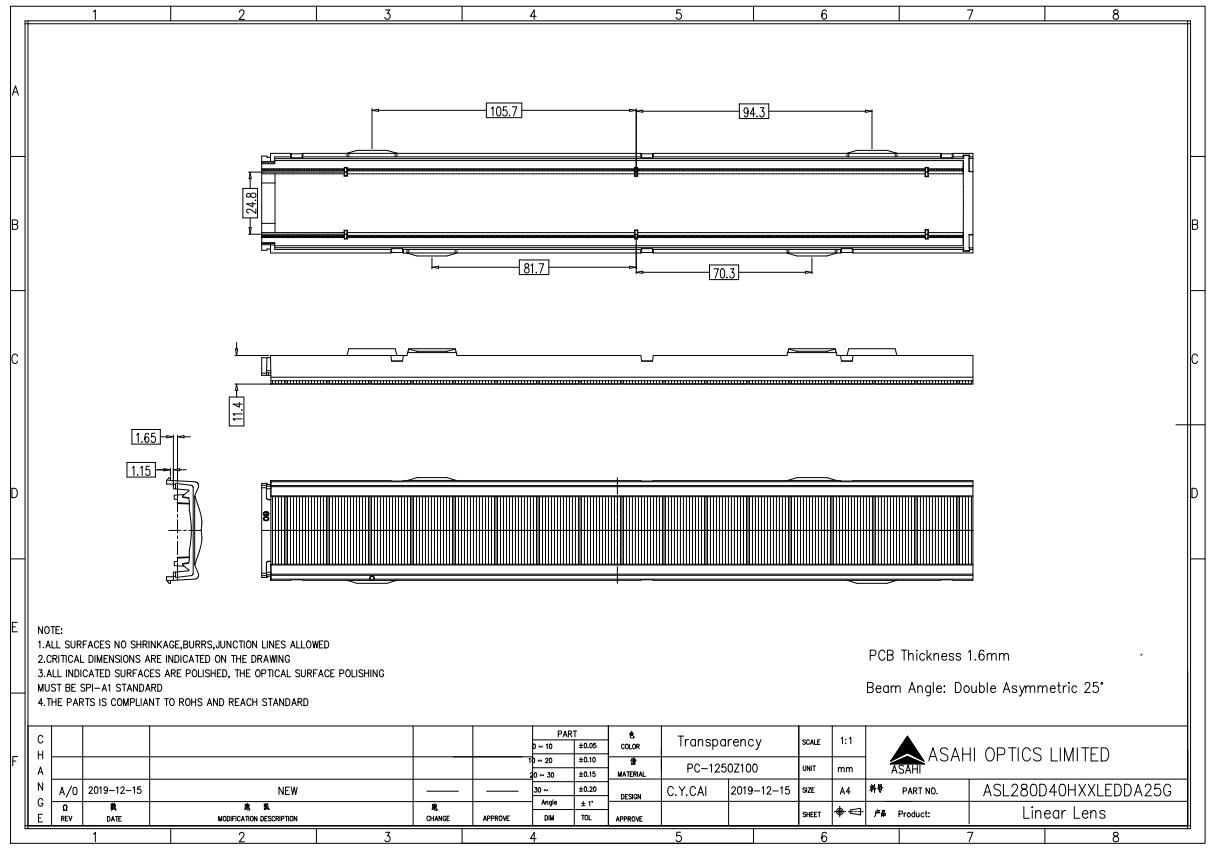

ASAHI OPTICS ASL280D40HXXLEDDA25G lens 3D Drawing.stp
ASL280D40HXXLEDDA25G.PDF Drawing
