10 LEDs lens TYPEII Medium 5050 LED for street lighting

Model: ARST50D10LEDT2MCUT-OFF

Diameter: 50x50mm

Height:

Angle: T2M-cutoff

Material: PMMA

Transmittance: >93%

LED Type: 5050LED

Lighting Applications: Street Lighting

1. The 50x50mm 10LED Lens T3 features wide urban roads for highway lighting.

2. 10LED lens designed by 5050LED keeps the standard 50mmx50mm dimension to achieve maximum high lighting efficiency for street lighting.

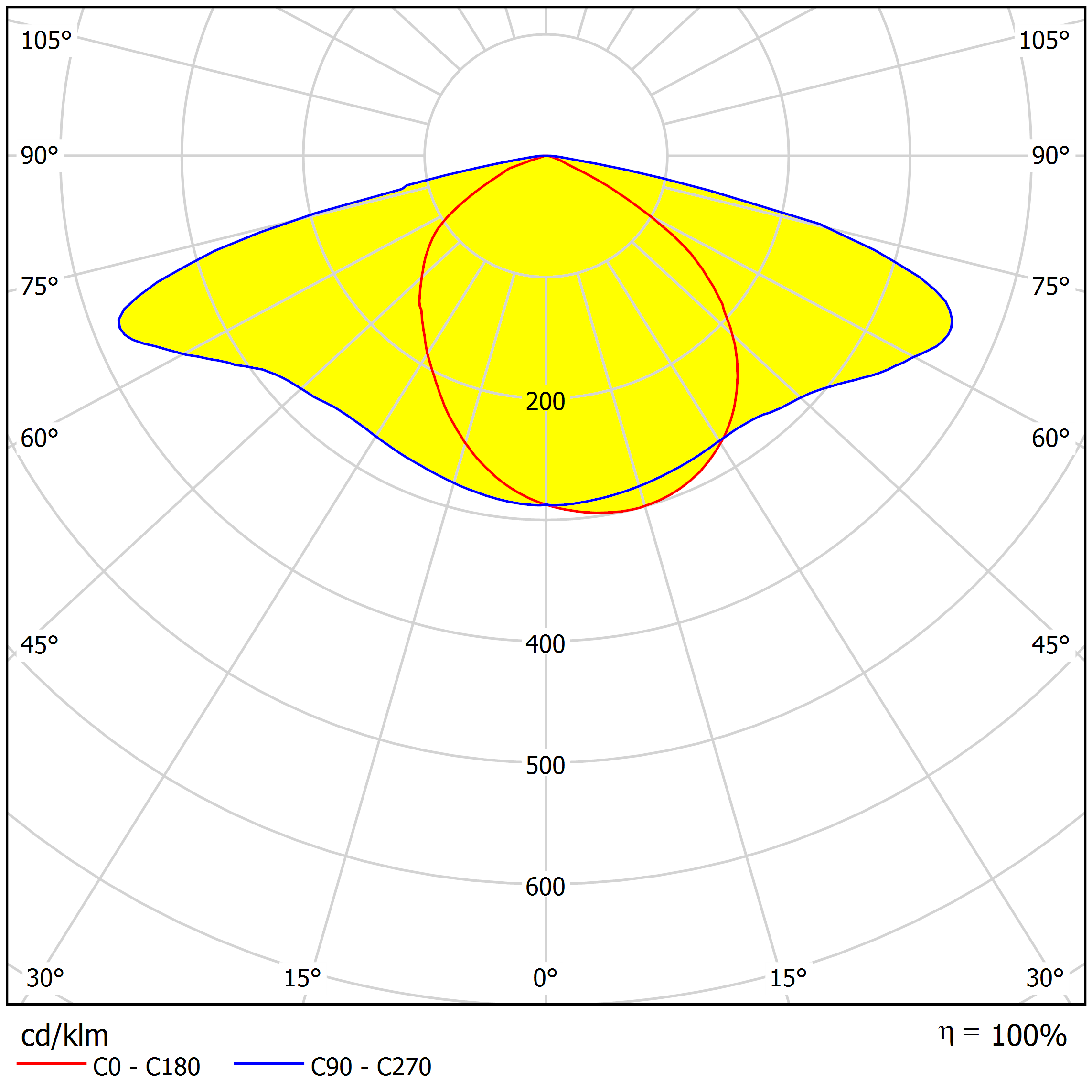

Distribution

Specifications

Model:	ARST50D10LEDT2MCUT-OFF
Diameter:	50x50mm
Height:
Angle:	T2M-cutoff
Material：	PMMA
Transmittance：	＞93%
LED Applications	5050LED
Lighting applications	Street Lighting

LED Type

JR5005C 6-V E

DURIS S 8

LUXEON 5050 Square

NVAW144AR

NVAW144AM

Xl5050LED

EMC5050LED

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

Application:

The 10 in 1 lens modules with standardized square-shaped 50x50mm footprint and common LED positioning amongst the lenses.

Feature of street lighting lens:

Street lighting lenses are specifically designed lenses used in street lighting fixtures to control the distribution of light and optimize its performance for outdoor illumination.

Street lighting lenses are designed to distribute the light in a specific pattern, usually with a focus on illuminating the roadways and sidewalks effectively.

Asahi Optics ARST50D12LEDT2MCUT-OFF drawing.dwg

Asahi Optics ARST50D12LEDT2MCUT-OFF drawing.pdf

Asahi Optics ARST50D12LEDT2MCUT-OFF .ies
