Model: AJST236D28LED80150G
Diameter: 236x70mm
Height: 6.6mm
Angle: 80x150°
Material: PC-1250Z TEIJIN
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting, Area Lighting
1.The 80x150° beam angle means that the lens is designed to produce a rectangular-shaped beam of light, with a wider spread horizontally at 80° and a narrower spread vertically at 150°.
2.This beam angle is commonly used in street lighting applications as it provides a good balance between horizontal coverage and vertical light distribution, effectively illuminating the road and surrounding areas.
3. The 28LEDs lens for street lighting with an 80x150° beam angle is designed to provide effective illumination for a wide area while also minimizing light spillage and glare.

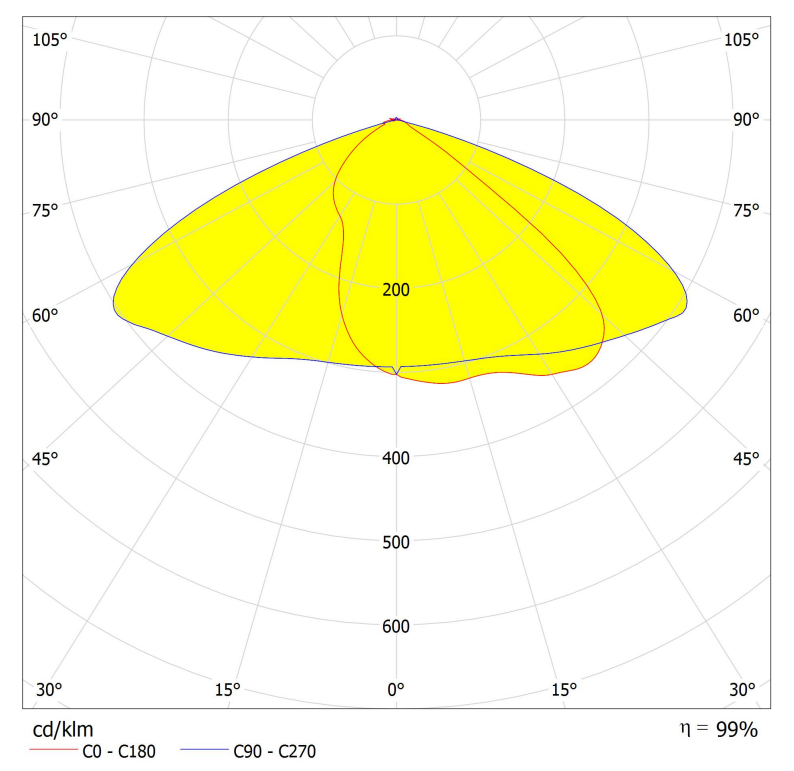

Distribution
Specifications
| Model: | AJST236D28LED80150G |
| Diameter: | 236x70mm |
| Height: | 6.6mm |
| Angle: | 80x150° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

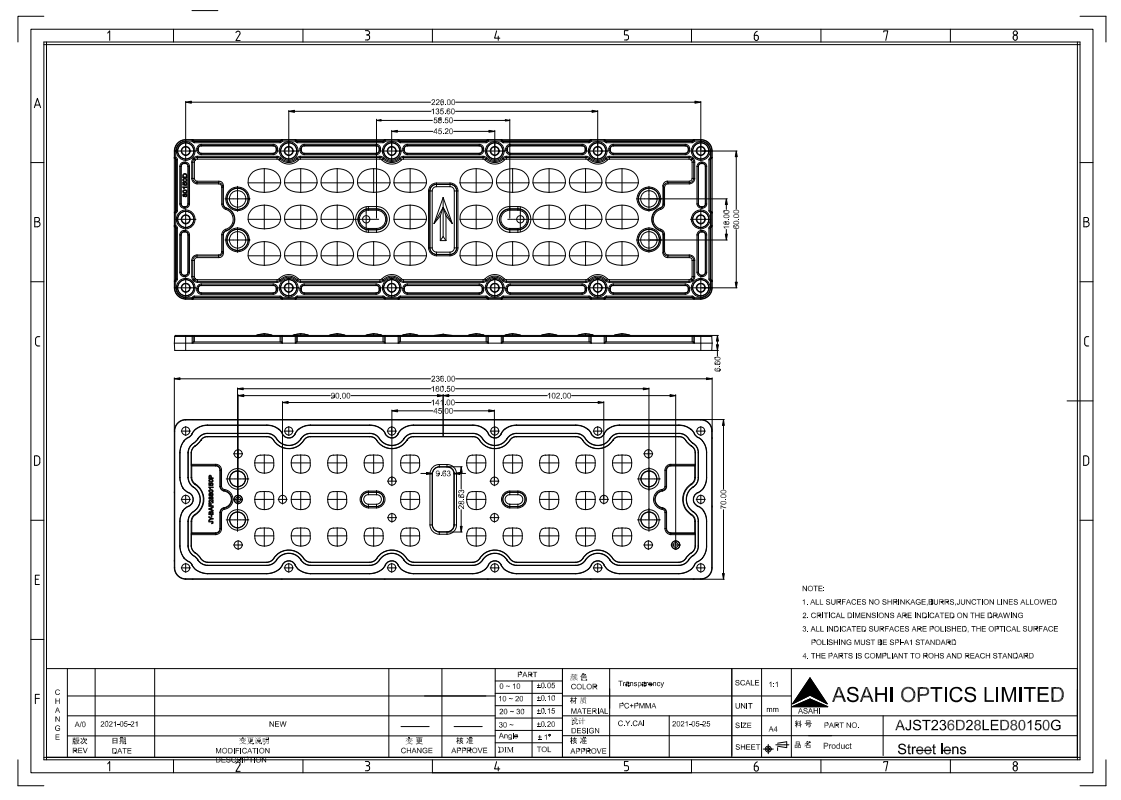

Asahi Optics AJST236D28LED80150G Drawing.dwg
Asahi Optics AJST236D28LED80150G Drawing.pdf
Asahi Optics AJST236D28LED80150G.ies
Asahi Optics AJST236D28LED80150G PCB Drawing.dwg
Asahi Optics AJST236D28LED80150G PCB Drawing.pdf
