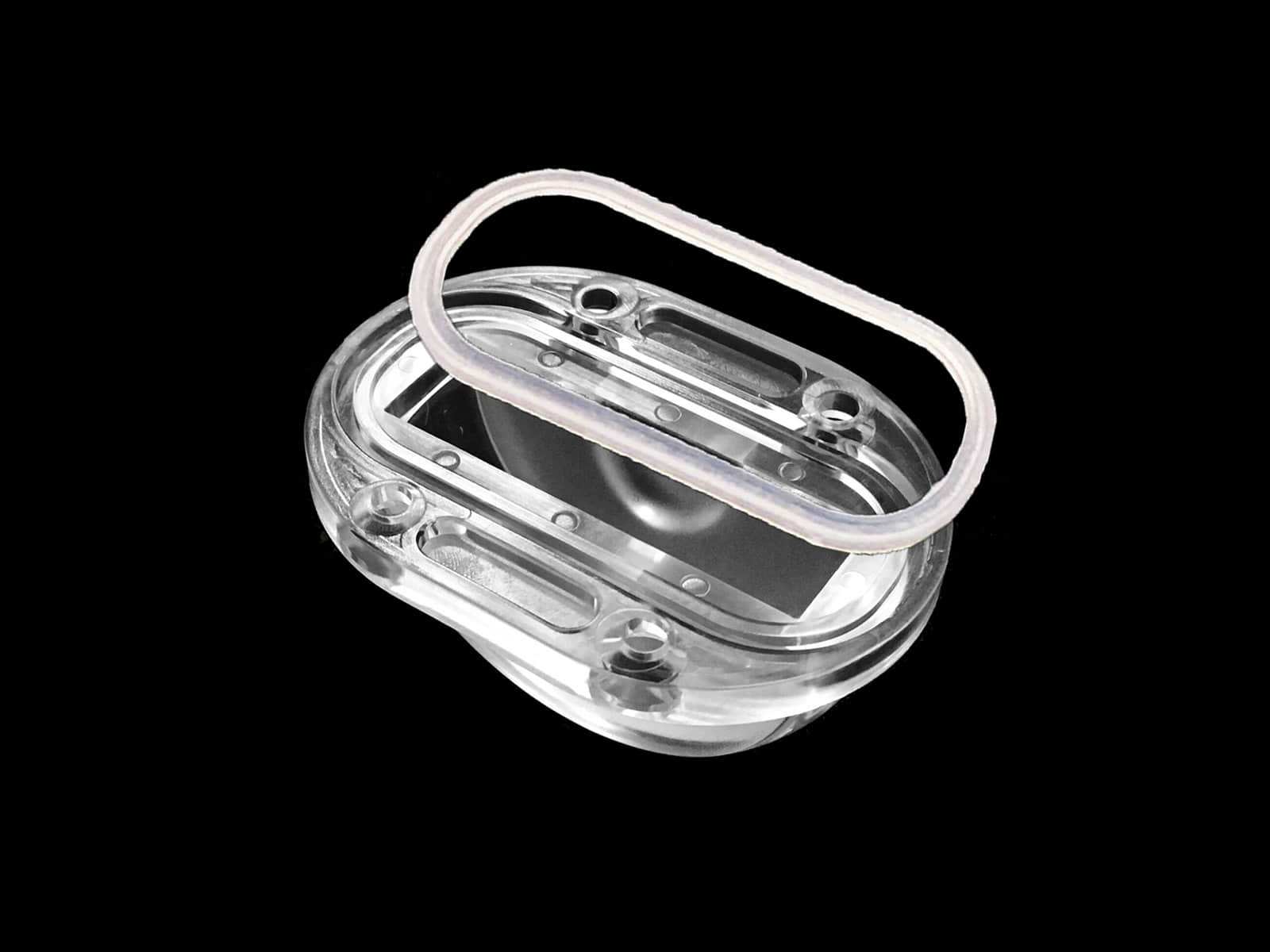

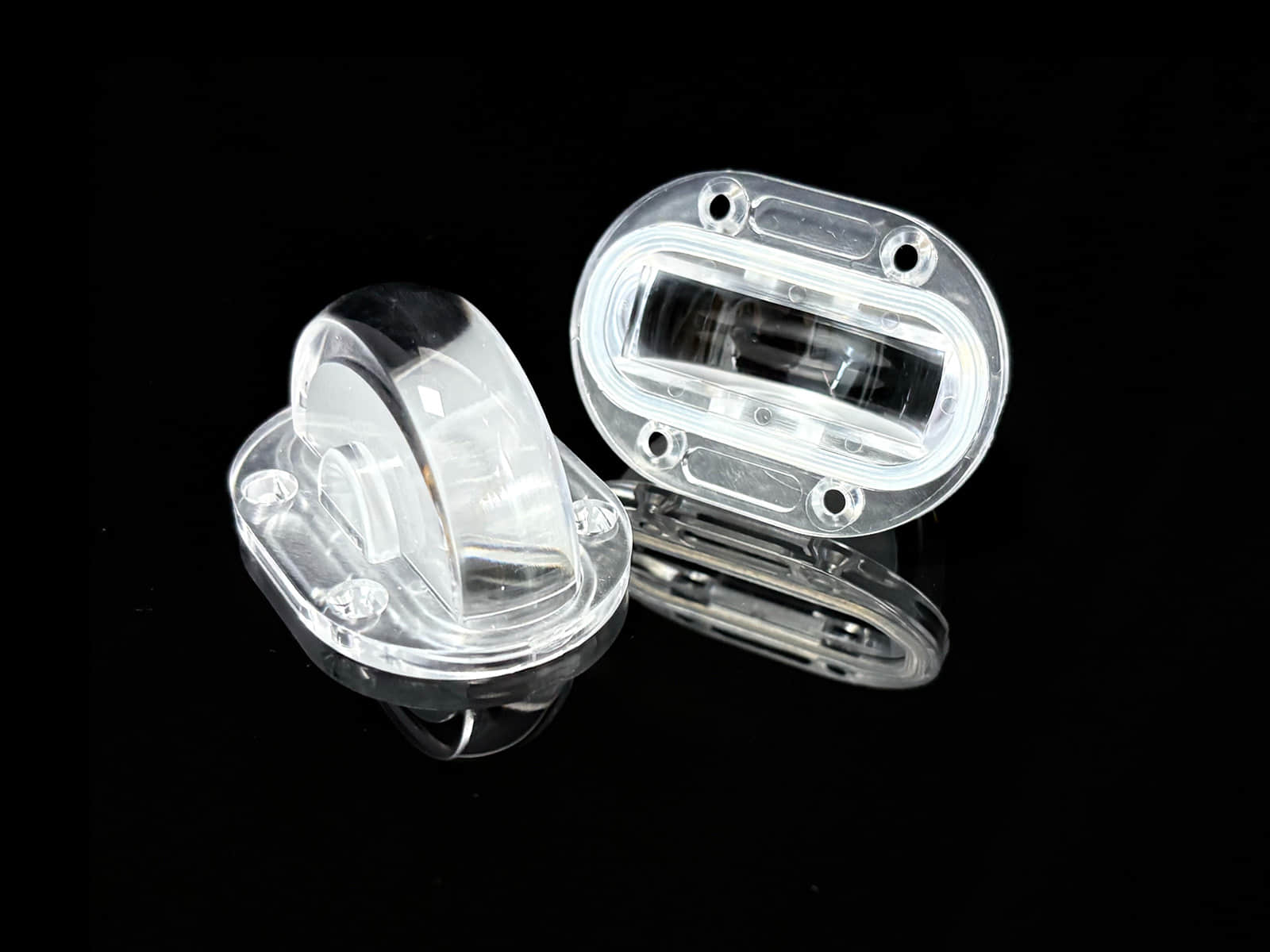

Model: AML55D31H5180G
Size: 55x40(mm)
Height: 31.12mm
Angle: 10x90°
Material: PC
Transmittance: >90%
LED Type: 2835, 3030, 5050LED
Lighting Applications: Wall Washer Light, Windowsill light, Architecture Lighting

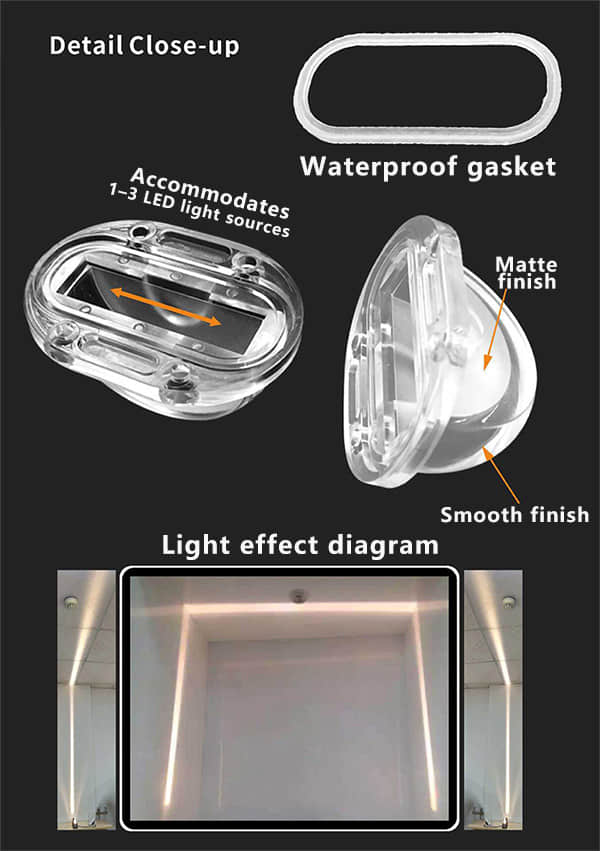

1. Adopts a 5°×180° asymmetric stretched light distribution, producing an ultra-long linear beam that precisely illuminates windowsills, eaves, and building facades with uniform coverage and no dark spots.
2. Designed for windowsill lights and architectural lighting, compatible with 2835/3030/5050 LEDs.

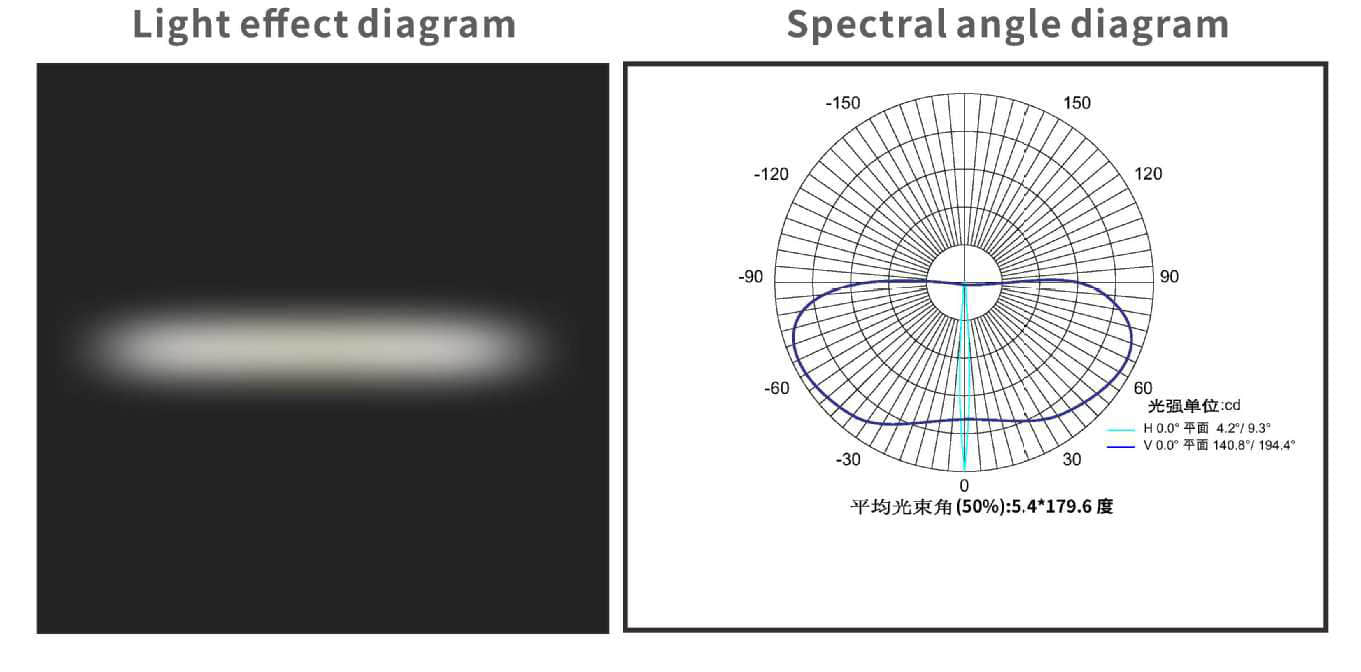

Distribution

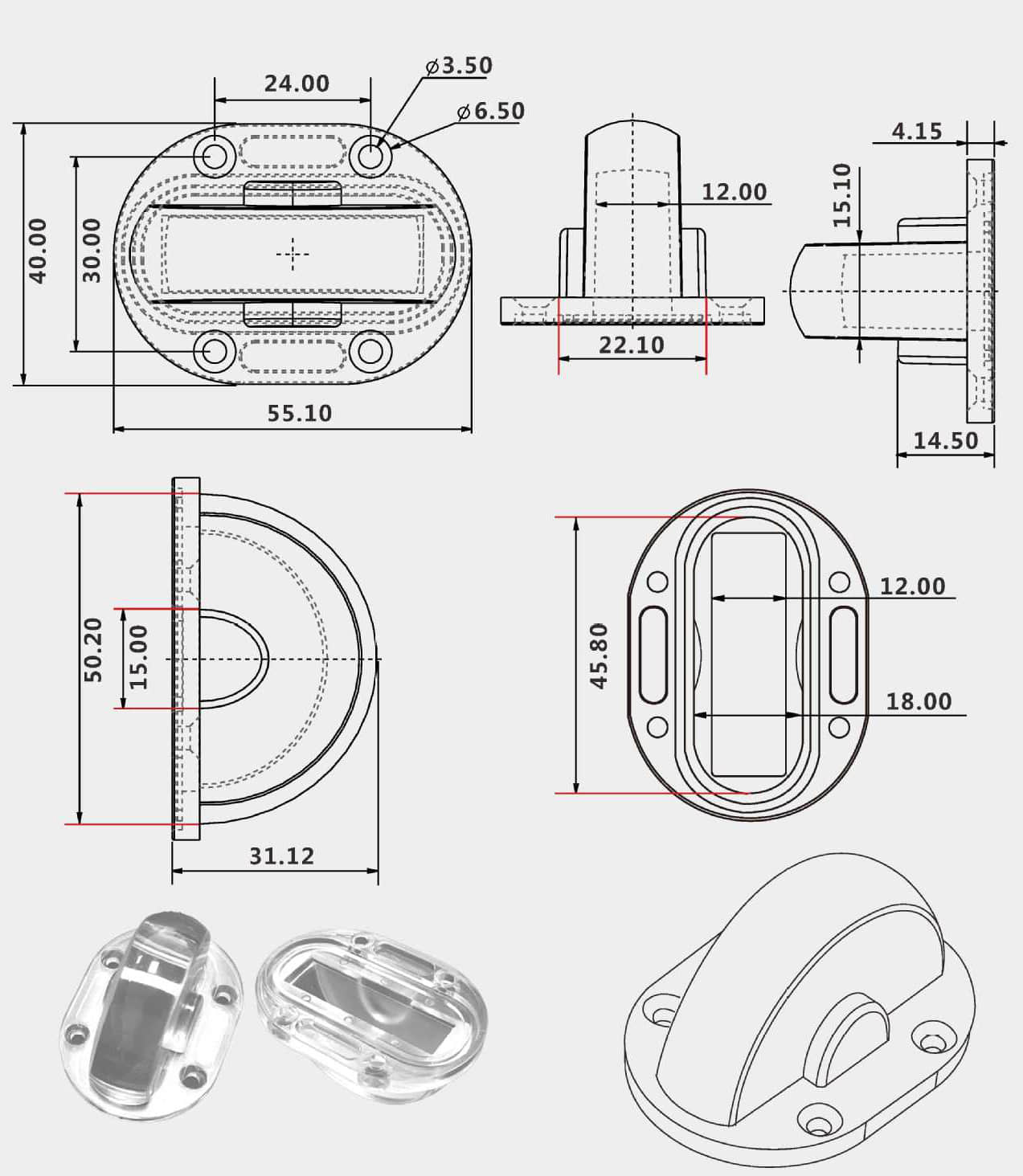

Specifications
| Model: | AML55D31H5180G |
| Size: | 55x40(mm) |
| Height: | 31.12mm |
| Angle: | 5x180° |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 2835, 3030, 5050LED |
| Lighting applications | Wall Washer Light, Windowsill light, Architecture Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
