Model: ALS286D61H33LEDT90G
Diameter: 286mm
Height: 61mm
Angle: 90°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting, Office Lighting

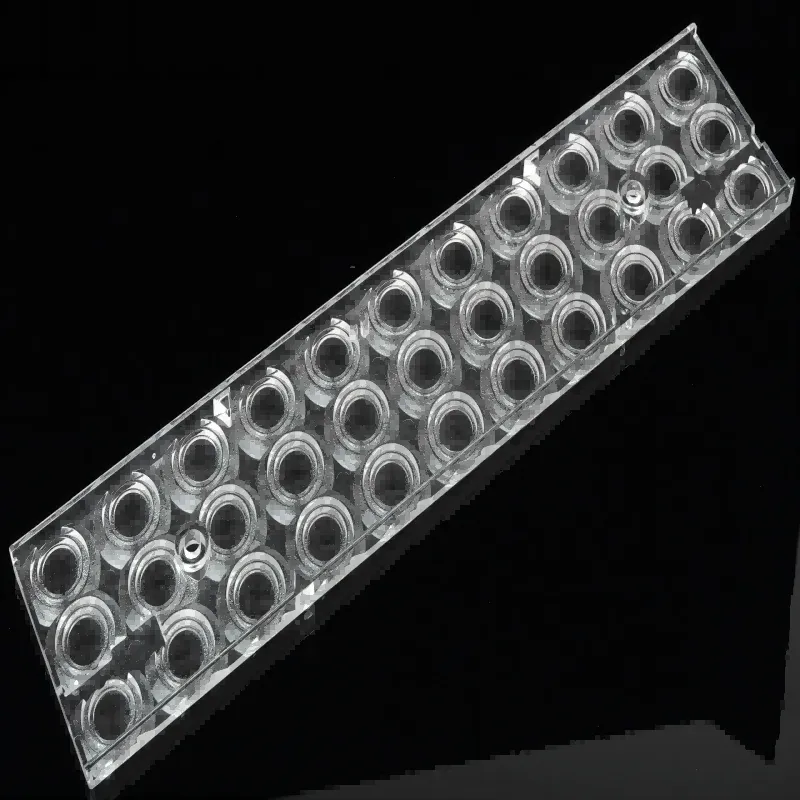

1. The 3-row linear lens is engineered to provide uniform and efficient light distribution. With its unique design, it effectively spreads and directs light across a wide area, minimizing dark spots or uneven illumination. This characteristic makes it suitable for applications that require consistent and well-distributed lighting.
2. This 33LED linear lens offers precise beam control, allowing for accurate light direction and focusing. It enables designers to shape the light beam according to specific requirements, whether it's achieving a narrow spotlight or a wider floodlight effect. This versatility makes it ideal for applications that demand controlled and directed lighting.
3. This linear lens incorporates anti-glare features to minimize discomfort caused by excessive brightness or glare. It effectively diffuses light and reduces the direct line of sight to the light source, resulting in enhanced visual comfort. This characteristic is especially valuable in indoor lighting applications where glare can be a significant concern.
Specifications
| Model: | ALS286D61H33LEDT90G |
| Diameter: | 286mm |
| Height: | 61mm |
| Angle: | 90° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835LED,3030LED |
| Lighting applications | Linear Lighting, Office Lighting |
